Low pressure die casting (LPDC) is a sophisticated manufacturing process that utilizes low pressure to fill molds with molten metal, primarily aluminum and magnesium. This method is particularly advantageous for producing high-quality components with intricate designs and excellent mechanical properties. In this article, we will explore the fundamentals of low pressure die casting, its advantages, applications, and the process involved in detail.
Low pressure die casting is a process where molten metal is injected into a mold under low pressure, typically ranging from 0.5 to 1.5 bar. This technique contrasts with traditional gravity die casting, where the metal flows into the mold solely under the influence of gravity. The low pressure used in LPDC allows for a more controlled filling of the mold, reducing the likelihood of defects such as air pockets and ensuring a more uniform distribution of the molten metal. This method is particularly beneficial for producing complex shapes and thin-walled components, which are increasingly demanded in modern manufacturing.
The LPDC process involves several key steps:

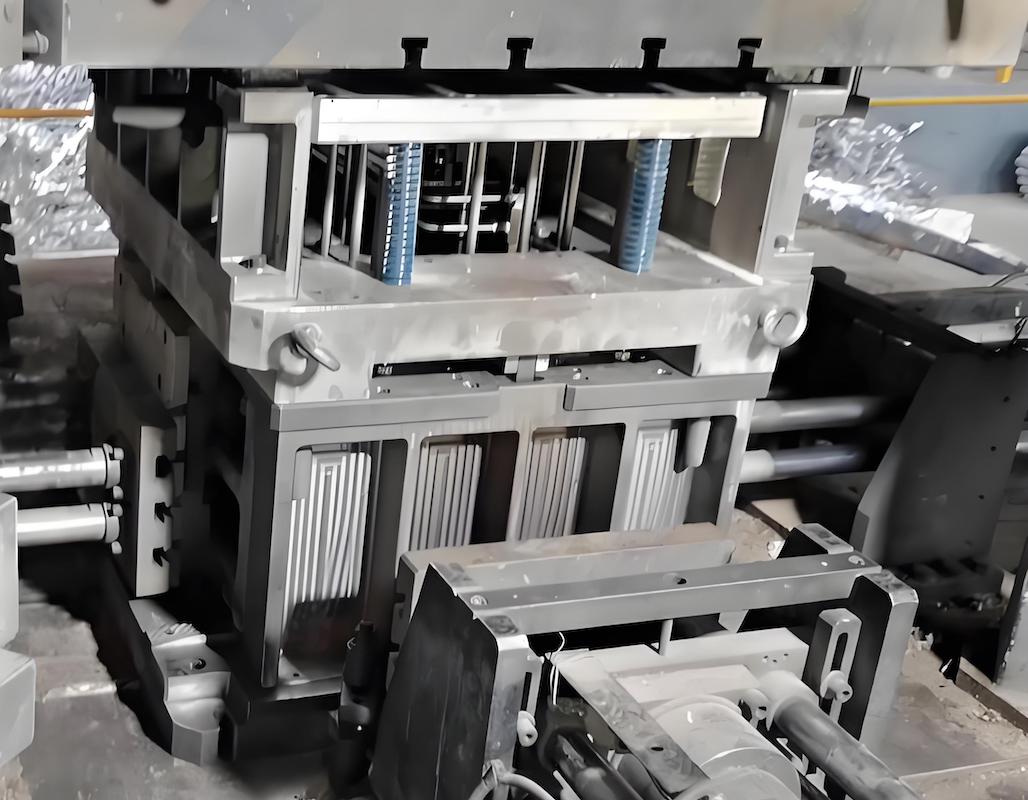

Preparation of the Mold: The mold, usually made of steel, is preheated to a specific temperature to facilitate the flow of molten metal and to prevent it from sticking to the mold surfaces. A release agent is often applied to further assist in the demolding process. The design of the mold is critical, as it must accommodate the thermal expansion of the metal and allow for efficient cooling.
Melting the Metal: The metal is melted in a furnace and then transferred to a holding chamber. This chamber is connected to the mold through a system of runners and gates. The melting process must be carefully controlled to ensure that the metal reaches the appropriate temperature without degrading its properties. The choice of alloy can also influence the melting temperature and the characteristics of the final product.
Filling the Mold: Once the metal reaches the desired temperature, low pressure is applied to the holding chamber. This pressure forces the molten metal into the mold cavity from the bottom up, ensuring that the metal fills all areas of the mold efficiently. The controlled filling process minimizes turbulence, which can lead to defects, and allows for better control over the flow rate and filling time.
Cooling and Solidification: After the mold is filled, the molten metal is allowed to cool and solidify. The cooling time can vary depending on the thickness of the casting and the material used. Proper cooling is essential to achieve the desired mechanical properties and to prevent warping or cracking during solidification. Advanced cooling techniques, such as the use of cooling channels within the mold, can enhance the cooling rate and improve the quality of the casting.
Ejection of the Casting: Once the metal has solidified, the mold is opened, and the casting is ejected. The use of ejector pins helps in removing the casting without damaging it. The design of the ejection system is crucial, as it must ensure that the casting is released cleanly and without defects.
Finishing Operations: After ejection, the cast part may undergo various finishing processes such as machining, surface treatment, or inspection to meet specific quality standards. These finishing operations are vital for achieving the final dimensions and surface quality required for the application. Techniques such as shot blasting, polishing, or anodizing can enhance the appearance and corrosion resistance of the castings.
One of the primary benefits of low pressure die casting is the high level of precision it offers. The controlled filling process minimizes turbulence and air entrapment, resulting in castings with excellent surface finish and dimensional accuracy. This precision is crucial for applications in industries such as automotive and aerospace, where tolerances are critical. The ability to produce complex geometries with tight tolerances reduces the need for extensive machining, leading to cost savings and shorter lead times.
The low pressure used in this casting method significantly reduces the occurrence of common defects associated with high-pressure casting, such as porosity and shrinkage. The gradual filling of the mold allows for better gas escape, leading to denser and stronger castings. This reduction in defects not only improves the mechanical properties of the castings but also enhances their reliability in critical applications. Manufacturers can achieve higher yields and lower scrap rates, contributing to overall efficiency in production.
While the initial setup costs for low pressure die casting can be higher than other methods, the long-term benefits often outweigh these costs. The durability of the molds used in LPDC allows for a high number of cycles, making it a cost-effective solution for large production runs. Additionally, the reduced need for secondary operations and the high quality of the castings can lead to significant savings over time. As production volumes increase, the cost per unit decreases, making LPDC an attractive option for manufacturers.
Low pressure die casting is suitable for producing complex geometries and intricate designs. This versatility allows manufacturers to create lightweight components that do not compromise on strength, making it ideal for modern engineering applications. The ability to incorporate features such as ribs, bosses, and intricate patterns into the design can enhance the functionality of the final product. This design flexibility is particularly valuable in industries where innovation and customization are key competitive factors.

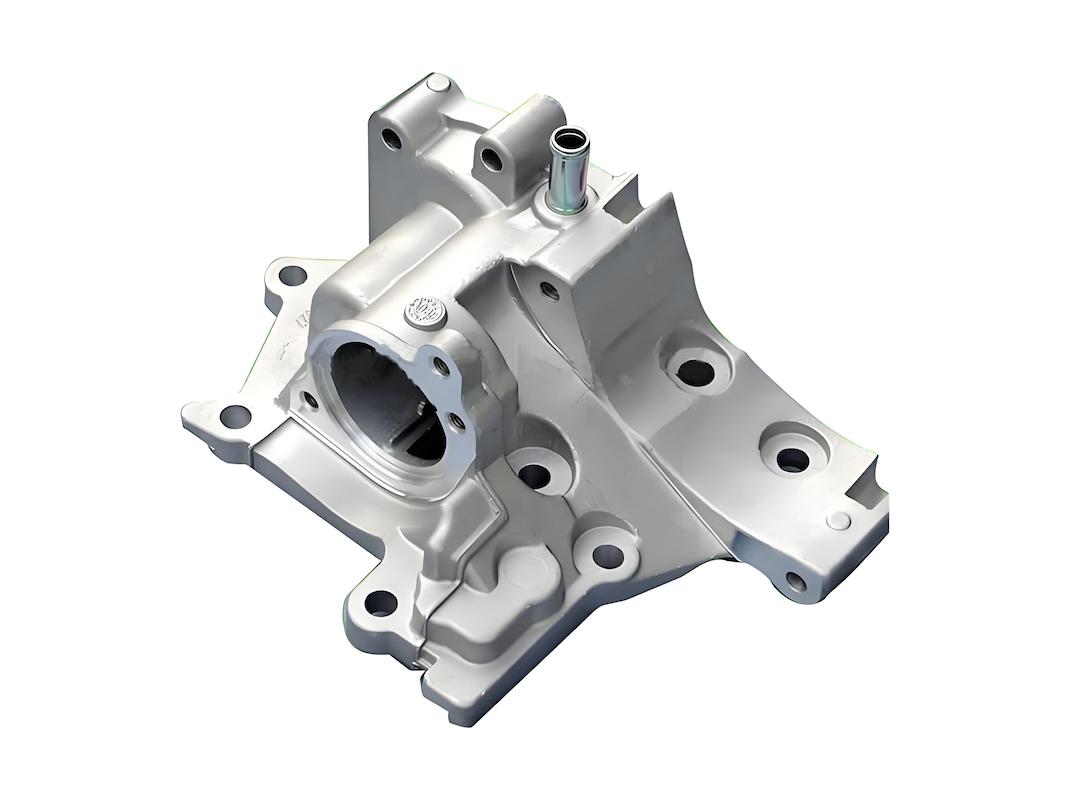

The automotive sector is one of the largest users of low pressure die casting. Components such as engine blocks, transmission cases, and wheels are commonly produced using this method. The ability to create lightweight yet strong parts contributes to improved fuel efficiency and performance in vehicles. As the automotive industry increasingly focuses on reducing emissions and enhancing performance, LPDC plays a vital role in the development of advanced vehicle components that meet these demands.
In aerospace applications, where weight reduction is critical, low pressure die casting is employed to manufacture components such as brackets, housings, and structural parts. The high strength-to-weight ratio of LPDC castings makes them suitable for demanding aerospace environments. The aerospace industry requires components that can withstand extreme conditions, and the reliability of LPDC castings ensures that they meet stringent safety and performance standards.
Low pressure die casting is also utilized in the production of housings and structural components for consumer electronics. The precision and finish of LPDC castings enhance the aesthetic appeal and functionality of electronic devices. As consumer electronics continue to evolve, the demand for lightweight and durable components increases, making LPDC an ideal choice for manufacturers looking to innovate and differentiate their products in a competitive market.
Various industrial equipment components, including pumps, valves, and fittings, are manufactured using low pressure die casting. The durability and reliability of these castings are essential for the efficient operation of industrial machinery. In industries such as oil and gas, construction, and manufacturing, the performance of equipment is critical, and LPDC provides the strength and integrity needed for these applications.
While both low pressure and high pressure die casting are used to produce metal parts, they differ significantly in their processes and applications. High pressure die casting involves injecting molten metal into a mold at much higher pressures, which can lead to faster production rates but may also result in more defects. Low pressure die casting, on the other hand, offers better control over the filling process, leading to higher quality castings with fewer defects. The choice between these methods often depends on the specific requirements of the application, including production volume, complexity, and material properties.
Gravity die casting relies on gravity to fill the mold, which can result in slower production rates and a higher likelihood of defects. In contrast, low pressure die casting provides a more controlled filling process, reducing the risk of air entrapment and ensuring a more uniform distribution of the molten metal. The advantages of LPDC make it a preferred choice for applications requiring high precision and quality, while gravity die casting may still be suitable for simpler designs and lower production volumes.
As technology continues to evolve, low pressure die casting is expected to benefit from advancements in automation and process control. The integration of smart manufacturing technologies, such as IoT and AI, will enhance the efficiency and precision of the LPDC process. These technologies can provide real-time monitoring and feedback, allowing manufacturers to optimize their processes and reduce waste. Additionally, advancements in simulation software can improve mold design and process planning, further enhancing the capabilities of LPDC.
With increasing emphasis on sustainability, the low pressure die casting industry is exploring ways to reduce energy consumption and waste. Innovations in materials and processes are being developed to create more environmentally friendly casting solutions. For instance, the use of recycled materials and the implementation of energy-efficient melting techniques can significantly reduce the environmental impact of LPDC. As consumers and regulatory bodies demand more sustainable practices, manufacturers will need to adapt to these changes to remain competitive.
The versatility of low pressure die casting is likely to lead to its adoption in new industries and applications. As manufacturers seek lightweight and high-strength components, LPDC will play a crucial role in meeting these demands. Emerging sectors such as renewable energy, electric vehicles, and advanced manufacturing technologies present new opportunities for LPDC. The ability to produce complex and efficient components will be essential in supporting the growth of these industries.
Low pressure die casting is a highly effective manufacturing process that offers numerous advantages, including high precision, reduced defects, and versatility in design. Its applications span various industries, from automotive to aerospace, making it a vital technique in modern manufacturing. As technology advances and sustainability becomes a priority, low pressure die casting is poised for continued growth and innovation in the years to come. The ongoing development of new materials, processes, and applications will ensure that LPDC remains a key player in the future of manufacturing, driving efficiency and quality in the production of metal components.
Low pressure die casting primarily uses aluminum and magnesium alloys due to their excellent fluidity, lightweight properties, and good mechanical strength. Other materials, such as zinc and copper alloys, can also be used depending on the specific application requirements.
Low pressure die casting offers higher precision and better surface finish compared to sand casting. While sand casting is suitable for larger, less complex parts and can be more cost-effective for low-volume production, LPDC is preferred for high-volume production of intricate designs with tighter tolerances.
Low pressure die casting is widely used in the automotive industry for components like engine blocks and transmission cases, in aerospace for structural parts, in consumer electronics for housings, and in industrial equipment for valves and fittings.
The main advantages of low pressure die casting include high precision and quality, reduced defects, cost-effectiveness for large production runs, and versatility in design, allowing for the production of complex geometries and lightweight components.
Environmental considerations in low pressure die casting include the potential for energy-efficient processes, the use of recycled materials, and the reduction of waste. Manufacturers are increasingly focusing on sustainable practices to minimize the environmental impact of their operations.
