Machining Temperature Control Systems Maintaining Dimensional Stability During Extended Production Cycles

Introduction

Picture a bustling machine shop, where the hum of CNC machines fills the air, and precision parts are crafted for everything from jet engines to car engines. In this world, even a tiny error in a part's dimensions can spell disaster—think scrapped batches or, worse, faulty components in critical applications. One major culprit behind these errors is heat. When machines cut, grind, or mill materials for hours on end, temperatures climb, causing tools to wear, workpieces to expand, and machine beds to warp. These thermal shifts can throw off tolerances by mere micrometers, but in high-stakes manufacturing, that's enough to ruin a production run. Machining temperature control systems are the unsung heroes here, keeping heat in check to ensure parts stay within spec over long cycles.

This article dives into the nuts and bolts of how these systems work, why they're essential, and how they're applied in real-world settings. We'll explore the science of heat in machining, break down the main types of cooling systems, and share practical examples from industries like aerospace and automotive. Along the way, we'll look at cutting-edge technologies like sensors and machine learning that are changing the game. The goal is to give manufacturing engineers, shop managers, and researchers a clear, hands-on guide to tackling thermal challenges, grounded in real data and industry practices. By the end, you'll know how to keep your production line humming smoothly, no matter how long the run.

Understanding Thermal Effects in Machining

How Heat Builds Up

When a cutting tool slices through metal, it's not just shaping the material—it's generating heat. This comes from two main sources: friction between the tool and workpiece and the energy released as the material deforms. In high-speed machining, like milling titanium for aerospace parts, temperatures at the cutting zone can soar past 1000°C. That's hot enough to cause serious problems if left unchecked.

Every material expands when heated, following its coefficient of thermal expansion (CTE). For example, aluminum expands by about 23.6 micrometers per meter for every degree Celsius it heats up. In precision machining, where tolerances are often tighter than 10 micrometers, a small temperature spike can push a part out of spec. Heat doesn't just affect the workpiece—it also wears down tools, changing their shape and dulling their edges, which can mess with surface quality. Over hours of continuous machining, these issues stack up, leading to inconsistent parts and costly rejections.

Real-World Consequences

Take an aerospace manufacturer making Inconel turbine blades. During a 12-hour run, unchecked heat caused the spindle to warm up, leading to a 15-micrometer drift in blade thickness. The result? Nearly a third of the batch was scrapped, costing thousands in materials and time. Or consider an automotive plant turning steel crankshafts. After six hours, thermal expansion in the machine bed caused a 20-micrometer error in journal diameters, forcing a production halt to recalibrate. These examples show why controlling temperature isn't just a technical detail—it's a make-or-break factor for quality and efficiency.

Types of Machining Temperature Control Systems

Flood Cooling: The Classic Approach

Flood cooling is the go-to method in many shops. It involves pumping a steady stream of coolant—usually a mix of water and oil—over the cutting zone. The coolant soaks up heat, reduces friction, and washes away metal chips, keeping the tool and workpiece stable.

Example 1: Crankshaft TurningA study in the Journal of Materials Processing Technology looked at flood cooling in high-speed turning of steel crankshafts. Using a 5% oil-in-water mix at 10 liters per minute, the setup cut temperatures by 40%, holding tolerances to within 5 micrometers over eight hours. This kept production on track and parts in spec.

Example 2: Aluminum Engine BlocksAn automotive manufacturer milling aluminum engine blocks used a high-pressure flood system (70 bar). It kept workpiece temperatures below 50°C during a 10-hour run, ensuring hole diameters stayed within 10 micrometers. The bonus? Tool life jumped by 25% compared to dry machining.

Flood cooling works well but isn't perfect. It's messy, uses tons of coolant, and can be a headache to dispose of properly. Pick the wrong coolant, and you risk corrosion or clogged chips, which can hurt surface finish.

Minimum Quantity Lubrication (MQL): Less is More

MQL takes a leaner approach, spraying a fine mist of oil—often eco-friendly types like vegetable-based lubricants—mixed with air into the cutting zone. It uses just 10-100 ml of fluid per hour, making it cleaner and cheaper than flood cooling while still reducing friction and heat.

Example 1: Titanium DrillingResearch in the Journal of Manufacturing Processes tested MQL in drilling titanium for aerospace parts. A vegetable-based oil mist at 50 ml/hour dropped cutting temperatures by 30% compared to dry drilling, keeping hole sizes within 8 micrometers over six hours. It also cut tool wear by 20%, saving on drill replacements.

Example 2: Steel Gear MillingA German auto plant used MQL for high-speed milling of steel gears. With a synthetic ester lubricant at 30 ml/hour, spindle temperatures stayed within a 5°C range over 12 hours. The result was a 15% better surface finish and 10-micrometer accuracy in gear dimensions.

MQL shines for its low environmental footprint, but it's not as effective at cooling as flood systems, so it struggles with heavy-duty tasks like deep milling or grinding.

Cryogenic Cooling: Extreme Cold for Tough Jobs

Cryogenic cooling uses ultra-cold fluids like liquid nitrogen (-195.8°C) or CO2 to chill the cutting zone. It's a powerhouse for high-heat materials like titanium or Inconel, where other methods fall short.

Example 1: Inconel TurningA study in the Chinese Journal of Mechanical Engineering explored cryogenic cooling in turning Inconel 718. Liquid nitrogen slashed temperatures by 60% compared to flood cooling, holding dimensional errors to 5 micrometers over 10 hours and boosting tool life by 50%.

Example 2: Titanium MillingAn aerospace shop milling titanium airframe parts used CO2-based cryogenic cooling. It kept cutting zone temperatures below 100°C, maintaining 7-micrometer accuracy over a 15-hour run. The parts also had 30% smoother surfaces, a big win for quality.

Cryogenic systems are highly effective but pricey, needing specialized gear and safety protocols. They're best for high-value jobs where precision trumps cost.

Machine Structure Cooling: Keeping the Machine Stable

Heat doesn't just affect the tool and workpiece—it can warp the machine itself. Spindles, beds, and guideways expand when hot, throwing off alignment. Machine structure cooling uses fluids or air to keep these components steady.

Example 1: CNC Bed CoolingA Swiss precision shop installed a water-cooling system in a CNC milling machine's bed. By holding the bed at 20°C ± 0.5°C, they cut thermal drift by 50%, keeping tolerances within 3 micrometers over 24 hours.

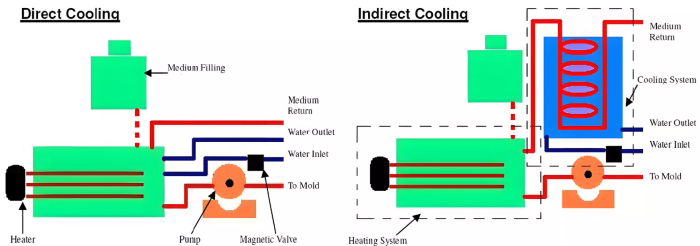

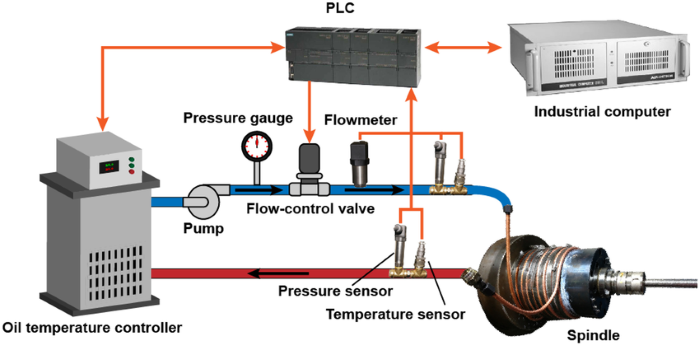

Example 2: Spindle CoolingA Journal of Manufacturing Systems study used an oil-based system to cool a high-speed machining center's spindle. It limited thermal expansion to 2 micrometers, ensuring consistent dimensions over a 16-hour run.

This approach is critical for ultra-precise work but adds complexity to machine design and maintenance.

Advanced Technologies in Temperature Control

Sensors for Real-Time Control

Today's cooling systems often use sensors like thermocouples or infrared cameras to monitor temperatures in the cutting zone, tool, and machine. These feed data to control systems that tweak coolant flow or machine settings on the fly.

Example: Gear GrindingA gear manufacturer used infrared sensors to track temperatures during a 20-hour grinding cycle. The system adjusted coolant flow to keep temperature swings within ±2°C, holding gear tooth tolerances to 4 micrometers and boosting yield by 15%, as noted in the Journal of Intelligent Manufacturing.

Machine Learning: Smarter Cooling

Machine learning (ML) is changing how shops manage heat. By analyzing past data on temperatures, tool wear, and part sizes, ML can predict problems and fine-tune cooling before issues arise.

Example: Aluminum ExtrusionA Journal of Materials Processing Technology study used ML to optimize MQL in aluminum extrusion machining. The model predicted temperature spikes based on cutting speed and depth, adjusting flow to keep dimensions within 6 micrometers over 12 hours.

Digital Twins: Virtual Precision

Digital twins—virtual models of machines—simulate heat flow and predict distortions, letting shops adjust cooling in real time. They're like a crystal ball for thermal management.

Example: Aerospace MillingAn aerospace firm used a digital twin for a 5-axis CNC machine milling titanium. The twin tweaked cryogenic cooling settings, keeping errors below 5 micrometers over 24 hours, as reported in the Journal of Manufacturing Systems.

Practical Steps for Implementation

Picking the Right System

Choosing a cooling system depends on your material and process. For soft metals like aluminum, MQL or flood cooling often does the trick. For tough alloys like titanium, cryogenic cooling is worth the investment. For ultra-precision, add machine structure cooling.

Tip: Run a thermal analysis to pinpoint heat sources and their impact. This helps you choose a system that balances cost, performance, and sustainability.

Fine-Tuning Coolant Delivery

Getting coolant to the right spot is key. High-pressure systems or adjustable nozzles can make a big difference. In MQL, aiming the mist at the tool's rake face maximizes cooling and lubrication.

Tip: Check coolant systems regularly for consistent flow and pressure. Use tools like computational fluid dynamics to optimize nozzle setups.

Adding Smart Tech

Sensors and ML can create a system that adapts to changes like tool wear or material shifts. Start small with a pilot on one machine to test and refine before going all-in.

Tip: Collect data from a test run to train your algorithms, then scale up to keep performance steady across long cycles.

Challenges and What's Next

Hurdles to Overcome

1. Cost vs. Payoff: Cryogenic systems and smart tech are expensive, which can be tough for shops with tight budgets.

2. Environmental Concerns: Flood cooling creates a lot of waste, while MQL and cryogenics need careful handling to stay green.

3. Complexity: Adding sensors or digital twins requires know-how and infrastructure, which smaller shops may lack.

The Road Ahead

The future is about automation and eco-friendly solutions. AI-driven cooling will predict and prevent issues, cutting downtime. Biodegradable coolants and recycling systems will reduce waste. Hybrid approaches—mixing MQL, cryogenic, and machine cooling—will tackle tough jobs with precision.

Conclusion

Keeping parts precise over long production runs is a cornerstone of modern manufacturing. Temperature control systems—flood cooling, MQL, cryogenic, or machine structure cooling—are the backbone of this effort, preventing heat from throwing off dimensions, wearing tools, or warping machines. Real-world cases, from turbine blades to crankshafts, show how these systems deliver tighter tolerances, longer tool life, and better yields. New tools like sensors, machine learning, and digital twins are making cooling smarter and more efficient.

As demands for precision and sustainability grow, temperature control will only get more critical. By understanding heat's impact, choosing the right system, and embracing new tech, shops can stay competitive. Whether you're machining one-off prototypes or running a round-the-clock line, controlling temperature is the key to reliable, high-quality output.

Questions and Answers

• What causes heat buildup in machining?
  Heat comes mainly from friction between the tool and workpiece and the energy of material deformation. In high-speed machining, like titanium milling, temperatures can exceed 1000°C, causing expansion and tool wear.

• How does MQL compare to flood cooling for the environment?
  MQL uses minimal oil (10-100 ml/hour), reducing waste compared to flood cooling, which needs liters of coolant. MQL’s eco-friendly oils make it greener, though disposal still requires care.

• Why use cryogenic cooling for tough alloys?
  Cryogenic cooling, with liquid nitrogen or CO2, hits ultra-low temperatures (e.g., -195.8°C), taming the extreme heat from machining alloys like titanium or Inconel, where other methods struggle.

• How does machine learning help with temperature control?
  ML predicts heat spikes using data on cutting conditions and adjusts cooling, like MQL flow, to keep dimensions tight, as shown in aluminum extrusion studies maintaining 6-micrometer accuracy.

• What makes digital twins challenging to implement?
  Digital twins need hefty computing power, modeling expertise, and integration with shop systems, which can be costly and complex, especially for smaller operations.
