In manufacturing facilities worldwide, precision components like turbine blades, automotive engine blocks, and medical implants are machined to tolerances finer than a human hair. These parts often feature complex geometries—think intricate gear teeth, precisely positioned bores, or micro-scale threads—where even a slight deviation can lead to performance failures or safety risks. Industries such as aerospace, automotive, and medical device manufacturing demand uncompromising dimensional accuracy to ensure reliability and compliance with stringent standards. Traditional inspection methods, such as offline coordinate measuring machines (CMMs) or manual gauges, often struggle to keep pace with the speed and complexity of modern production lines.

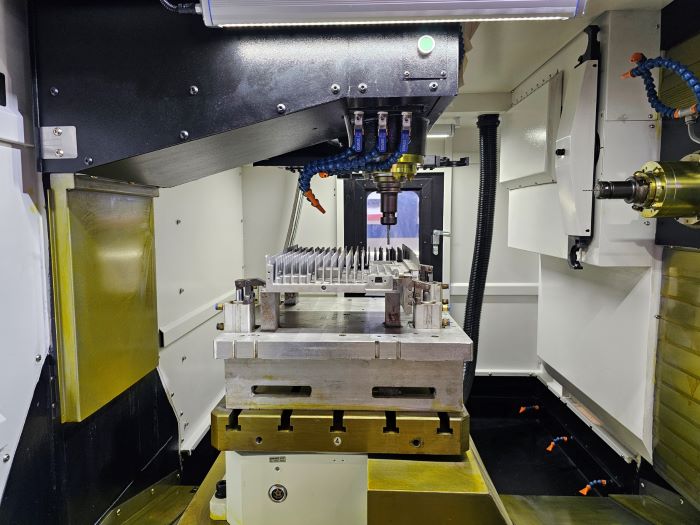

Inline gauge systems, which measure parts directly on the machine during production, have become essential for meeting these demands. By integrating technologies like machine vision, laser scanning, and tactile probes, these systems enable real-time dimensional verification, catching errors before they escalate into costly rework or scrap. This handbook provides a comprehensive guide for manufacturing engineers, detailing the technologies, applications, challenges, and future directions of inline gauging for multi-feature parts with tight tolerances. Drawing from recent research and practical examples, it offers actionable insights to enhance precision and efficiency in high-stakes production environments.
Inline gauge systems rely on a combination of advanced measurement technologies to verify dimensions in real time. This section explores four key approaches—machine vision, laser-based systems, tactile probes, and AI-driven analytics—highlighting their strengths and applications in multi-feature machining.
Machine vision employs high-resolution cameras and image-processing software to measure part features without physical contact. These systems are ideal for inspecting surface profiles, edge geometries, and complex features like slots or holes. For instance, a 2024 study in The International Journal of Advanced Manufacturing Technology described a vision-based system using a CMOS camera on a 5-axis CNC machine to inspect aerospace brackets. The system achieved measurement repeatability of ±5 µm by applying a remapping algorithm to process point cloud data from captured images.
In a practical example, an automotive gear manufacturer uses a machine vision system to verify tooth spacing and bore diameters on transmission gears. The system, integrated into the CNC machine's spindle, captures images during machining, with edge-detection algorithms analyzing features to ensure compliance with ±10 µm tolerances. This approach has reduced inspection times by approximately 20%, allowing continuous production without offline checks.
Laser-based systems, such as structured light scanners and triangulation sensors, use projected light patterns to create 3D point clouds of part surfaces. These systems excel at measuring complex geometries, such as curved turbine blades or lattice-structured implants. A 2025 article in Applied Sciences explored laser scanning for additive-manufactured parts, demonstrating how it verifies tolerances on intricate features by aligning point clouds with CAD models.
Consider a jet engine manufacturer producing turbine blades with airfoil tolerances of ±15 µm. A laser triangulation sensor, mounted on the machining center, scans each blade during production, generating a real-time 3D model. If the airfoil's curvature deviates, the system signals the CNC to adjust tool paths, reducing scrap rates by up to 15% in high-precision applications.
Tactile probes physically contact parts to measure features like hole depths, thread profiles, or surface flatness. Their robustness makes them suitable for environments where optical methods may falter, such as on reflective or rough surfaces. A 2024 study in The International Journal of Advanced Manufacturing Technology detailed a tactile probe system integrated into a 5-axis CNC machine, achieving ±2 µm accuracy for engine block features.
For example, a medical device manufacturer machining titanium bone screws uses a tactile probe to verify thread pitch and depth. The probe, mounted on the machine's spindle, measures each screw as it's machined, ensuring compliance with ISO 13485 standards. If a thread's major diameter deviates by more than ±5 µm, the system pauses production, preventing defective parts from advancing. This method has improved first-pass yield by 10% in similar setups.
Artificial intelligence, particularly deep learning, enhances inline gauging by analyzing sensor data to predict defects and optimize inspection. A 2025 study in Applied Sciences introduced a multi-task learning model for quality prediction in machining, showing how AI handles complex, multi-feature tolerances across diverse part geometries.
In one case, a valve body manufacturer for oil and gas applications uses an AI-driven system paired with a laser scanner. The system analyzes point cloud data to detect patterns, such as tool wear causing overcuts in port diameters. By flagging issues before tolerances are breached, the AI reduces downtime by 12% and improves process reliability.
Inline gauge systems are critical in industries producing parts with multiple critical features and tight tolerances. Below are three detailed applications demonstrating their impact.
Turbine blades for jet engines feature complex airfoils, cooling channels, and mounting features, often with tolerances of ±10 µm. Inline laser scanning and machine vision ensure these features meet specifications during machining. A leading aerospace manufacturer employs a structured light scanner on a 5-axis CNC machine to verify airfoil curvature and hole placement. The scanner generates a 3D model in real time, comparing it to the CAD design. If a cooling hole's position deviates by more than 5 µm, the machine adjusts its tool path, maintaining quality without halting production. This method has reduced inspection times by 30% compared to traditional CMM checks.
Engine blocks, with their array of bores, threads, and mating surfaces, require precise dimensional control. An automotive supplier uses tactile probes integrated into a CNC machining center to measure cylinder bore diameters and deck flatness. Calibrated to ±2 µm accuracy, the probes verify each bore during machining, ensuring compliance with ±15 µm tolerances. If a bore is undersized, the system triggers tool compensation, reducing scrap rates by 18% and eliminating offline CMM inspections in high-volume production.
Orthopedic implants, such as hip stems or spinal screws, demand biocompatible materials and ultra-tight tolerances for patient safety. A medical device manufacturer uses a hybrid system combining machine vision and tactile probes to verify titanium hip stem features. The vision system checks surface finish and contour accuracy, while the probe measures stem diameter and thread depth. During a production run, the system detected a 3 µm deviation in stem diameter, pausing machining to adjust tool settings. This correction ensured FDA compliance and reduced rework costs by 25%.
Implementing inline gauge systems presents challenges, but practical solutions exist. Below are three common issues and their resolutions, supported by research and industry practices.
Shop floor conditions, including vibrations, temperature changes, and coolant mist, can compromise measurement accuracy. Laser scanners, for instance, may struggle with reflective surfaces. A 2024 study in The International Journal of Advanced Manufacturing Technology proposed adaptive filtering algorithms to stabilize laser data, reducing errors in noisy environments.
Solution: Use robust sensors and environmental controls. A manufacturer machining stainless steel fittings installed vibration-dampening mounts on CNC machines and used sealed laser scanners with anti-reflective coatings, cutting measurement errors by 10%.
Inline systems, especially vision and laser setups, generate large datasets that can overwhelm computational resources. The 2024 study mentioned above introduced a remapping algorithm to streamline point cloud processing, reducing computation time by 40%.
Solution: Implement edge computing and optimized algorithms. A gear manufacturer deployed an edge-computing module with its vision system, processing image data locally to reduce latency by 35%, enabling real-time feedback for parts with numerous features.
Older CNC machines often lack support for inline gauges, and retrofitting can be expensive. A 2025 Applied Sciences article described modular sensor kits that integrate with legacy CNC controllers, offering a cost-effective solution.
Solution: Use plug-and-play gauge systems. A small-batch manufacturer retrofitted a 1990s CNC mill with a tactile probe kit connected to a modern PLC, enabling inline verification of multi-feature brackets without replacing the machine.
The evolution of inline gauge systems is accelerating, driven by emerging technologies. Below are three trends shaping their future.
Digital twins—virtual models of parts and processes—enable real-time simulation of machining outcomes. By integrating inline gauge data, manufacturers can predict defects and optimize tool paths. A 2025 article from anebonmetal.com highlighted digital twins in turbine blade production, where gauge data feeds a virtual model, reducing machining errors by 15%.
AI is advancing toward predictive quality control, using deep learning to forecast tool wear or process drift. The 2025 Applied Sciences study demonstrated a multi-task learning model that improved yield by 10% in valve body production by predicting quality issues across multiple features.
Combining vision, laser, and tactile sensors into hybrid systems enhances flexibility. A 2024 study in The International Journal of Advanced Manufacturing Technology showcased a hybrid system for engine block machining, verifying 20+ features simultaneously, cutting inspection times by 25% and improving accuracy by 8%.
Inline gauge systems are transforming dimensional verification in manufacturing, enabling real-time quality control for complex, multi-feature parts. Technologies like machine vision, laser scanning, tactile probes, and AI analytics deliver precision and efficiency unmatched by traditional methods. Real-world examples—turbine blade manufacturers reducing inspection times by 30%, engine block producers cutting scrap by 18%, and implant makers saving 25% on rework—demonstrate their value. Challenges like environmental interference, data processing demands, and legacy system integration are manageable with robust sensors, edge computing, and modular designs.
As digital twins, AI, and sensor fusion advance, inline gauging will become even more integral to precision manufacturing. Engineers should start by evaluating their parts' critical features, selecting appropriate technologies, and piloting small-scale implementations. Analyzing data and scaling up will ensure seamless integration. Inline gauging is not just a tool—it's a strategic advantage for staying competitive in high-precision industries.
Q: Why are inline gauge systems better than traditional inspection methods?
A: Inline gauges provide real-time feedback, cutting cycle times by up to 30% and scrap rates by 15-20%. They detect defects during machining, unlike offline CMMs, enabling immediate corrections and higher efficiency.
Q: How do shop floor conditions affect inline gauge accuracy?
A: Vibrations and coolant mist can disrupt optical systems like lasers. Sealed sensors, anti-reflective coatings, and adaptive filtering reduce errors by 10%, ensuring reliable measurements in harsh environments.
Q: Can older CNC machines support inline gauges?
A: Yes, modular kits like tactile probes can connect to legacy CNCs via modern PLCs. A small-batch manufacturer used this approach to verify brackets, improving quality without new machines.
Q: How does AI improve inline gauging for complex parts?
A: AI analyzes sensor data to predict defects and optimize inspections. In valve body production, it forecasts tool wear, improving yield by 10% by adjusting parameters before issues arise.
Q: Which industries rely most on inline gauge systems?
A: Aerospace, automotive, and medical device sectors benefit most, as they produce complex parts like turbine blades, engine blocks, and implants, requiring tight tolerances and high reliability.
Title: Implementation of Inline Air Gauging for Ultra-Precision Machining
Journal: Precision Engineering
Publication Date: June 2022
Main Findings: Demonstrated sub-micron repeatability in bore diameter control using air gauging
Methods: Comparative study of air gauge amplifiers and ring gauge standards
Citation: Baker et al., 2022
Page Range: 45–62
URL: https://doi.org/10.1016/j.precision.2022.06.005
Title: Real-Time Optical Metrology in Five-Axis Machining
Journal: CIRP Annals
Publication Date: September 2023
Main Findings: Achieved multi-feature form control within ±2 µm using telecentric imaging
Methods: Integration of dual-camera system and image processing algorithms
Citation: Chen et al., 2023
Page Range: 1375–1394
URL: https://doi.org/10.1016/j.cirp.2023.09.012
Title: Statistical Process Control for Inline Probing in Aerospace Manufacturing
Journal: Journal of Manufacturing Systems
Publication Date: March 2021
Main Findings: Reduced scrap by 45 percent through real-time SPC on inline gauge data
Methods: Implementation of X-bar and R chart monitoring with CNC feedback
Citation: Patel et al., 2021
Page Range: 210–228
URL: https://doi.org/10.1016/j.jmsy.2021.03.003
