Die casting is a widely used manufacturing process that involves forcing molten metal into a mold cavity under high pressure. This method is favored for its ability to produce complex shapes with high precision and excellent surface finishes. However, despite its advantages, die casting can lead to defects, one of the most common being flash. Understanding flash in die casting is crucial for manufacturers aiming to improve product quality and reduce waste. This article will explore the nature of flash, its causes, effects, and methods for prevention and control.
Flash refers to the thin layer of excess metal that forms at the parting line of a die casting. This occurs when molten metal escapes from the mold cavity during the injection process. The result is a fin or web of metal that can affect the aesthetic and functional properties of the final product. Flash can vary in size and shape, and while it may seem like a minor issue, it can lead to significant challenges in production and quality assurance. Understanding the definition of flash is the first step in addressing its implications in the die casting process.
Flash typically appears as a thin, protruding edge along the parting line of the casting. It can vary in thickness and length, depending on several factors, including the design of the mold and the conditions under which the die casting process is performed. While some flash may be minimal and easily removed, excessive flash can lead to significant issues in production. The characteristics of flash can also influence the subsequent processing steps, as thicker or more extensive flash may require more intensive trimming or machining, thereby increasing production time and costs.
One of the primary causes of flash is poor mold design. If the mold halves do not close tightly, molten metal can seep into the gaps, resulting in flash. Factors such as misalignment, wear and tear, or inadequate clamping force can contribute to this problem. A well-designed mold should ensure a tight fit between the halves, minimizing the potential for metal leakage. Additionally, the use of advanced mold materials and technologies can enhance the durability and precision of the mold, further reducing the likelihood of flash formation.
The conditions under which die casting occurs also play a significant role in flash formation. High injection speeds and pressures can increase the likelihood of metal escaping the mold. Additionally, if the temperature of the molten metal is too high, it can exacerbate the problem, as hotter metal is more fluid and can flow into smaller gaps. Manufacturers must carefully balance these parameters to optimize the die casting process. By conducting thorough testing and analysis, they can identify the ideal conditions that minimize flash while ensuring the integrity of the casting.
Malfunctions in the die casting machinery can lead to flash. For instance, if the clamping unit fails to maintain adequate pressure, the mold may not close properly, allowing metal to escape. Regular maintenance and monitoring of equipment are essential to prevent such issues. Implementing a preventive maintenance schedule can help identify potential problems before they lead to flash formation. Additionally, investing in modern machinery with advanced monitoring systems can provide real-time data on equipment performance, allowing for timely interventions.
Flash can significantly affect the appearance of die cast parts. Excess metal can create an unappealing finish, leading to a product that does not meet aesthetic standards. This is particularly important in industries where visual quality is paramount, such as automotive and consumer goods. The presence of flash can detract from the overall design and branding of a product, potentially impacting customer satisfaction and marketability. Manufacturers must consider the aesthetic implications of flash and strive to produce visually appealing components that align with consumer expectations.
Beyond aesthetics, flash can also impact the functionality of a part. Excess material can interfere with the fit and assembly of components, leading to operational issues. In some cases, flash can create stress concentrations that may compromise the structural integrity of the part. This is especially critical in applications where safety and reliability are paramount, such as in aerospace and automotive industries. Manufacturers must ensure that their die cast parts not only look good but also perform reliably under various conditions.
The presence of flash often necessitates additional processing steps, such as trimming or grinding, to remove the excess material. This not only increases production time but also raises costs. Manufacturers must balance the benefits of die casting with the potential for increased expenses due to flash. The additional labor and machinery required to address flash can strain production budgets, making it essential for companies to implement effective strategies to minimize flash from the outset.
To minimize flash, manufacturers should focus on optimizing mold design. Ensuring that the mold halves fit together tightly and are properly aligned can significantly reduce the risk of flash formation. Additionally, incorporating features such as draft angles can help facilitate the release of the casting without excess material escaping. Advanced simulation software can assist in designing molds that minimize flash by predicting potential problem areas before production begins. By investing in high-quality mold design, manufacturers can enhance the efficiency and effectiveness of the die casting process.
Careful control of process parameters is essential in preventing flash. This includes monitoring injection speed, pressure, and metal temperature. By finding the optimal settings for these variables, manufacturers can reduce the likelihood of flash while maintaining the quality of the casting. Implementing automated systems for real-time monitoring can help ensure that parameters remain within the desired range throughout the production run. Continuous improvement practices, such as Six Sigma, can also be applied to refine process parameters and reduce variability.
Regular maintenance of die casting equipment is crucial for preventing flash. This includes checking the clamping unit for proper function, ensuring that the mold is in good condition, and addressing any wear and tear promptly. By maintaining equipment, manufacturers can avoid issues that lead to flash formation. Establishing a comprehensive maintenance program that includes routine inspections and timely repairs can significantly enhance the reliability of die casting operations.
Incorporating quality control measures throughout the die casting process can help identify and address flash issues early. This may involve regular inspections of cast parts, monitoring production parameters, and implementing feedback loops to adjust processes as needed. Utilizing statistical process control techniques can provide valuable insights into production trends and help identify areas for improvement. By fostering a culture of quality within the organization, manufacturers can enhance their ability to produce defect-free die cast parts.
Flash in die casting is a common defect that can have significant implications for product quality and production efficiency. By understanding the causes and effects of flash, manufacturers can take proactive steps to minimize its occurrence. Through optimized mold design, careful control of process parameters, regular equipment maintenance, and effective quality control measures, it is possible to reduce flash and improve the overall quality of die cast parts. As the industry continues to evolve, addressing flash will remain a critical focus for manufacturers seeking to enhance their processes and products. By prioritizing the reduction of flash, companies can not only improve their bottom line but also enhance customer satisfaction and loyalty.
Die casting is typically performed using non-ferrous metals, with aluminum, zinc, and magnesium being the most common materials. These metals are favored for their excellent fluidity, strength, and resistance to corrosion.

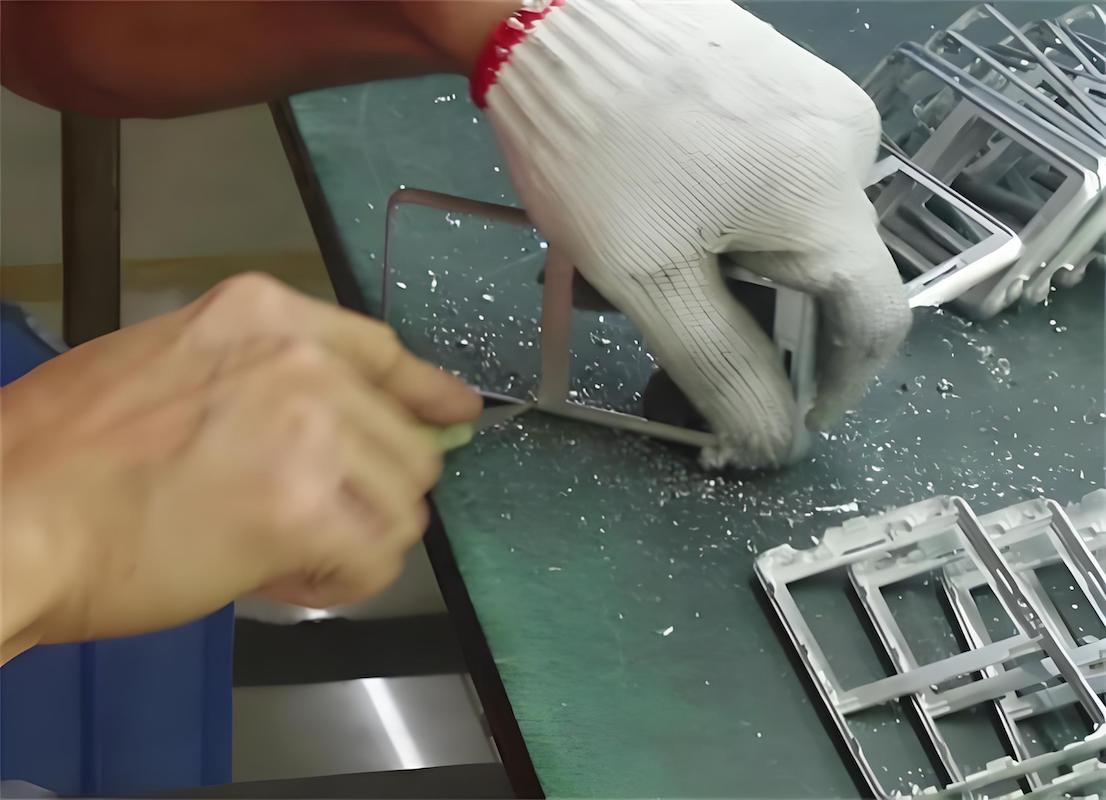

Flash can be removed through various methods, including trimming, grinding, or machining. Automated trimming machines can efficiently remove excess material, while manual methods may be used for smaller batches or intricate designs.
The temperature of the molten metal is crucial in flash formation. If the metal is too hot, it becomes more fluid and can easily escape through gaps in the mold. Maintaining the optimal temperature helps reduce the risk of flash.
Regular mold maintenance is essential to prevent flash. Worn or damaged molds can lead to misalignment and gaps, allowing molten metal to escape. Routine inspections and repairs can help maintain mold integrity and reduce flash formation.
Excessive flash can lead to increased production costs due to additional processing time and labor required for removal. Over time, this can affect overall production efficiency, leading to delays and reduced profitability for manufacturers.
