Die casting is a highly efficient manufacturing process used to produce metal parts with high precision and complex shapes. This method involves injecting molten metal into a mold, known as a die, under high pressure. The die casting process is widely utilized in various industries due to its ability to create intricate designs and maintain tight tolerances. In this article, we will explore the die casting process in detail, including its history, types, advantages, applications, and the future of die casting.
The origins of die casting can be traced back to the mid-19th century when it was first used for producing printing type. The process was revolutionary at the time, allowing for the mass production of uniform typefaces that were essential for the printing industry. Over the years, the process evolved significantly, adapting to the needs of various industries. By the early 20th century, die casting began to be used for creating complex metal parts for automobiles and other machinery. The introduction of high-pressure die casting in the 1920s marked a significant advancement, allowing for faster production rates and improved part quality. This evolution not only increased the efficiency of manufacturing but also paved the way for innovations in design and engineering, leading to the modern applications we see today.

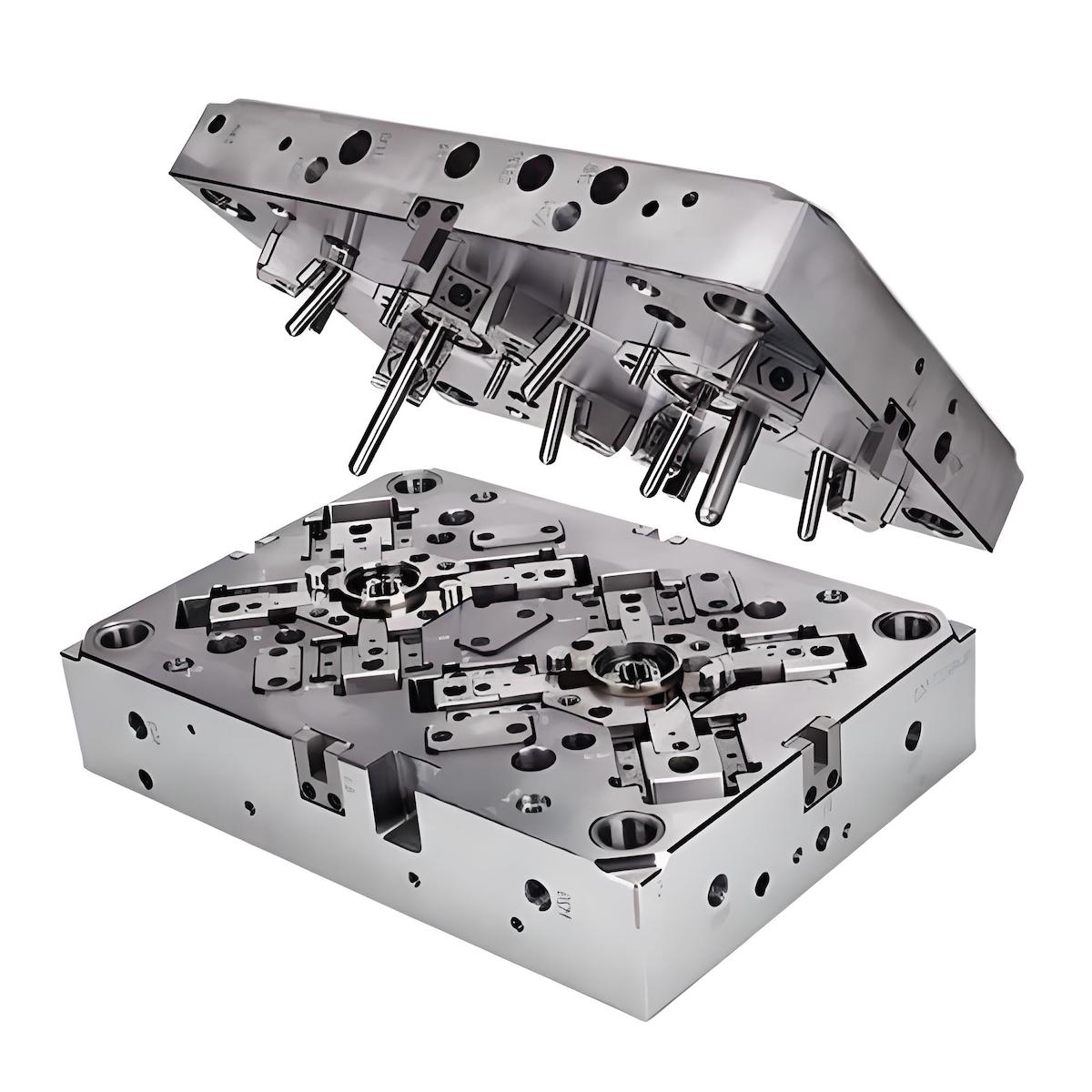

The die is a critical component in the die casting process. It is typically made from high-strength steel to withstand the high pressures and temperatures involved. The preparation of the die involves several steps:
Design: The die is designed based on the specifications of the part to be produced. This includes considerations for the part's geometry, draft angles, and cooling channels. The design phase is crucial as it determines the feasibility of the part and its manufacturability.
Machining: Once the design is finalized, the die is machined to create the desired cavities. This process requires precision to ensure that the final parts meet the required tolerances. Advanced CNC (Computer Numerical Control) machines are often used to achieve the high levels of accuracy needed in die production.
Surface Treatment: The die may undergo surface treatments to enhance its durability and reduce wear during the casting process. Treatments such as nitriding or coating with hard materials can significantly extend the life of the die, reducing maintenance costs and downtime.
The next step in the die casting process is melting the metal. Common materials used in die casting include aluminum, zinc, magnesium, and copper alloys. The melting process involves:
Heating: The metal is heated in a furnace until it reaches a molten state. The temperature required varies depending on the type of metal being used. For instance, aluminum melts at around 660 degrees Celsius, while zinc has a lower melting point of approximately 420 degrees Celsius.
Degassing: To ensure the quality of the final product, the molten metal is often degassed to remove any impurities or gases that could cause defects. This step is critical as trapped gases can lead to porosity in the final part, compromising its strength and integrity.
Once the metal is prepared, it is injected into the die. This step is crucial for achieving the desired shape and quality of the part. The injection process involves:
Filling the Die: The molten metal is injected into the die under high pressure, filling the cavity quickly to minimize the risk of defects. The speed and pressure of injection are carefully controlled to ensure that the metal flows evenly and fills all areas of the mold.
Cooling: After the die is filled, the molten metal is allowed to cool and solidify. The cooling time depends on the thickness of the part and the material used. Effective cooling is essential to achieve the desired mechanical properties and surface finish of the final product.
After the metal has cooled and solidified, the die is opened, and the finished part is ejected. This step includes:
Ejection Mechanism: Ejector pins or plates are used to push the part out of the die without causing damage. The design of the ejection system is critical to ensure that the part is released smoothly and without defects.
Inspection: The ejected part is inspected for quality and any defects. This may involve visual inspection, dimensional checks, and testing for mechanical properties. Quality control is a vital aspect of the die casting process, as it ensures that only parts meeting the required standards are delivered to customers.
Die casting can be categorized into two main types: hot chamber and cold chamber die casting. Each type has its specific applications and advantages.
In hot chamber die casting, the melting of the metal occurs within the die casting machine itself. This method is suitable for metals with low melting points, such as zinc and magnesium. The advantages of hot chamber die casting include:
Faster Production Rates: The process allows for quicker cycle times, making it ideal for high-volume production. The continuous melting and injection process minimizes downtime between cycles.
Reduced Metal Waste: Since the metal is melted in the machine, there is less waste compared to other methods. This efficiency contributes to lower material costs and a more sustainable manufacturing process.
Cold chamber die casting is used for metals with higher melting points, such as aluminum and copper alloys. In this method, the molten metal is poured into the injection chamber before being injected into the die. The benefits of cold chamber die casting include:
Versatility: It can accommodate a wider range of materials, making it suitable for various applications. This flexibility allows manufacturers to choose the best material for their specific needs.
Improved Quality: The process allows for better control over the injection speed and pressure, resulting in higher-quality parts. The ability to fine-tune these parameters helps reduce defects and improve the overall performance of the components.
Die casting offers several advantages that make it a preferred choice for manufacturers:
One of the key benefits of die casting is its ability to produce parts with high precision and tight tolerances. This is essential for industries that require exact specifications, such as automotive and aerospace. The precision achieved through die casting reduces the need for extensive machining or finishing processes, saving time and costs.
Die casting allows for the creation of complex shapes and designs that would be difficult or impossible to achieve with other manufacturing methods. This flexibility enables designers to innovate and create more efficient products. The ability to incorporate intricate features directly into the casting can lead to lighter and more functional designs.
While the initial setup costs for die casting can be high, the process is cost-effective for high-volume production runs. The ability to produce large quantities of parts quickly reduces the overall cost per unit. Additionally, the durability of die-cast parts often leads to lower failure rates, further enhancing their cost-effectiveness over time.
Parts produced through die casting are known for their strength and durability. The high-pressure injection process results in a dense and uniform structure, making die-cast components suitable for demanding applications. The mechanical properties of die-cast metals often exceed those of parts produced by other methods, making them ideal for critical applications.
Die casting is used across various industries due to its versatility and efficiency. Some common applications include:
The automotive industry is one of the largest users of die casting. Components such as engine blocks, transmission cases, and structural parts are often produced using this method. The lightweight and durable nature of die-cast parts contributes to improved fuel efficiency and performance. As the industry moves towards electric vehicles, die casting is also being adapted to meet the new requirements for battery housings and other components.
In the aerospace sector, die casting is used to manufacture critical components that require high strength-to-weight ratios. Parts such as brackets, housings, and structural elements are commonly produced through die casting. The stringent safety and performance standards in aerospace make die casting an ideal choice for producing reliable and robust components.

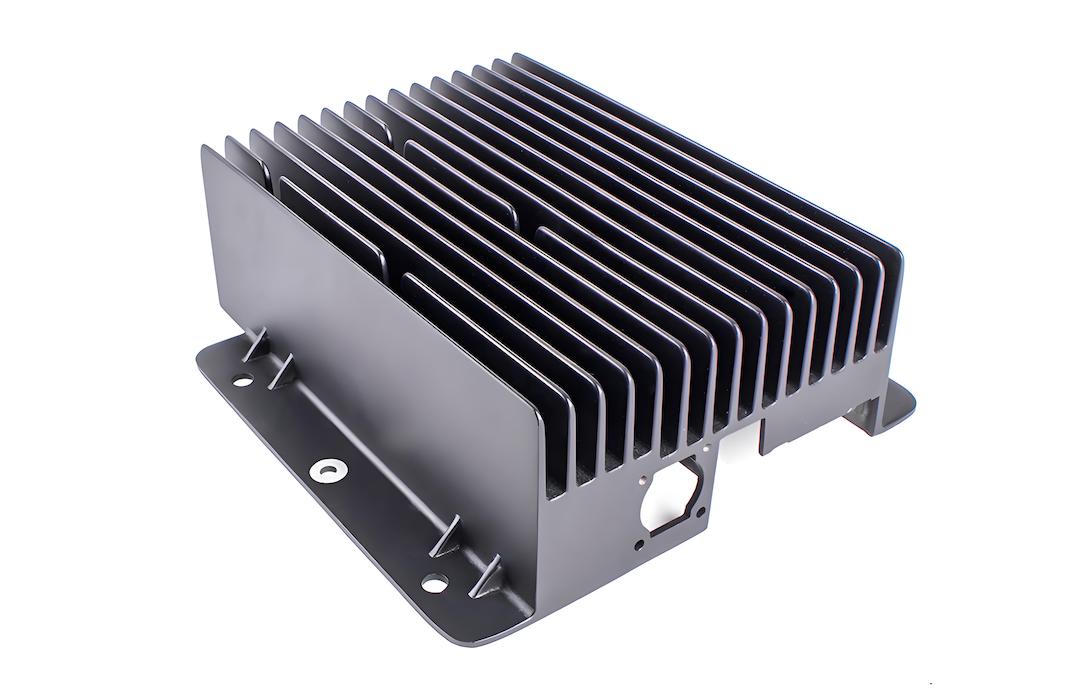

Die casting is also prevalent in the consumer electronics industry, where it is used to create housings and enclosures for devices such as smartphones, laptops, and gaming consoles. The ability to produce intricate designs helps enhance the aesthetic appeal of these products. Additionally, die-cast components can provide better thermal management, which is crucial for electronic devices.
Many industrial machines and equipment rely on die-cast components for their functionality. Parts such as gears, housings, and frames are often produced using die casting to ensure durability and reliability. The robustness of die-cast parts makes them suitable for heavy-duty applications, contributing to the longevity of industrial equipment.
As technology continues to advance, the die casting industry is evolving to meet new challenges and opportunities. Some trends shaping the future of die casting include:
The integration of automation and robotics in the die casting process is expected to enhance efficiency and reduce labor costs. Automated systems can improve precision and consistency while minimizing human error. The use of robotics for tasks such as die cleaning, part ejection, and quality inspection is becoming increasingly common, leading to more streamlined operations.
The development of new materials and alloys is opening up new possibilities for die casting. Manufacturers are exploring lightweight and high-strength materials that can further improve the performance of die-cast components. Innovations in alloy formulations can lead to better corrosion resistance, thermal stability, and overall mechanical properties.
With increasing focus on sustainability, the die casting industry is adopting practices to reduce waste and energy consumption. Recycling of scrap metal and the use of eco-friendly materials are becoming more common. Additionally, manufacturers are exploring energy-efficient melting and casting technologies to minimize their environmental impact.
The adoption of digital technologies, such as 3D printing and simulation software, is transforming the die casting process. These technologies enable manufacturers to optimize designs and improve production efficiency. Digital twins and predictive maintenance are also being utilized to enhance operational efficiency and reduce downtime.
Die casting is a vital manufacturing process that plays a significant role in producing high-quality metal parts across various industries. Its ability to create complex geometries with high precision makes it a preferred choice for manufacturers. As the industry continues to evolve, advancements in technology and materials will further enhance the capabilities of die casting, ensuring its relevance in the future of manufacturing. The ongoing innovations in automation, materials, and sustainability will likely shape the next generation of die casting, making it an exciting field to watch in the coming years.
The most commonly used materials in die casting include aluminum, zinc, magnesium, and copper alloys. Each material has specific properties that make it suitable for different applications, such as weight, strength, and corrosion resistance.
Die casting is often preferred over other manufacturing processes like sand casting or machining due to its ability to produce parts with high precision, complex geometries, and lower production costs for high-volume runs. It also results in less material waste and can produce stronger parts due to the high-pressure injection of molten metal.
The main advantages of die casting include high precision and tolerance, the ability to create complex shapes, cost-effectiveness for large production runs, and the production of strong and durable parts. These benefits make die casting a popular choice in industries such as automotive, aerospace, and consumer electronics.
Hot chamber die casting involves melting the metal within the die casting machine, making it suitable for low melting point metals like zinc. Cold chamber die casting requires the molten metal to be poured into the injection chamber before being injected into the die, making it suitable for higher melting point metals like aluminum. Hot chamber processes typically allow for faster production rates, while cold chamber processes offer greater versatility in material selection.
Die casting is widely used in various industries, including the automotive industry for engine blocks and transmission cases, the aerospace industry for structural components, consumer electronics for device housings, and industrial equipment for gears and frames. Its ability to produce high-quality, complex parts makes it essential in these sectors.
