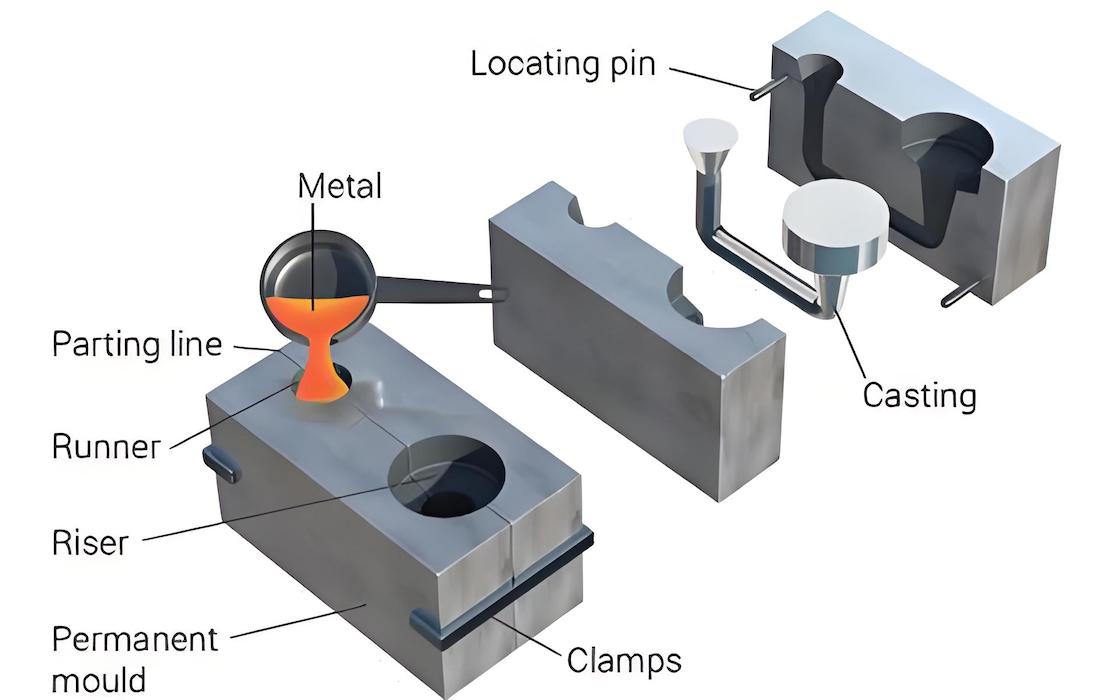

Die casting is a manufacturing process that involves forcing molten metal into a mold cavity under high pressure. This technique is widely used for producing complex shapes with high precision and excellent surface finish. The die casting process is favored in various industries, including automotive, aerospace, and consumer goods, due to its efficiency and ability to produce large quantities of parts. In this article, we will explore the different types of die casting, their processes, advantages, and applications, providing a comprehensive understanding of this essential manufacturing technique.
Die casting is categorized into two primary methods: hot chamber and cold chamber die casting. Each method has its unique characteristics, advantages, and applications. Understanding these methods is crucial for selecting the appropriate die casting process for specific manufacturing needs. The choice between hot and cold chamber die casting often depends on the type of metal being used, the complexity of the part, and the production volume required.
Hot chamber die casting is a process where the molten metal is injected into the die from a chamber that is heated. This method is particularly suitable for metals with low melting points, such as zinc, magnesium, and lead. The hot chamber die casting process involves several key steps:
Melting the Metal: The metal is melted in a furnace that is integrated with the die casting machine. The molten metal is kept at a consistent temperature to ensure fluidity. This integration allows for a seamless transition from melting to injection, minimizing the time between these stages.
Injection: A piston or plunger is used to inject the molten metal into the die under high pressure. This rapid injection helps fill the mold quickly, reducing the risk of defects. The high pressure also ensures that the molten metal reaches all areas of the mold, capturing intricate details.
Cooling and Solidification: Once the mold is filled, the molten metal cools and solidifies. The cooling time depends on the thickness of the part and the material used. Effective cooling is crucial, as it affects the mechanical properties and surface finish of the final product.
Ejection: After solidification, the die is opened, and the finished part is ejected using ejector pins. This step must be carefully controlled to avoid damaging the part or the mold.
High Production Rates: The hot chamber method allows for rapid production of parts, making it ideal for high-volume manufacturing. This efficiency is particularly beneficial in industries where time-to-market is critical.
Excellent Surface Finish: Parts produced using this method typically have a smooth surface finish, reducing the need for additional machining. This quality can enhance the aesthetic appeal of consumer products and reduce costs associated with secondary operations.
Complex Geometries: Hot chamber die casting can produce intricate shapes and designs with high precision. This capability opens up design possibilities for engineers and designers, allowing for innovative product development.
Hot chamber die casting is commonly used in the production of automotive components, electronic housings, and various consumer products. Its ability to produce lightweight and durable parts makes it a preferred choice in industries where performance and aesthetics are critical. For example, the automotive industry relies on hot chamber die casting for producing parts like brackets, housings, and structural components that require both strength and weight savings.
Cold chamber die casting is a process where the molten metal is poured into a chamber that is not heated. This method is suitable for metals with higher melting points, such as aluminum, copper, and brass. The cold chamber die casting process involves the following steps:
Melting the Metal: The metal is melted in a separate furnace and then transferred to the cold chamber. This separation allows for better temperature control and prevents contamination from the machine components.
Injection: A hydraulic piston pushes the molten metal into the die under high pressure. The injection speed and pressure are carefully controlled to ensure proper filling of the mold. This precision is essential for achieving the desired dimensional accuracy and surface quality.
Cooling and Solidification: Similar to the hot chamber process, the molten metal cools and solidifies within the mold. The cooling rate can be adjusted to optimize the mechanical properties of the final part.
Ejection: Once the part has solidified, the die is opened, and the finished part is ejected. The ejection mechanism must be designed to minimize the risk of damaging the part during removal.
Versatility: Cold chamber die casting can accommodate a wider range of materials, including those with higher melting points. This versatility allows manufacturers to choose materials based on performance requirements rather than limitations of the casting process.
Reduced Contamination: Since the molten metal is not in contact with the machine components, there is less risk of contamination from lubricants or other materials. This cleanliness is particularly important in industries where product purity is critical, such as aerospace and medical devices.
Better Mechanical Properties: Parts produced using cold chamber die casting often exhibit superior mechanical properties due to the controlled cooling process. This advantage can lead to longer-lasting components that perform better under stress.
Cold chamber die casting is widely used in the automotive industry for producing engine blocks, transmission cases, and other critical components. It is also used in the manufacturing of industrial machinery and equipment. The ability to produce complex shapes with high strength makes cold chamber die casting ideal for applications where performance and reliability are paramount.
In addition to the primary hot and cold chamber methods, there are several other die casting processes that cater to specific manufacturing needs. These include:
Low pressure die casting involves the use of low pressure to force molten metal into the mold. This method is particularly effective for producing large and complex parts with thin walls. The process typically involves the following steps:
Melting the Metal: The metal is melted in a furnace and then transferred to a holding chamber. This chamber is maintained at a controlled temperature to ensure the metal remains in a molten state.
Injection: The molten metal is pushed into the mold using low pressure, allowing for better control over the filling process. This gentle injection reduces turbulence and minimizes the risk of defects.
Cooling and Solidification: The metal cools and solidifies within the mold. The cooling rate can be adjusted to optimize the properties of the final part.
Ejection: The finished part is ejected from the mold. The ejection process must be carefully managed to avoid damaging the part.
Reduced Porosity: The low pressure used in this method minimizes the formation of gas pockets, resulting in denser parts. This density is crucial for applications where strength and durability are required.
Improved Surface Finish: Parts produced using low pressure die casting often have a superior surface finish compared to traditional methods. This quality can reduce the need for secondary operations, saving time and costs.
Low pressure die casting is commonly used in the production of automotive components, such as wheels and engine parts, as well as in the manufacturing of large industrial components. Its ability to produce high-quality parts with complex geometries makes it a valuable process in various industries.
Vacuum die casting is a process that utilizes a vacuum to remove air from the mold cavity before injecting the molten metal. This method is particularly effective for producing high-quality parts with minimal defects. The process involves the following steps:
Creating a Vacuum: A vacuum is created in the mold cavity to eliminate air and moisture. This step is critical for preventing oxidation and ensuring a clean casting environment.
Injection: The molten metal is injected into the mold under vacuum conditions, ensuring that it fills the cavity completely. The vacuum helps to draw the metal into intricate features of the mold.
Cooling and Solidification: The metal cools and solidifies within the mold. The controlled environment allows for uniform cooling, which can enhance the mechanical properties of the final part.
Ejection: The finished part is ejected from the mold. The vacuum environment helps to reduce the risk of defects during this stage.
High Quality: The vacuum environment reduces the risk of defects, resulting in high-quality parts. This quality is particularly important in industries where precision and reliability are critical.
Versatility: Vacuum die casting can be used with a variety of materials, including aluminum and magnesium alloys. This versatility allows manufacturers to select materials based on performance requirements.
This method is commonly used in the aerospace and automotive industries for producing critical components that require high precision and reliability. The ability to produce defect-free parts makes vacuum die casting an attractive option for high-performance applications.
Squeeze die casting is a process that combines elements of both hot and cold chamber die casting. In this method, molten metal is poured into a mold and then subjected to high pressure to ensure complete filling. The process involves the following steps:
Pouring the Metal: The molten metal is poured into the mold cavity. This initial pouring allows for the metal to settle into the mold before pressure is applied.
Squeezing: A plunger applies high pressure to the molten metal, forcing it into the mold. This squeezing action helps to eliminate air pockets and ensures that the mold is completely filled.
Cooling and Solidification: The metal cools and solidifies within the mold. The cooling rate can be controlled to optimize the properties of the final part.
Ejection: The finished part is ejected from the mold. The ejection process must be carefully managed to avoid damaging the part.
Enhanced Mechanical Properties: The high pressure used in this method results in parts with improved mechanical properties. This strength is essential for applications where components are subjected to high stress.
Reduced Defects: The squeezing action minimizes the formation of defects, resulting in high-quality parts. This quality can lead to lower rejection rates and improved production efficiency.
Squeeze die casting is often used in the production of automotive components, such as transmission cases and engine blocks, where strength and durability are essential. Its ability to produce high-quality parts makes it a valuable process in industries that demand reliability and performance.
Die casting is a versatile and efficient manufacturing process that offers a range of methods to suit different materials and production needs. Understanding the various types of die casting, including hot chamber, cold chamber, low pressure, vacuum, and squeeze die casting, is essential for selecting the right process for specific applications. Each method has its unique advantages and is suited for different industries, making die casting a critical technique in modern manufacturing. As technology continues to advance, the die casting process will likely evolve, offering even more possibilities for producing high-quality parts with precision and efficiency. The ongoing development in materials and techniques will further enhance the capabilities of die casting, ensuring its relevance in the future of manufacturing.
The most commonly used materials in die casting include aluminum, zinc, magnesium, copper, and lead. Aluminum is favored for its lightweight and strength, while zinc is often used for its excellent fluidity and corrosion resistance.
Die casting offers several advantages over other manufacturing processes, such as injection molding and machining. It provides high precision, excellent surface finish, and the ability to produce complex shapes in large volumes. However, it is typically more cost-effective for high-volume production rather than low-volume runs.
The main advantages of die casting include high production rates, excellent dimensional accuracy, smooth surface finishes, and the ability to create intricate designs. Additionally, die casting can produce parts with good mechanical properties and reduced porosity.
Industries that benefit significantly from die casting include automotive, aerospace, electronics, consumer goods, and industrial machinery. These sectors require high-quality, durable components that can be produced efficiently and at scale.
Common defects in die casting include porosity, surface imperfections, misalignment, and incomplete filling of the mold. These defects can arise from issues such as improper temperature control, inadequate mold design, or insufficient injection pressure. Proper process control and mold design can help minimize these defects.
