3D printing has revolutionized the way we approach design and manufacturing. As this technology continues to evolve, understanding the key design considerations becomes essential for creating successful 3D printed objects. This article explores various aspects of 3D printing design, including material selection, geometry, and post-processing, to help you optimize your projects.
Before diving into design considerations, it is crucial to understand the different types of 3D printing technologies available. Each technology has its unique characteristics, advantages, and limitations. The most common types include:
Fused Deposition Modeling (FDM): This is the most widely used 3D printing technology, where thermoplastic filaments are melted and extruded layer by layer to create objects. FDM is known for its affordability and ease of use, making it popular among hobbyists and professionals alike. The simplicity of FDM allows for rapid prototyping, enabling designers to iterate quickly and test their ideas without significant investment.
Stereolithography (SLA): SLA uses a laser to cure liquid resin into solid objects. This method is known for its high precision and ability to produce intricate details, making it suitable for applications requiring fine features. SLA is often used in industries such as jewelry design and dental applications, where detail is paramount. The smooth surface finish of SLA prints also reduces the need for extensive post-processing.
Selective Laser Sintering (SLS): SLS uses a laser to fuse powdered materials, typically nylon or other polymers, into solid structures. This technology allows for complex geometries and is often used in industrial applications. SLS is particularly advantageous for creating functional prototypes and end-use parts, as it can produce strong, durable components without the need for support structures.
Selecting the appropriate 3D printing technology is a fundamental step in the design process. Consider the following factors when making your choice:
Material Compatibility: Different technologies support various materials. Ensure that the material you intend to use is compatible with the chosen printing method. For instance, while FDM is limited to thermoplastics, SLA can utilize a range of resins, including flexible and high-temperature options. Understanding material properties will help you select the best technology for your specific application.
Desired Resolution: If your project requires high detail, SLA or SLS may be more suitable than FDM. The resolution of the print can significantly affect the final product's quality, especially in applications where precision is critical. Higher resolution prints may also require longer print times, so balancing detail with efficiency is essential.
Production Volume: For low-volume production, FDM is often more cost-effective, while SLS may be better for larger batches due to its speed and efficiency. Consider your production needs and budget when selecting a technology, as this will impact both the cost and timeline of your project.

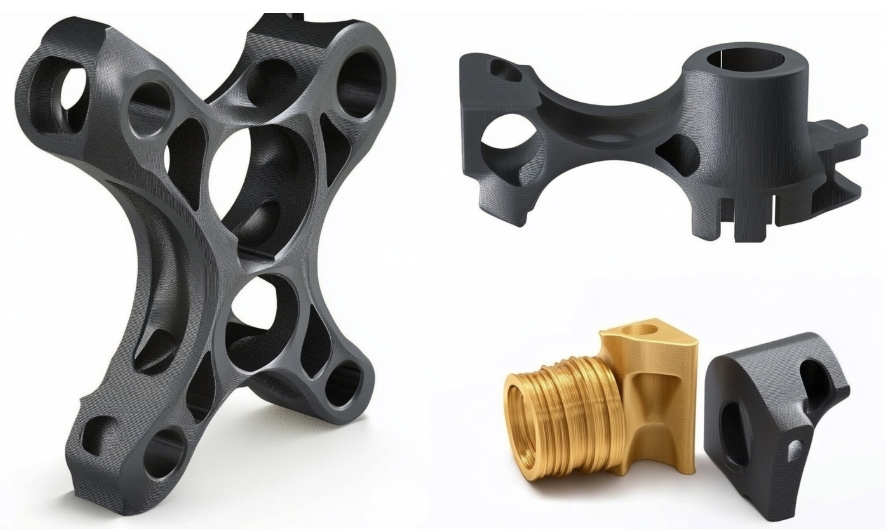

When designing for 3D printing, geometry plays a crucial role in the success of the final product. Here are some key aspects to consider:
Each 3D printing technology has a minimum feature size that can be accurately printed. For instance, FDM typically requires larger features compared to SLA. Understanding these limitations will help you avoid designing features that cannot be produced. Additionally, consider how the minimum feature size affects the overall design aesthetic and functionality. For example, intricate designs may require careful planning to ensure that all features are printable without compromising the design's integrity.
Overhangs are areas of a design that extend beyond the previous layer without support. To minimize the need for support structures, design with overhang angles in mind. A general rule is to keep overhangs below 45 degrees. If your design requires significant overhangs, consider adding supports or redesigning the geometry to reduce them. The use of supports can increase material usage and post-processing time, so optimizing your design to minimize these factors can lead to more efficient printing and a cleaner final product.
The thickness of walls in your design affects both strength and printability. Thinner walls may lead to weak structures, while excessively thick walls can increase material usage and print time. It is essential to find a balance based on the material and technology used. Additionally, consider how wall thickness impacts the overall weight and functionality of the part. For example, in applications where weight is a concern, such as in aerospace or automotive industries, optimizing wall thickness can lead to significant performance improvements.
Tolerances refer to the allowable variations in dimensions and fit between parts. In 3D printing, tolerances can be affected by the printing process, material shrinkage, and layer adhesion. It is crucial to design with tolerances in mind, especially for parts that need to fit together. Understanding the specific tolerances of your chosen printing technology will help you create designs that are both functional and manufacturable.
If your project involves multiple parts, ensure that they are designed for easy assembly. Consider using features like snap fits or interlocking designs to facilitate assembly without the need for additional fasteners. Designing for assembly not only simplifies the manufacturing process but also enhances the user experience by making the final product easier to use and maintain.

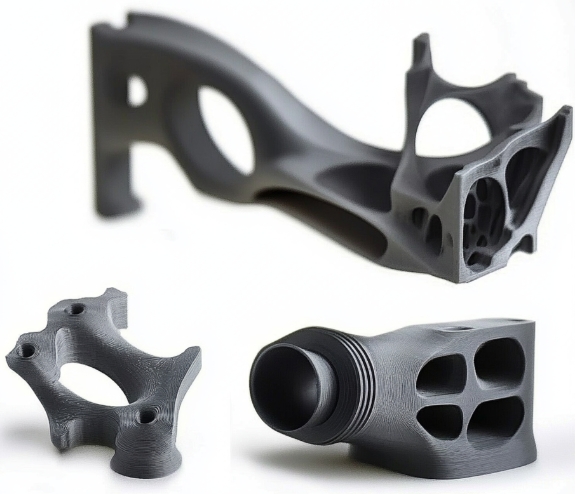

Material selection is a critical aspect of 3D printing design. Different materials offer varying properties, such as strength, flexibility, and heat resistance. Here are some common materials used in 3D printing:
PLA (Polylactic Acid): A biodegradable thermoplastic that is easy to print and suitable for beginners. PLA is ideal for prototypes and decorative items but may not be suitable for functional parts due to its lower heat resistance. Its environmental friendliness makes it a popular choice for educational projects and hobbyists looking to minimize their ecological footprint.
ABS (Acrylonitrile Butadiene Styrene): A strong and durable thermoplastic that is commonly used for functional parts. ABS requires a heated bed to prevent warping during printing. Its toughness and impact resistance make it suitable for applications such as automotive components and consumer products.
Nylon: Known for its strength and flexibility, nylon is often used in applications requiring durability. However, it can be challenging to print due to its tendency to absorb moisture. Nylon's unique properties make it ideal for functional prototypes, gears, and other mechanical parts that require resilience and wear resistance.
Understanding the properties of the materials you choose will influence your design decisions. For example, if you are using a flexible material, consider incorporating features that allow for bending or stretching without compromising the integrity of the part. Additionally, consider how the material's thermal properties may affect the design, especially in applications where heat resistance is critical. Designing with material properties in mind can lead to more effective and reliable products.

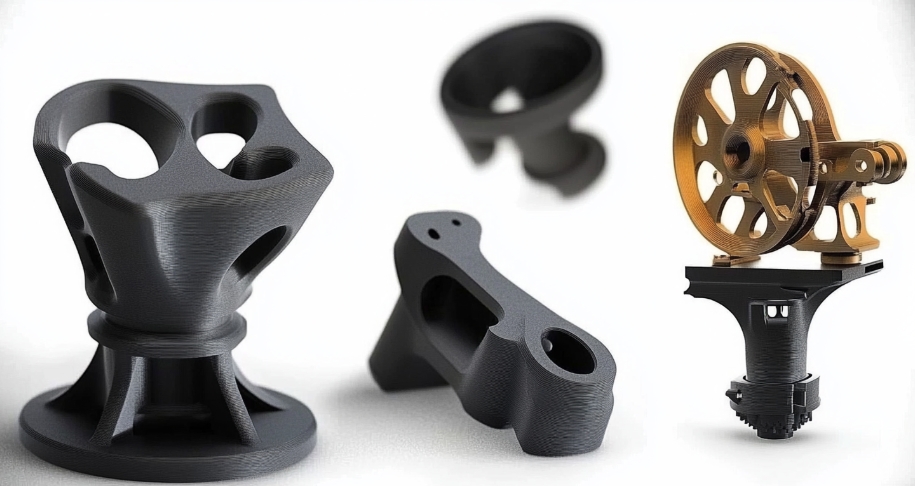

The orientation of your model during printing can significantly impact the strength and appearance of the final product. Different orientations can affect layer adhesion, surface finish, and the need for supports.
When designing parts that will experience stress, consider orienting them to maximize strength. For instance, printing a part vertically may provide better strength along the layer lines compared to printing it flat. Understanding the stress distribution in your design will help you choose the best orientation to enhance performance and durability.
The orientation also affects the surface finish of the printed part. Horizontal surfaces may require less post-processing, while vertical surfaces may show more layer lines. Choose the orientation that best suits the aesthetic and functional requirements of your project. Additionally, consider how the orientation may impact the visibility of layer lines and the overall appearance of the final product.
Post-processing is often necessary to improve the appearance and functionality of 3D printed parts. Common post-processing techniques include:
Sanding: Smoothing the surface of printed parts can enhance their appearance and prepare them for painting or finishing. Sanding can also help remove any imperfections caused by the printing process, resulting in a more polished final product.
Painting: Applying paint can improve aesthetics and provide additional protection to the printed part. Consider using primers and paints that are compatible with the material used to ensure a durable finish.
Sealing: For parts exposed to moisture or chemicals, sealing can enhance durability and longevity. Sealing can also improve the part's appearance by providing a uniform finish and reducing the visibility of layer lines.
When designing your model, consider how it will be post-processed. Features that are difficult to reach may complicate finishing efforts. Designing with post-processing in mind can save time and improve the overall quality of the final product. Additionally, consider how post-processing may affect the dimensions and tolerances of your parts, as this can impact assembly and functionality.
Designing for 3D printing involves a comprehensive understanding of various factors, including technology, geometry, material selection, and post-processing. By considering these design considerations, you can optimize your projects for successful outcomes. Whether you are a beginner or an experienced designer, keeping these principles in mind will help you create functional and aesthetically pleasing 3D printed objects. Embrace the possibilities of 3D printing and let your creativity flourish as you explore the endless design opportunities this technology offers. The future of manufacturing is here, and with the right knowledge and approach, you can be at the forefront of this exciting field.
The most important factor is understanding the limitations of the chosen 3D printing technology, including minimum feature size, overhang capabilities, and material properties. This knowledge helps ensure that the design is feasible and can be successfully printed.
To minimize support structures, design with overhangs in mind by keeping angles below 45 degrees. Additionally, consider using features like arches or bridges that distribute weight more evenly and redesigning parts to eliminate unnecessary overhangs.
For functional prototypes, materials like ABS and nylon are often preferred due to their strength, durability, and heat resistance. These materials can withstand mechanical stress and are suitable for parts that will be used in real-world applications.
Print orientation significantly affects the strength of a part because layer adhesion varies based on how the part is oriented during printing. Parts printed vertically often have better strength along the layer lines, while horizontal prints may be weaker in those areas. Choosing the right orientation can enhance the part's overall performance.
Common post-processing techniques include sanding to smooth surfaces, painting for aesthetic enhancement, and sealing to protect against moisture and chemicals. These techniques can significantly improve the final appearance and durability of the printed parts.
