In the world of manufacturing, choosing the right method for producing metal parts is crucial. Two popular techniques are Metal Injection Molding (MIM) and Die Casting. Each method has its unique advantages and disadvantages, making them suitable for different applications. This article will explore the differences between these two processes, helping you determine which is best for your specific needs.

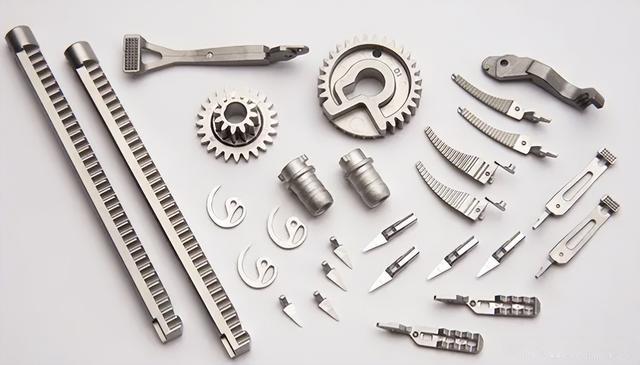

Metal Injection Molding is a manufacturing process that combines the principles of plastic injection molding with metal powder technology. In this process, fine metal powders are mixed with a binder material to create a feedstock. This feedstock is then injected into a mold under high pressure, where it takes the shape of the mold cavity. After cooling, the part undergoes a debinding process to remove the binder, followed by sintering, where the part is heated to a temperature below its melting point to fuse the metal particles together. This intricate process allows for the production of highly detailed and complex parts that are often required in advanced applications.
The versatility of MIM extends beyond just the production of parts; it also allows for the integration of various materials and additives that can enhance the properties of the final product. For instance, manufacturers can tailor the composition of the metal powder to achieve specific mechanical properties, such as increased strength or corrosion resistance, making MIM a highly adaptable process for various industries.
Complex Geometries: MIM is particularly well-suited for producing intricate shapes and designs that would be difficult or impossible to achieve with traditional machining methods. This capability is especially beneficial in industries like aerospace and medical devices, where components often require complex internal structures or fine details.
Material Versatility: This process can utilize a wide range of materials, including stainless steel, titanium, and various alloys, making it adaptable to different applications. The ability to work with different materials allows manufacturers to select the best option for their specific needs, whether they require lightweight components or parts that can withstand extreme conditions.
High Precision: MIM can achieve tight tolerances and excellent surface finishes, making it ideal for applications requiring high precision. This level of accuracy is crucial in sectors such as electronics, where even minor deviations can lead to product failures or malfunctions.
Low Waste: The MIM process generates minimal waste, as the metal powder can be reused, contributing to a more sustainable manufacturing process. This aspect not only reduces material costs but also aligns with the growing emphasis on environmentally friendly manufacturing practices.
Higher Initial Costs: The tooling and setup costs for MIM can be significant, making it less economical for low-volume production runs. Companies must weigh these initial investments against the long-term benefits of the process, particularly if they anticipate high production volumes in the future.
Longer Lead Times: The process involves multiple steps, including debinding and sintering, which can extend lead times compared to other methods. This factor can be a critical consideration for businesses that require rapid prototyping or quick turnaround times for their products.
Limited Part Size: MIM is generally more suitable for smaller parts, as larger components may not be feasible due to the limitations of the sintering process. This limitation can restrict the application of MIM in industries that require larger components, necessitating a careful evaluation of part size during the design phase.

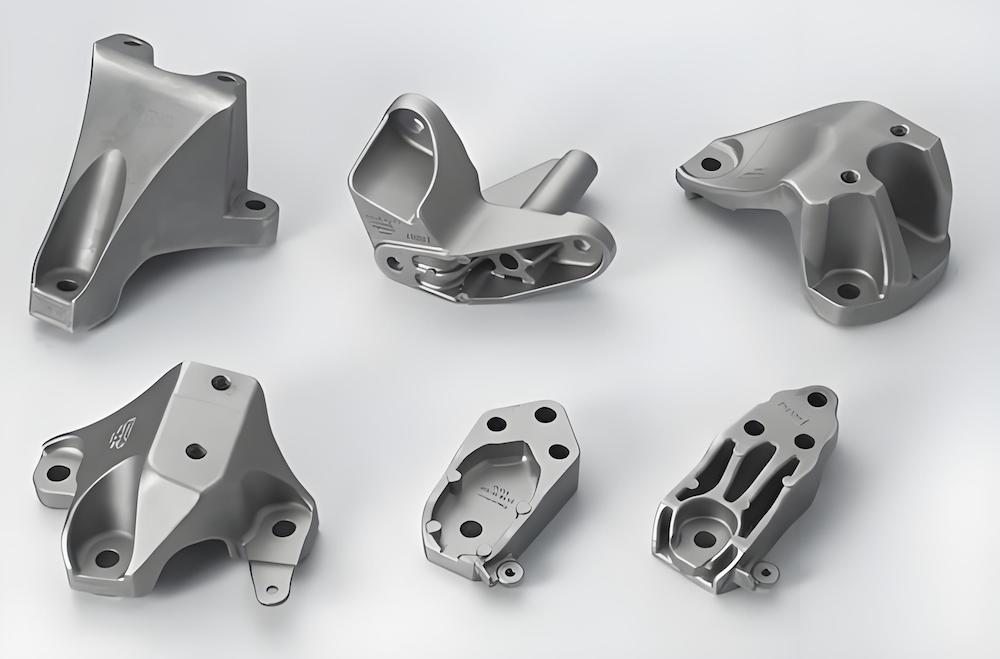

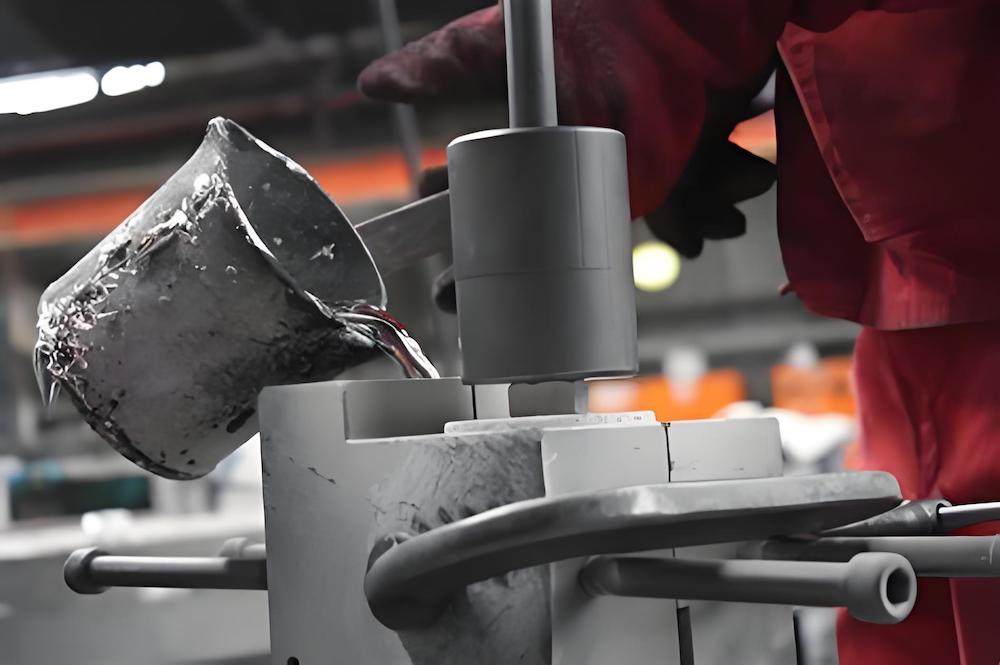

Die Casting is a metal casting process that involves forcing molten metal into a mold cavity under high pressure. The molds, known as dies, are typically made from steel and can be reused for multiple production cycles. Once the metal cools and solidifies, the die is opened, and the finished part is ejected. This process is known for its efficiency and ability to produce high-quality parts at a rapid pace, making it a popular choice in various manufacturing sectors.
The die casting process can be further categorized into two main types: hot chamber and cold chamber die casting. Hot chamber die casting is used for metals with low melting points, such as zinc, while cold chamber die casting is suitable for metals with higher melting points, like aluminum. This distinction allows manufacturers to select the most appropriate method based on the material being used, optimizing the production process.
High Production Rates: Die casting is known for its efficiency, allowing for the rapid production of large quantities of parts. This capability is particularly advantageous in industries where demand fluctuates, enabling manufacturers to scale production quickly to meet market needs.
Excellent Dimensional Accuracy: The process can produce parts with tight tolerances and smooth surface finishes, making it suitable for a variety of applications. This precision is essential in sectors such as automotive and electronics, where components must fit together seamlessly to ensure proper functionality.
Cost-Effective for High Volumes: While the initial cost of die casting molds can be high, the cost per part decreases significantly with larger production runs, making it economical for mass production. This cost efficiency allows companies to maintain competitive pricing while meeting high demand.
Wide Range of Materials: Die casting can accommodate various metals, including aluminum, zinc, and magnesium, providing flexibility in material selection. This versatility enables manufacturers to choose materials that best suit their product requirements, whether they prioritize weight, strength, or corrosion resistance.
Limited Complexity: While die casting can produce complex shapes, it is generally less versatile than MIM when it comes to intricate designs. This limitation may require additional machining or finishing processes to achieve the desired specifications, potentially increasing production time and costs.
Higher Waste Generation: The die casting process can produce more scrap material compared to MIM, particularly if the design requires extensive machining after casting. This waste can impact overall production efficiency and sustainability efforts, prompting manufacturers to consider design optimizations to minimize scrap.
Initial Setup Costs: Similar to MIM, the initial costs for die casting molds can be high, which may not be justified for low-volume production. Companies must carefully assess their production needs and budget constraints before committing to die casting as their manufacturing method.

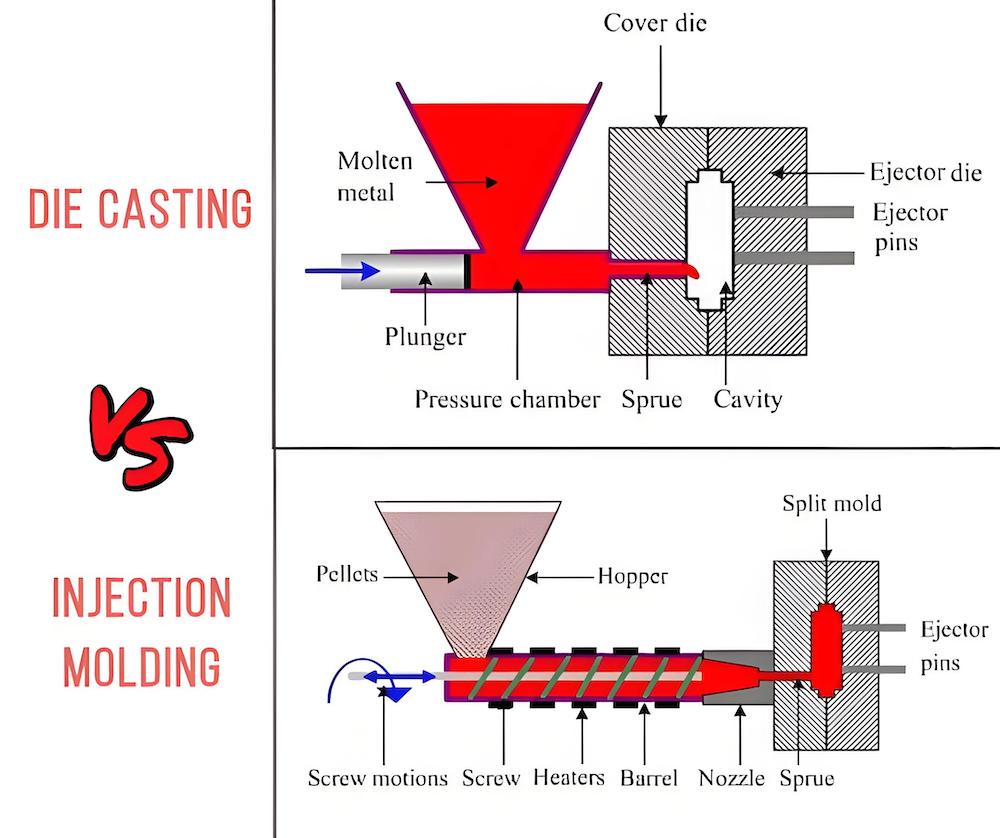

The fundamental difference between MIM and die casting lies in their processes. MIM involves creating a feedstock of metal powder and binder, which is then injected into a mold. In contrast, die casting uses molten metal, which is injected into a mold under pressure. This distinction leads to differences in the types of parts that can be produced and the materials used. Understanding these differences is crucial for manufacturers when selecting the appropriate method for their specific applications.
MIM is capable of using a broader range of materials, including those that are difficult to cast. This versatility allows for the production of parts with specific properties tailored to their applications. Die casting, while limited to certain metals, excels in producing parts with excellent mechanical properties and surface finishes. The choice of material can significantly influence the performance and durability of the final product, making it essential for manufacturers to consider their material options carefully.
MIM typically offers tighter tolerances and superior surface finishes compared to die casting. This precision makes MIM the preferred choice for applications where dimensional accuracy is critical, such as in the aerospace and medical industries. Die casting, while still capable of producing high-quality parts, may not achieve the same level of precision. Manufacturers must evaluate the specific requirements of their projects to determine which process will best meet their quality standards.
When it comes to production volume, die casting is more efficient for high-volume runs due to its rapid cycle times. MIM, on the other hand, is better suited for lower volume production where the complexity of the parts justifies the higher costs. The cost per part in die casting decreases significantly with increased production, making it a cost-effective option for mass production. Manufacturers should analyze their production forecasts and budget constraints to make an informed decision about which process aligns with their business goals.
MIM is widely used in industries that require high precision and complex geometries. Common applications include:
Medical Devices: Components such as surgical instruments and implants benefit from the precision and biocompatibility of MIM-produced parts. The ability to create intricate designs allows for the development of advanced medical technologies that improve patient outcomes.
Aerospace: Lightweight and strong components for aircraft and spacecraft are often produced using MIM. The aerospace industry demands high-performance materials that can withstand extreme conditions, making MIM an ideal choice for critical components.
Consumer Electronics: Small, intricate parts for devices like smartphones and laptops are ideal candidates for MIM. As consumer electronics continue to evolve, the need for compact and efficient components drives the demand for advanced manufacturing techniques like MIM.
Die casting is prevalent in industries that require high-volume production of durable parts. Typical applications include:
Automotive: Engine components, transmission housings, and other critical parts are often produced using die casting due to its efficiency and strength. The automotive industry relies on die casting to produce lightweight yet robust components that enhance vehicle performance and fuel efficiency.
Electronics: Housings for electronic devices and components benefit from the dimensional accuracy of die casting. As technology advances, the demand for high-quality enclosures that protect sensitive electronics continues to grow.
Industrial Equipment: Many industrial machines and tools utilize die-cast parts for their durability and cost-effectiveness. The ability to produce large quantities of reliable components makes die casting a preferred choice in the manufacturing of industrial equipment.
When deciding between Metal Injection Molding and Die Casting, it is essential to consider the specific requirements of your project. If you need high precision, complex geometries, and are working with lower volumes, MIM may be the better choice. Conversely, if you require high production rates and are working with larger parts, die casting could be more suitable.
Ultimately, understanding the strengths and limitations of each process will help you make an informed decision that aligns with your manufacturing needs. Whether you choose MIM or die casting, both methods offer unique advantages that can enhance your production capabilities and product quality. By carefully evaluating your project requirements and production goals, you can select the most appropriate manufacturing process to achieve success in your industry.
Metal Injection Molding can utilize a variety of materials, including stainless steel, titanium, cobalt-chromium alloys, and various other metal powders. This versatility allows manufacturers to tailor the material properties to meet specific application requirements, such as strength, corrosion resistance, and biocompatibility.
The cost of production in Metal Injection Molding is generally higher for low-volume runs due to significant initial tooling and setup costs. However, as production volumes increase, the cost per part can become more economical. In contrast, Die Casting is more cost-effective for high-volume production, as the cost per part decreases significantly with larger production runs, despite high initial mold costs.
Industries that benefit most from Metal Injection Molding include aerospace, medical devices, consumer electronics, and automotive. These sectors require high precision, complex geometries, and the ability to produce small, intricate parts that meet stringent quality standards.
While Die Casting can produce parts with some complexity, it is generally less versatile than Metal Injection Molding for intricate designs. Die Casting is better suited for simpler shapes and larger components, whereas MIM excels in creating highly detailed and complex geometries.
Metal Injection Molding tends to generate less waste since the metal powder can be reused, contributing to a more sustainable manufacturing process. Die Casting, on the other hand, can produce more scrap material, especially if extensive machining is required post-casting. However, both processes can be optimized for sustainability through careful design and material selection.
