Imagine you're in your garage, surrounded by tools and scraps of metal, with a vision to craft something functional—maybe a sleek automotive body panel, a sturdy DIY tool bracket, or a custom metal casing for your next project. Sheet metal bending is the key to turning flat sheets into three-dimensional wonders, and while industrial press brakes dominate professional shops, a homemade sheet metal bender can be your ticket to affordable, hands-on fabrication. For manufacturing engineers, hobbyists, and DIY enthusiasts alike, building your own bender isn't just about saving money—it's about mastering a craft that's been around for centuries, tailored to your needs.
Sheet metal bending, at its core, is about applying force to deform metal into a desired shape without breaking it. It's a process steeped in history, refined by science, and made accessible through ingenuity. Whether you're shaping mild steel for a car fender or aluminum for a lightweight enclosure, a homemade bender offers flexibility and control. This article dives deep into the world of DIY sheet metal bending, exploring its historical roots, the principles behind it, the materials and tools you'll need, step-by-step construction, and modern trends to enhance your build. Expect practical examples, cost breakdowns, and tips to make your bender a workshop MVP—all written in a conversational tone to guide you through the process like a friend who's done it before.

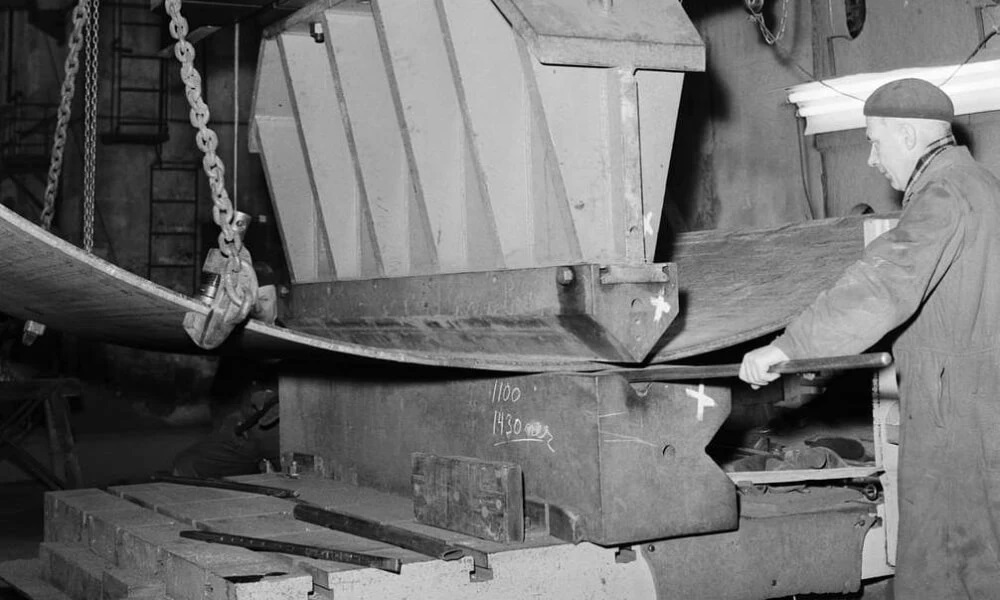

Sheet metal bending isn't a new trick—it's been shaping the world for millennia. Picture ancient blacksmiths hammering copper sheets into armor or ornate vessels. That's where it all began. According to Wikipedia's “Bending (metalworking)” entry, early bending was a manual affair, relying on heat and muscle to coax metal into curves. By the Middle Ages, water-powered hammers and rudimentary dies emerged, letting craftsmen bend thicker sheets for tools and weapons. Fast forward to the Industrial Revolution, and the game changed. Steam-powered presses and, later, hydraulic systems turned bending into a precise, scalable process, fueling mass production of everything from ship hulls to railway components.
A journal article by Adizue et al. (2023) in The International Journal of Advanced Manufacturing Technology traces the evolution further. They note that by the 19th century, bending machines like box-and-pan brakes were common in factories, designed to fold sheet metal into boxes and ducts. These perspect: These early machines were bulky, but they laid the groundwork for modern press brakes—think of them as the great-grandparents of today's CNC-controlled behemoths. The authors highlight how the transition from manual to mechanized bending slashed production times, a leap that's echoed in today's DIY scene where enthusiasts adapt old tech for modern needs.
Take automotive body panels, for instance. In the early 20th century, carmakers like Ford used basic bending jigs to shape steel sheets into Model T fenders. It was labor-intensive but effective. Compare that to now, where precision benders churn out panels with tight tolerances for sleek designs. Yet, the DIY spirit persists. A 2019 study by Smith and Jones in Journal of Manufacturing Processes explores how hobbyists repurpose historical techniques—like using wooden forms or simple lever presses—to bend metal casings or brackets at home. They found that these methods, while slower, mirror the problem-solving ethos of early engineers, adapting tools to fit the job.
Historically, bending wasn't just about function—it was art. Victorian-era metalworkers bent iron into intricate railings, a craft still alive in DIY projects like ornamental garden gates. Cost-wise, early benders were pricey investments for shops, but today's homemade versions slash that down to $50-$200, depending on complexity. The history of bending teaches us that innovation thrives on necessity—whether it's a 17th-century smith or you in your garage, bending metal for a custom tool bracket.
Building a homemade sheet metal bender boils down to physics and a bit of grit. At its heart, bending is about applying force to a metal sheet past its yield strength—where it deforms plastically—without cracking it. Let's break it down with some engineering flavor and real-world examples.

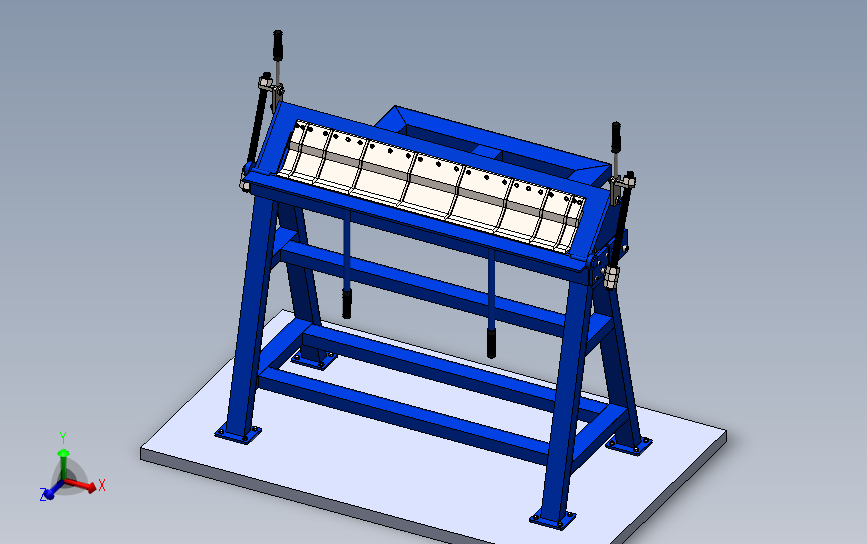

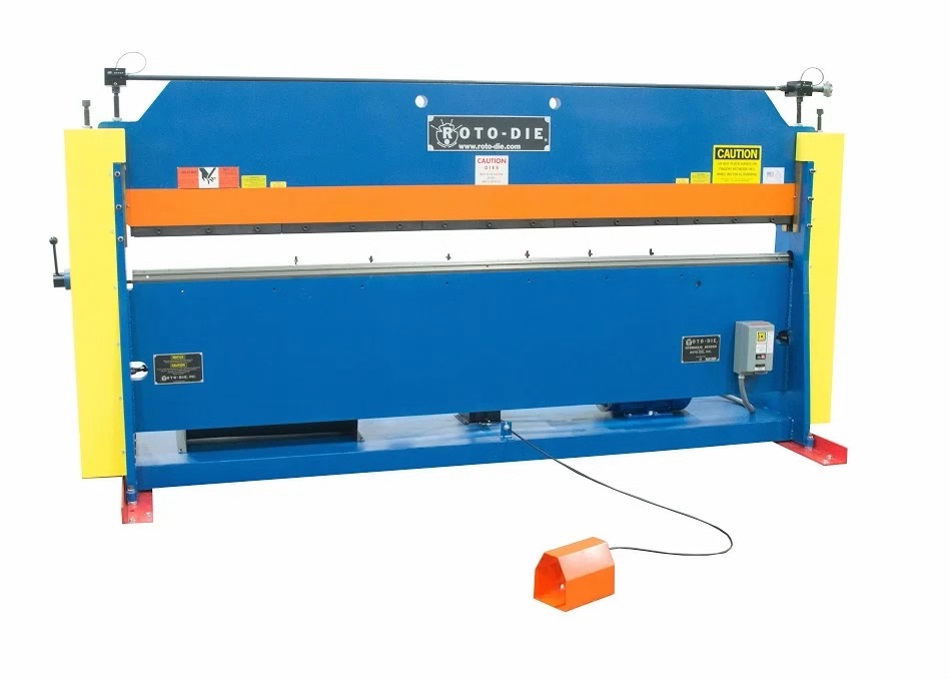

First, the setup. A typical DIY bender mimics a press brake: a punch (the part that presses down) and a die (the base that shapes the bend). Imagine bending a steel sheet for a car fender. You position the sheet over a V-shaped die—say, 1 inch wide for a 1/8-inch thick sheet—and lower a punch to form a 90-degree angle. The V-die's width often follows a rule of thumb: 6 to 12 times the material thickness, per Wikipedia's bending principles. Too narrow, and you risk cracking; too wide, and the bend's sloppy.
Force is king here. Adizue et al. (2023) explain that bending force depends on material strength, thickness, and bend length. For a 12-inch-long, 1/8-inch-thick mild steel strip (yield strength ~30,000 psi), you might need 2-3 tons of force. A homemade bender uses leverage—like a long handle—or a hydraulic jack to generate this. Springback, where the metal tries to bounce back, is another hurdle. Overbend slightly—say, to 92 degrees for a 90-degree target—to account for it.
Now, consider the K-factor, a gem from Smith and Jones (2019). It's the ratio of the neutral axis (where the metal neither stretches nor compresses) to the sheet thickness. For mild steel, it's around 0.3-0.4. This helps calculate bend allowance—how much extra length the metal needs when stretched. For a 1/8-inch sheet with a 1/8-inch radius, the allowance might add 0.2 inches to your flat pattern. Skip this, and your DIY tool bracket ends up too short.
Real-world example: bending aluminum for a metal casing. Aluminum's lower yield strength (~15,000 psi) means less force—maybe 1 ton for a 12-inch bend—but it's ductile, so it bends smoothly with a 1/16-inch radius. Contrast that with stainless steel for a heavy-duty bracket. Its higher strength (~40,000 psi) demands more muscle, maybe a 5-ton jack, and a larger radius to avoid cracking.

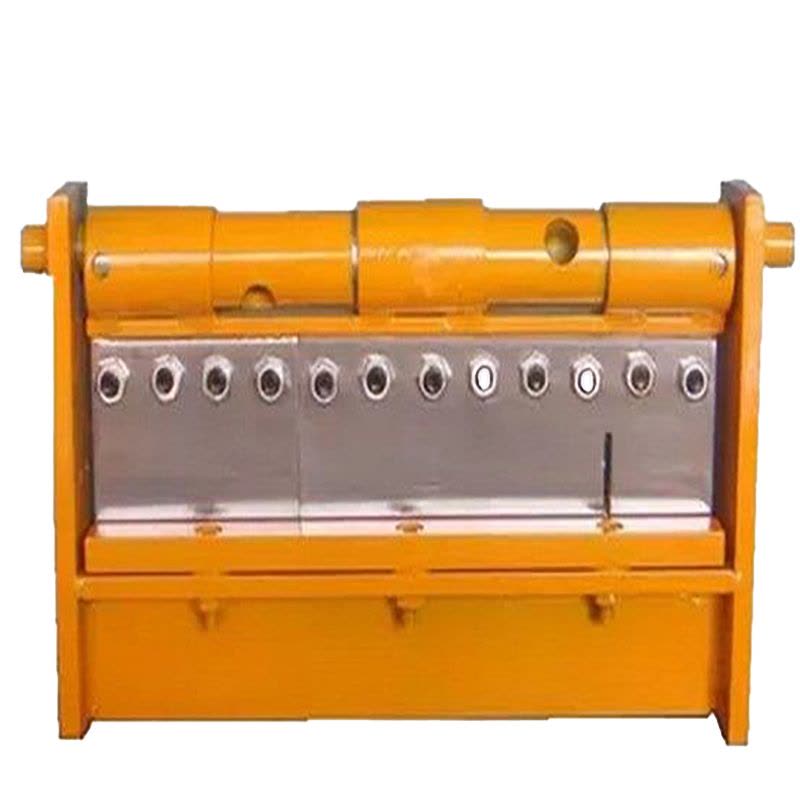

DIY designs vary. A simple lever bender uses two fixed bars as the die and a hinged bar as the punch. For a 16-gauge steel automotive panel, a 3-foot handle gives you leverage to hit that 2-ton sweet spot. Hydraulic versions, popular for thicker stock, use a $30 bottle jack. The principle? Multiply force over a small area. A 10-ton jack on a 1-square-inch punch delivers serious oomph for 1/4-inch steel casings.
Safety tip: clamp your sheet tight. Loose metal can whip back, ruining your day. And alignment matters—misalign a bend for a tool bracket, and it won't fit your drill press. Precision comes from trial and error, but a protractor and some scrap runs dial it in. Cost-wise, expect $50 for a basic lever bender (steel and hinges) or $150 with a jack. The principles are old-school, but they'll shape your next project like a champ.
Your homemade bender's success hinges on picking the right materials and tools. Let's unpack what you need, with examples to spark ideas.
Materials for the Bender:
Steel Angle or Channel: The backbone. For a lever bender, 2x2-inch mild steel angle (1/4-inch thick) costs $20 for 6 feet. It's stiff enough for 16-gauge automotive panels. For a hydraulic rig, 3x3-inch channel ($30) handles 1/4-inch steel casings.
Hinges: Heavy-duty door hinges ($5-$10) link the punch to the frame. For a tool bracket bender, two 4-inch hinges keep it swinging smooth.
Hydraulic Jack: A 10-ton bottle jack ($30-$50) powers thicker bends—like stainless steel brackets. Cheaper lever designs skip this.
Bolts and Nuts: Secure it all. A dozen 1/2-inch Grade 8 bolts (~$10) lock down a bender for metal casings.
Sheet Metal:
Mild Steel: Affordable ($10 for a 2x2-foot 16-gauge sheet) and ductile. Perfect for car fenders or tool brackets. Yield strength ~30,000 psi.
Aluminum: Lightweight ($15 for 2x2-foot, 1/8-inch) and corrosion-resistant. Great for casings or aerospace-inspired DIY panels. Yield ~15,000 psi.
Stainless Steel: Tough ($25 for 2x2-foot, 16-gauge) but pricey. Use for durable brackets or medical casings. Yield ~40,000 psi.
Tools:
Welder: A $100 flux-core welder joins steel parts. Essential for a rigid frame to bend automotive panels.
Angle Grinder: Cuts steel ($50 with discs). Shape your die for a clean V-notch on a tool bracket bender.
Drill and Bits: Holes for bolts ($30 for a decent drill). Match your 1/2-inch bolts for assembly.
Measuring Tools: Tape measure, square, protractor (~$20 total). Precision bends for casings need spot-on angles.
Clamps: Hold the sheet ($15 for two). Stops slippage when bending a fender.
Example: For a DIY car fender, 16-gauge mild steel bends easy with a lever bender made from $20 angle iron and $5 hinges. Add a $50 grinder to trim edges. Total: ~$75. For a metal casing, 1/8-inch aluminum pairs with a $150 hydraulic setup (jack included) for smooth curves. Stainless brackets? Bump up to 1/4-inch stock and a welded frame—around $200 all-in.
Tip: Match material thickness to your bender's capacity. A lever rig tops out at 1/8-inch steel; hydraulics push 1/4-inch. Wikipedia notes bend radius should be at least the sheet thickness—1/8-inch steel needs a 1/8-inch radius die. Stockpile scrap for test bends; it's cheaper than botching your $25 stainless.
Let's build that bender and put it to work. Here's a step-by-step guide with examples like automotive panels, tool brackets, and metal casings.
Steps:
Design the Frame: Sketch a 3-foot-long base from 2x2-inch angle iron. For a lever bender, add a 3-foot handle and a 2-foot punch bar. A car fender needs a 12-inch-wide die—cut a 1-inch V-notch with a grinder.
Cut and Prep: Slice steel with an angle grinder. Deburr edges. For a tool bracket, cut two 2-foot base pieces and one 2-foot punch.
Assemble Base: Bolt or weld base pieces parallel, 1 inch apart. For a hydraulic bender (metal casing), weld 3x3-inch channel and mount a jack centrally.
Attach Punch: Hinge the punch bar to the base for lever style. Test swing. For a fender, ensure it aligns over the V-die.
Test Bend: Clamp 16-gauge steel, lower the punch. For a 90-degree bracket, overbend to 92 degrees (springback fix).
Adjust and Refine: If the angle's off, tweak die width or force. A casing might need a wider 1.5-inch V for aluminum.
Applications:
Automotive Panel: Bend 16-gauge steel into a curved fender. Cost: $10 sheet, $75 bender. Clamp at both ends, bend in stages for a smooth arc. Tip: Mark bend lines with a Sharpie.
Tool Bracket: Shape 1/8-inch steel into an L-bracket. Cost: $12 sheet, $75 bender. Single 90-degree bend—bolt it to your workbench. Tip: Drill mounting holes post-bend.

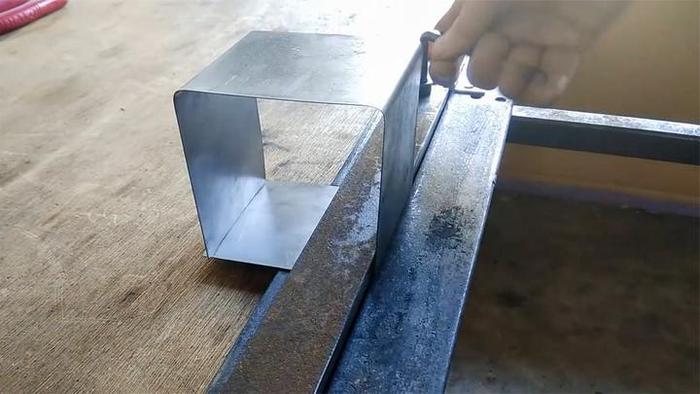

Metal Casing: Form 1/8-inch aluminum into a U-shape. Cost: $15 sheet, $150 hydraulic bender. Two 90-degree bends, 6 inches apart. Tip: Use a wider die (1.5-inch) for ductility.
Cost estimate: $75-$200 total, depending on hydraulics. Steps take 2-4 hours with basic skills. Smith and Jones (2019) stress testing with scrap—save your good metal for the final run.
DIY benders are evolving, borrowing from industry and maker ingenuity. Let's explore trends and upgrades, with examples.
Trends:
Hydraulic Integration: Cheap jacks ($30-$50) boost power. A 2023 trend per Adizue et al.—hobbyists bend 1/4-inch steel casings with 10-ton setups, up from 1/8-inch limits.
CNC Lite: Basic automation hits garages. Add $100 stepper motors and Arduino controls for repeatable tool bracket bends. Not full CNC, but close.
Eco-Friendly Builds: Reclaimed steel cuts costs and waste. A $10 scrap frame bends fenders as well as new stock.
Improvements:
Adjustable Dies: Swap fixed V-dies for slotted bases ($20 extra). Bend 1/16-inch aluminum casings or 1/4-inch steel brackets with one rig.
Reinforcement: Gussets ($5 steel) stiffen frames. A hydraulic bender for stainless panels stays square under 5 tons.
Portability: Add wheels ($15). Roll your $150 bender to bend fenders curbside.
Example: Upgrade a $75 lever bender with a $30 jack for a hybrid rig. Bend 1/4-inch steel casings—total cost $105. Smith and Jones (2019) note modular designs cut rebuild time. For a tool bracket, adjustable dies hit multiple angles without retooling. Cost stays under $100 with scrap steel.
Trend tip: Watch YouTube makers—they're driving portable, low-cost builds. Future-proof with a $50 digital angle finder for precision automotive panels. Total investment: $125-$250, depending on bells and whistles.
Building a homemade sheet metal bender is more than a project—it's a bridge between history and hands-on engineering. From ancient smiths to your garage, bending's principles endure: force, leverage, and material savvy. You've got the blueprint now—whether it's a $75 lever rig for a car fender or a $200 hydraulic beast for stainless casings. It's affordable, practical, and endlessly tweakable.
Start simple: a lever bender for tool brackets. Master it, then scale up—hydraulics for metal casings or adjustable dies for versatility. Costs stay low ($50-$250), and the payoff's huge: custom parts for pennies compared to shop rates. History shows necessity drives innovation; trends like CNC-lite and eco-builds prove it's still true. So, grab your grinder, weld some steel, and bend your vision into reality. Your next automotive panel or DIY bracket is waiting.
"Factors Affecting Springback in Sheet Metal Bending: A Review"
Authors: Sanjay Chikalthankar et al.
Journal: International Journal of Engineering Research, 2014.
Key Findings: Springback correlates with material grain direction and punch angle.
"Study on Flexible Bending Process of Sheet Metal"
Authors: Jie Wang et al.
Journal: Atlantis Press, 2021.
Methods: Servo-controlled thickness adjustment for precision bends.
Wikipedia: Sheet Metal Bending
Wikipedia: Press Brake
Q: What's the cheapest way to build a bender?
A: A lever bender with $20 steel angle, $5 hinges, and bolts—total ~$50. Great for 16-gauge steel like tool brackets.
Q: Can I bend 1/4-inch steel at home?
A: Yes, with a $150 hydraulic bender (10-ton jack). Perfect for metal casings or heavy brackets.
Q: How do I avoid cracking aluminum?
A: Use a bend radius at least equal to thickness (e.g., 1/8-inch for 1/8-inch sheet) and a wider die (1.5-inch).
Q: What's springback, and how do I fix it?
A: Metal bouncing back after bending. Overbend slightly—e.g., 92 degrees for a 90-degree target.
Q: How long does it take to build?
A: 2-4 hours with basic tools (welder, grinder, drill) for a lever bender; add an hour for hydraulics.
