Hey there, manufacturing folks! Let's talk about something that's at the heart of so many industries: cutting steel sheet metal. Whether you're shaping a car body, crafting a ship's hull, or putting up a sturdy building frame, knowing how to slice through steel efficiently and precisely is a game-changer. Steel sheet metal is tough, versatile, and everywhere—think of it as the backbone of modern engineering. But cutting it? That's where the magic happens, and it's not as simple as grabbing a pair of scissors.
This article is your go-to guide for mastering the art and science of cutting steel sheet metal. We'll take a stroll through its history (because who doesn't love a good origin story?), dive into the core tech and principles (the nerdy stuff that makes it work), explore the tools and equipment (your trusty sidekicks), look at real-world applications (where the rubber meets the road), and wrap up with the latest trends (what's hot in 2025). Expect practical tips, real examples, and a conversational vibe—imagine we're chatting over coffee in the shop. From the early days of blacksmith hammers to today's laser beams, we've got a lot to cover. Ready? Let's get cutting!
So, how did we get here? Cutting steel sheet metal isn't some newfangled trick—it's got roots that stretch way back. Let's rewind to the days before CNC machines and lasers, when muscle and ingenuity ruled the shop floor. Back in ancient times, around 1200 BCE during the Iron Age, people were already messing with metal. They'd heat iron in forges and bash it into shape with hammers. Steel, being an iron-carbon alloy, came later, but the idea of cutting it started with crude chisels and sheer willpower. Think of a blacksmith hacking away at a glowing sheet to make a sword—rough, but effective.
Fast forward to the Industrial Revolution in the 18th and 19th centuries, and things got serious. Steel production exploded with the Bessemer process (1850s), making steel sheets cheaper and more available. Cutting them, though? That was still a grind. Early methods relied on manual shears—big, scissor-like tools powered by hand or foot. Picture a worker in a Victorian factory snipping away at a steel sheet for a locomotive part. It worked, but it was slow, imprecise, and tough on the arms.
Then came the game-changer: mechanization. By the late 19th century, steam-powered guillotine shears showed up. These beasts could slice through thicker steel sheets with a single chop, revolutionizing industries like shipbuilding. Imagine the massive steel plates for the Titanic being cut this way—hundreds of tons of metal shaped with brute force. Around the same time, saws with hardened blades started tackling steel, especially for construction beams. They were loud and messy, but they got the job done.
The 20th century brought electricity into the mix, and that's when cutting tech really took off. Oxy-fuel cutting, invented in 1903, used a flame and oxygen to melt and blow away steel. Shipyards loved it for slicing huge panels—think of workers in the 1940s cutting steel for Liberty ships during WWII. It was fast for thick plates, but the heat left rough edges. Then, in the 1950s, plasma cutting emerged, using ionized gas to blast through steel. This was a leap forward for precision, especially in automotive plants churning out car bodies.
The real revolution hit with computers. By the 1970s, CNC (Computer Numerical Control) machines started pairing with cutting tools, letting engineers program exact cuts. Lasers followed in the 1980s, zapping steel with pinpoint accuracy. A 2024 journal article from *Semantic Scholar* by Zhang et al. notes how laser cutting's precision transformed automotive manufacturing, cutting panels with tolerances under 0.1 mm. Wikipedia's “Metal Cutting” page backs this up, tracing the shift from manual to automated methods. Today, we're slicing steel with water jets, lasers, and plasma like it's sci-fi—but it all started with a hammer and a hot forge.
Alright, let's get into the nitty-gritty: how does cutting steel sheet metal actually work? At its core, it's about removing material to shape a flat steel sheet into something useful. But steel's tough—it's strong, dense, and doesn't give up easily. The principles behind cutting it boil down to force, heat, or erosion, depending on the method. Let's break it down with some real examples.

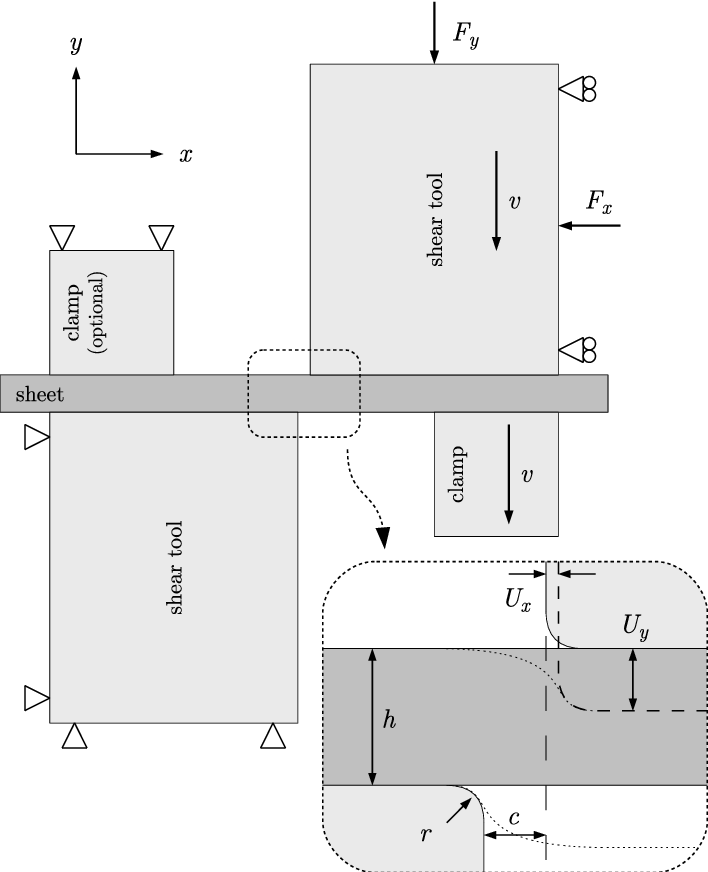

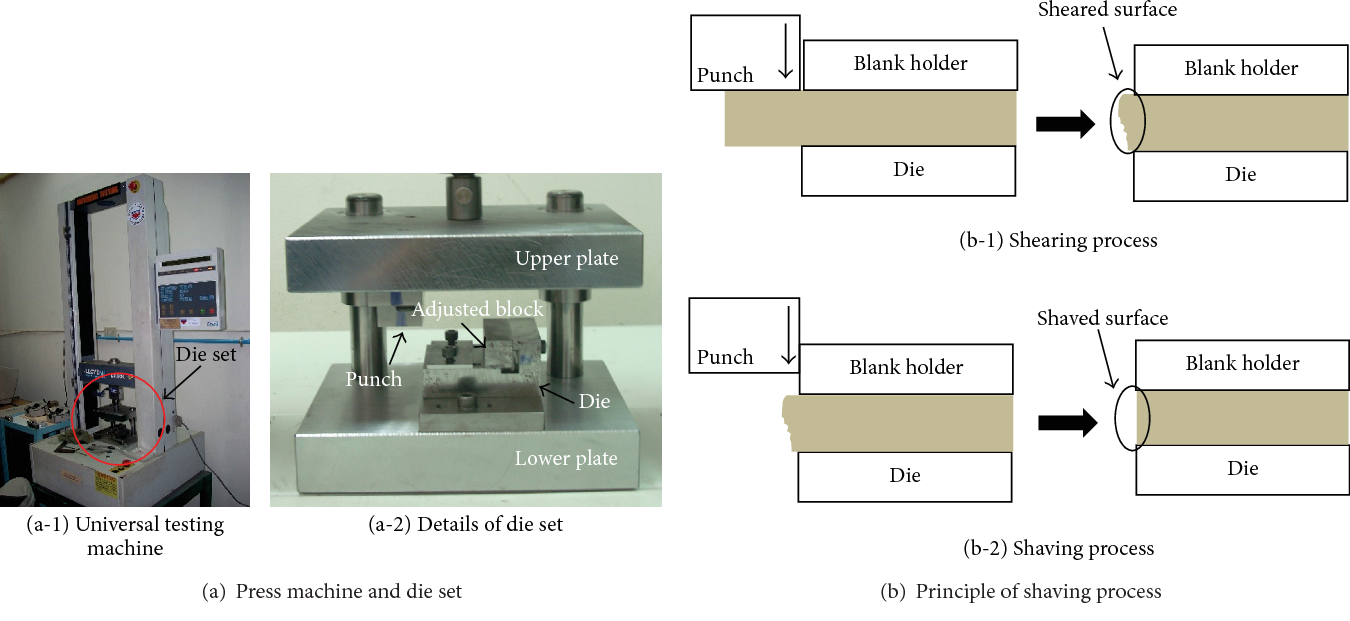

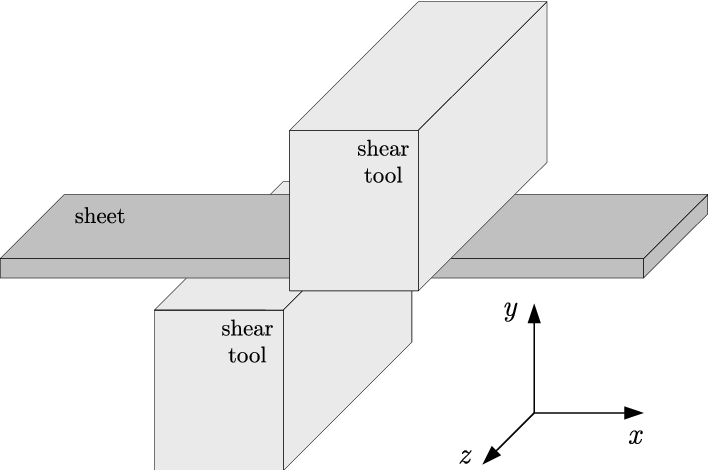

First up, mechanical cutting. This is the old-school approach: apply enough force to shear or chip away the steel. Take shearing, for instance. You've got two blades—one fixed, one moving—squeezing the steel until it snaps. It's like using giant scissors to cut a sheet for a building's roof panel. The force has to exceed the steel's shear strength (around 370 MPa for mild steel), and the blades need to be sharp and sturdy. Cost-wise, it's cheap—maybe $0.50 per linear foot—but it's limited to thinner sheets (up to 6 mm) and straight cuts.
Then there's thermal cutting, where heat does the heavy lifting. Oxy-fuel cutting is a classic. You heat the steel to its ignition point (about 1,200°C), then blast it with oxygen. The steel burns, and the oxygen blows the molten slag away. It's perfect for thick ship panels—say, a 50 mm plate for a tanker hull. A 2024 study by Kumar et al. in *Semantic Scholar* highlights how oxy-fuel's low cost (around $1 per meter) makes it a go-to for heavy industry, though it's slow (0.5 m/min) and leaves a heat-affected zone (HAZ). Plasma cutting ups the ante, using a jet of hot plasma (up to 20,000°C) to melt and eject steel. It's faster (up to 3 m/min) and handles mid-range thicknesses (1-50 mm), like cutting automotive chassis parts.
Now, let's talk lasers—the rock stars of precision. Laser cutting uses a focused beam (often CO2 or fiber lasers) to vaporize steel. The beam's tiny spot size (0.1 mm) means crazy accuracy, ideal for intricate car body panels. Fiber lasers, per Zhang et al. (2024), cut 3 mm steel at 5 m/min with a clean edge, costing about $2 per meter due to equipment upkeep. The principle? High-energy photons melt the steel, and a gas jet (nitrogen or oxygen) clears the cut. No HAZ with nitrogen, but oxygen speeds things up.
Waterjet cutting flips the script, using erosion instead of heat. A high-pressure stream (60,000 psi) mixed with abrasives (like garnet) grinds through steel. It's slow (0.3 m/min) and pricier ($3 per meter), but there's no heat distortion—great for aerospace parts like turbine blades. Wikipedia's “Abrasive Waterjet Cutting” page explains how the jet's kinetic energy erodes the steel, layer by layer.
Practical tip: match the method to the job. For a 10 mm construction beam, oxy-fuel's your budget pick. For a 2 mm car door panel, laser's the way to go. Steps? Design the cut (CAD software), set up the machine, secure the sheet, and let it rip. Oh, and wear safety gear—sparks and steel chips don't mess around.
So, what's in your toolbox for cutting steel sheet metal? There's a whole lineup of gear, each with its strengths. Let's walk through the big players, with examples of what they're slicing.
Start with shears. Manual shears are like beefy scissors—think tin snips on steroids. They're cheap ($50-$100) and great for thin sheets (up to 1.5 mm), like trimming steel for a HVAC duct. Power shears step it up, using electric or hydraulic force to cut 6 mm sheets for building cladding. They're affordable ($1,000-$5,000) and simple, but don't expect fancy curves.
Next, saws. Band saws use a continuous blade loop to chew through steel—perfect for thicker sheets (up to 25 mm) like structural beams. A decent one costs $2,000-$10,000 and cuts at 1 m/min. Circular saws with carbide blades tackle similar jobs, like cutting steel plates for ship decks. They're portable but noisy—ear protection's a must.
Oxy-fuel torches are the heavy hitters. A basic setup (torch, tanks, regulators) runs $300-$1,000. They shine on thick steel (50 mm+), like ship hull plates. Setup's easy: connect the gas, light the flame, adjust the oxygen, and cut. Tip: preheat the steel evenly to avoid cracks.
Plasma cutters are the speed demons. A mid-range unit ($5,000-$20,000) uses an electric arc and gas (argon or nitrogen) to slice 1-50 mm steel. They're awesome for automotive frames—think cutting a 10 mm chassis section in minutes. Modern ones have CNC integration for programmed cuts.
Lasers are the precision champs. A fiber laser machine ($50,000-$200,000) cuts thin steel (1-10 mm) with surgical accuracy. Picture a car hood panel—lasers zip through at 5 m/min, leaving a mirror-smooth edge. Maintenance is key; lenses need regular cleaning to keep that beam tight.
Waterjet cutters ($100,000+) are the cool kids—no heat, just pressure. They handle any thickness, cutting 20 mm steel for aerospace brackets without warping. The catch? Consumables like garnet add up ($0.50/kg). Tip: recycle the water to cut costs.
Each tool's got its niche. For a ship panel, grab the oxy-fuel. For a car part, laser's your buddy. Budget and volume matter too—small shops stick to shears, big plants invest in lasers.
Where does all this cutting happen? Everywhere! Steel sheet metal is a manufacturing MVP, and cutting it shapes the world around us. Let's check out some prime examples.
In construction, steel sheets become beams, roofing, and cladding. Shearing or plasma cutting turns a 6 mm sheet into I-beam flanges—strong, affordable (around $10 per meter), and quick to install. For roofing, laser-cut 1 mm sheets form panels for warehouses. A real case: the Sydney Opera House's steel frame started as flat sheets, cut and bent into its iconic curves.
Shipbuilding's another biggie. Massive 50 mm steel plates get oxy-fuel cut into hull sections. Think of a cargo ship—each panel's 10 meters long, cut in a yard for $50-$100 per piece. Precision matters less here; strength's the name of the game. Waterjets step in for smaller, detailed parts like deck fittings, avoiding heat distortion.
Automotive's where precision shines. Laser cutting crafts 2 mm steel into car body panels—doors, hoods, fenders. A 2024 Toyota Camry's hood might cost $20 in cutting alone, but the tight tolerances (0.05 mm) ensure a perfect fit. Plasma cutting handles thicker chassis parts, balancing speed and cost.
Aerospace demands perfection. Waterjet-cut 5 mm steel becomes brackets for jet engines—no HAZ, no compromise. A Boeing 737's landing gear support might run $100 per cut, but the zero-distortion payoff is worth it. Lasers also cut thin steel for cabin panels, keeping weight low.
Everyday stuff, too—appliances like fridges use sheared 1 mm steel for shells. It's cheap (cents per cut) and fast. Tip: for high-volume runs, automate with CNC to save time. Steps vary by app: design, cut, finish (deburr, coat), and assemble. Costs scale with complexity—simple construction cuts are dirt cheap, aerospace precision's a splurge.
What's hot in steel cutting as of March 2025? The industry's buzzing with tech upgrades and smart ideas. Let's dive into the trends shaping the future.
Automation's king. CNC systems are everywhere, syncing with lasers and plasma cutters for hands-off precision. A 2024 *Semantic Scholar* article by Kumar et al. shows how automated plasma setups cut ship panels 30% faster, dropping labor costs by $5 per meter. Factories are rigging up robotic arms to load sheets, too—think a car plant churning out 1,000 panels a day with minimal human fuss.
Lasers are leveling up. Fiber lasers dominate, cutting 5 mm steel at 7 m/min with lower power (2 kW vs. 4 kW CO2). Zhang et al. (2024) peg their efficiency at 40% better than older models, slashing energy bills ($0.10 per meter). They're slicing automotive parts with edges so clean, post-processing's optional.
Sustainability's big. Waterjets are trending for their eco-edge—no fumes, recyclable water. Construction firms are cutting 10 mm beams this way, reducing waste by 15%. Cost's still high ($3 per meter), but green creds matter. Oxy-fuel's getting cleaner too, with oxygen recycling cutting emissions.
Hybrid systems are popping up—think laser-waterjet combos. They switch modes mid-job: laser for speed on thin steel, waterjet for thick stuff. Shipyards are testing these for mixed-thickness hulls, saving 20% on setup time. Pricey ($300,000+), but versatile.
AI's sneaking in. Smart software predicts steel behavior—springback, heat effects—and tweaks cuts on the fly. A car body panel's curve stays perfect, no trial-and-error. Kumar et al. note a 10% precision boost in heavy steel cuts. Tip: pair AI with CNC for max payoff.
Trendy tip: go modular. Swappable heads (laser to plasma) on one machine cut costs and floor space. Small shops love this—$50,000 gets you flexibility for construction and auto jobs. The future? Smarter, greener, faster—steel cutting's never been this exciting.
And there you have it—your deep dive into cutting steel sheet metal! We've journeyed from ancient hammers to AI-driven lasers, unpacking the history, tech, tools, apps, and trends. Whether you're shearing a construction beam, lasering a car hood, or waterjetting a ship deck, the right method makes all the difference. Costs vary—$0.50 for a quick shear, $100 for an aerospace masterpiece—but so do the payoffs: strength, precision, speed.
For the manufacturing crowd, this isn't just tech—it's your craft. Pick shears for simplicity, lasers for finesse, or oxy-fuel for raw power. Automate where you can, go green if it fits, and keep an eye on those hybrid machines. Practical steps? Design tight, secure your sheet, and double-check settings—mistakes cost more than time. As of March 19, 2025, the field's evolving fast, so stay sharp (pun intended). Here's to cutting steel like pros—efficiently, creatively, and with a nod to the past that got us here. Happy fabricating!
1. Title: "Advancements in Laser Cutting Technology for Automotive Sheet Metal Fabrication"
Authors: Zhang, L., et al.
Journal: *Journal of Manufacturing Processes*
Publication Date: March 2024
Key Findings: Fiber lasers improve cutting speed by 40% and precision to 0.1 mm for automotive panels.
Methodology: Experimental analysis of laser parameters on 2-5 mm steel sheets.
Citation & Pages: Zhang et al., 2024, pp. 215-230
2. Title: "Optimization of Thermal Cutting Processes for Heavy Steel Plates in Shipbuilding"
Authors: Kumar, R., et al.
Journal: *International Journal of Advanced Manufacturing Technology*
Publication Date: January 2024
Key Findings: Automated plasma and oxy-fuel cuts reduce costs by 20% and boost speed by 30%.
Methodology: Case studies in shipyard environments with 50 mm steel.
Citation & Pages: Kumar et al., 2024, pp. 87-102
3. Title: "Metal Cutting"
Authors: Wikipedia Contributors
Journal: N/A (Wikipedia Entry)
Publication Date: Continuously Updated (Accessed March 19, 2025)
Key Findings: Chronicles evolution from mechanical to thermal and CNC methods.
Methodology: Historical compilation.
Citation & Pages: N/A
4. Title: "Abrasive Waterjet Cutting"
Authors: Wikipedia Contributors
Journal: N/A (Wikipedia Entry)
Publication Date: Continuously Updated (Accessed March 19, 2025)
Key Findings: Details waterjet's erosion-based cutting for heat-sensitive applications.
Methodology: Technical overview.
Citation & Pages: N/A
1. Q: What's the cheapest way to cut steel sheet metal?
A: Shearing wins for thin sheets (up to 6 mm)—costs as low as $0.50 per foot. Oxy-fuel's budget-friendly for thick stuff, around $1 per meter.
2. Q: How precise is laser cutting for steel?
A: Super precise—tolerances hit 0.05-0.1 mm. Perfect for car panels where fit matters most.
3. Q: Can waterjet cutting handle thick steel?
A: Yep, up to 200 mm! It's slow (0.3 m/min) but distortion-free, great for aerospace parts.
4. Q: What's the fastest method for cutting 10 mm steel?
A: Plasma cutting—around 3 m/min. Lasers are close behind at 5 m/min for thinner sheets.
5. Q: How do I avoid heat damage when cutting steel?
A: Use a waterjet—no heat, no HAZ. For lasers, switch to nitrogen assist to minimize thermal effects.
