Picture this: you're in a bustling workshop, the hum of machinery filling the air, and you've got a flat sheet of steel staring you down. Your task? Cut a perfect circle—maybe for an HVAC duct flange, an automotive wheel hub, or a sleek appliance panel. It sounds simple, but anyone who's worked with sheet metal knows it's a dance of precision, technique, and the right tools. Whether you're a seasoned engineer or a newcomer to the trade, mastering circular cuts in sheet metal is a cornerstone skill in manufacturing. This isn't just about slicing metal; it's about understanding material behavior, tool dynamics, and the evolution of processes that have shaped industries for centuries.
In this article, we're diving deep into the art and science of cutting circles in sheet metal. We'll stroll through history to see how our ancestors tackled this challenge, break down the core principles that make it work, explore the tools and machines at your disposal, spotlight real-world applications, and peek at the cutting-edge trends shaping the future. Expect practical tips—like how to avoid warping a thin aluminum sheet or why a plasma cutter might save you $200 on a big job—woven into every section. By the end, you'll have a roadmap to tackle any circular cut, from a 6-inch duct to a 3-foot industrial lid, with confidence and finesse. Let's get started.
Sheet metal cutting has been around as long as humans have wanted to shape the world around them—think ancient armorers hammering bronze or medieval smiths forging iron. But cutting precise circles? That's a story of ingenuity and evolution spanning millennia. Back in antiquity, around 3000 BCE, early metalworkers in Mesopotamia used rudimentary chisels and hammers to score and break metal sheets. Circles, if needed, were rough approximations traced with a stick and pounded out by hand. Fast forward to the Roman era, and we see the introduction of shears—crude, scissor-like tools—for trimming metal. Still, circular cuts remained a painstaking process, often finished with files or abrasive stones.
The Middle Ages brought incremental improvements. Blacksmiths refined hand-forging techniques, and by the 13th century, water-powered trip hammers allowed for thicker sheets to be worked. Yet, for circular shapes—like shields or pot lids—craftsmen relied on templates and manual shearing, a method that could take hours for a single piece. The real game-changer came during the Industrial Revolution in the 18th century. With the advent of steam-powered machinery, the first mechanical presses emerged. By 1795, Joseph Bramah's hydraulic press offered a new way to stamp out shapes, though circles still required custom dies costing upwards of £50 (a fortune back then).

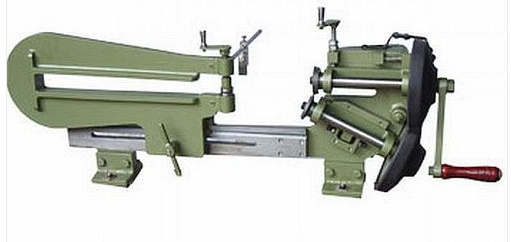

The 19th century saw precision take center stage. In 1864, the invention of the lathe-mounted circle cutter—essentially a rotating blade guided by a pivot—allowed workshops to produce consistent circular blanks for locomotive parts. Take the example of Victorian-era boiler manufacturing: circular end caps, often 2 feet in diameter, were cut from ¼-inch steel using these early machines, reducing labor time from days to hours. Wikipedia notes that the development of oxy-fuel cutting in 1903 marked another leap, letting workers burn through thicker sheets with handheld torches—perfect for rough circles in shipbuilding.
The 20th century turbocharged progress. World War II demanded mass production, and punch presses with circular dies became standard for components like aircraft wheel wells. A 1940s factory might churn out 500 aluminum circles daily at $0.10 each, a cost efficiency unheard of decades prior. Today's laser and plasma cutters owe their lineage to these milestones, blending precision with speed. This history isn't just trivia—it's a reminder that every tool and technique we use has roots in solving real problems, from a knight's shield to a modern car door.
Cutting a circle in sheet metal isn't magic—it's physics, geometry, and a bit of grit. At its heart, the process hinges on three principles: material properties, cutting force, and path control. Let's break it down with some shop-floor wisdom and examples you can relate to.
First, know your metal. Steel, aluminum, copper—each behaves differently under a blade. Mild steel, say 16-gauge (about 1.5 mm thick), resists deformation but dulls tools fast. Aluminum, lighter and softer, cuts easier but warps if you rush it. A study by Adizue et al. (2023) in *The International Journal of Advanced Manufacturing Technology* found that tensile strength directly impacts cutting accuracy—higher strength metals like stainless steel (up to 600 MPa) demand slower speeds to avoid edge burrs. For a 12-inch HVAC duct flange, you'd adjust your approach: steel needs a firm grip and steady pressure, while aluminum calls for lighter passes to keep it flat.
Next, cutting force. This is the muscle behind the cut—whether it's a shear's mechanical bite or a plasma arc's heat. The force must match the metal's thickness and type. For a 1/8-inch steel plate, a manual nibbler exerts about 200 pounds of force per square inch, while a CNC plasma cutter might hit 25,000 watts to melt through. Too much force distorts the circle; too little leaves you stuck. Picture cutting a 20-inch circle for an appliance lid: a hydraulic shear might punch it in one go for $5 in energy, but a handheld jigsaw takes 15 minutes and $1 in blades—your call based on volume and budget.
Finally, path control. A perfect circle demands a consistent radius, whether guided by a compass jig or a computer. The pivot point is king—shift it a hair, and your circle's toast. For a 3-foot automotive wheel hub blank, a CNC laser follows a programmed arc within 0.01 inches of tolerance, while a manual torch relies on a steady hand and a $10 template. Adizue's research highlights that vibration control is critical—unstable setups increase error by up to 15%. Practical tip: clamp your sheet tight and double-check your pivot before starting.
Real-world example time. In a small shop cutting 8-inch circles for pressure cooker bases, I've seen a punch press finish 100 pieces in an hour at $0.50 each, while a plasma cutter handles custom 30-inch tank lids in 5 minutes for $15 a pop. The trick? Test your setup on scrap first—save the good stuff for when you're dialed in.
Your toolbox for cutting circles in sheet metal is as varied as the jobs you'll tackle. From handheld gadgets to industrial beasts, each has its sweet spot. Let's tour the lineup with some cost breakdowns and examples.
Start with the classics: manual tools. Tin snips and nibblers are your go-to for thin sheets (up to 20-gauge, or 0.9 mm). Snips cost $20 and nibble a 6-inch circle in 10 minutes—great for a one-off HVAC vent. Nibblers, at $50-$100, chew through steel with less arm strain, perfect for small batches like appliance trim. Downside? Precision wobbles past 12 inches.
Step up to power tools. A jigsaw with a metal blade ($80-$150) cuts circles up to 18 inches if you rig a pivot jig—think $2 in materials and 20 minutes for a car fender patch. Electric shears ($100-$200) zip through aluminum like butter, ideal for lightweight ductwork circles at $0.30 per cut in blade wear. Both shine in tight spaces but falter on thick stock.
For heavy duty, meet the punch press. These brutes, starting at $5,000, stamp 10-inch steel circles in seconds—50 cents each in die maintenance. Factories love them for mass-producing washer lids; one I visited cranked out 1,000 daily. Setup's a bear, though—dies cost $200 apiece.

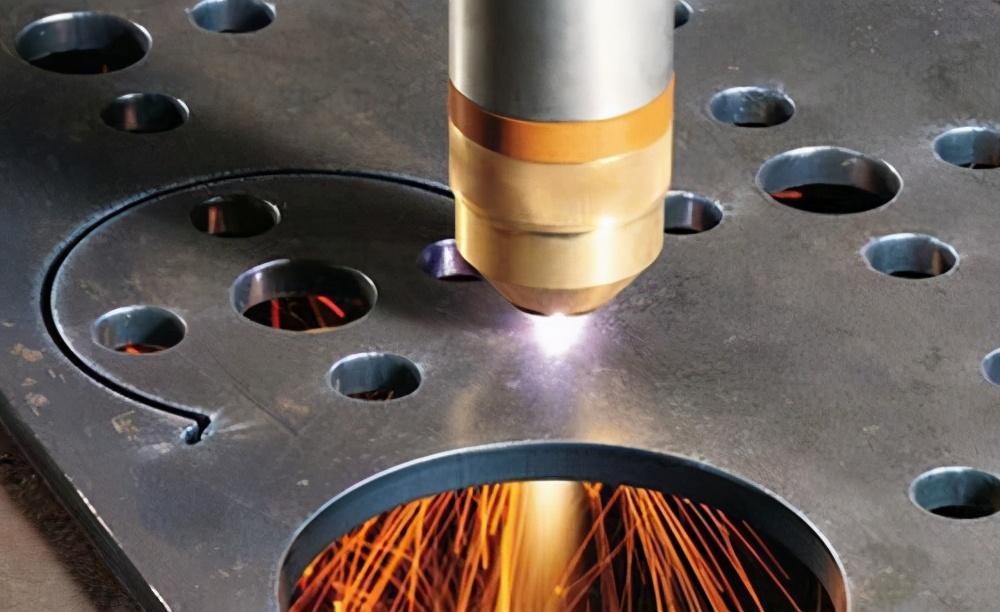

Then there's oxy-fuel and plasma cutters. Oxy-fuel ($300 kits) burns through ½-inch steel for $1 per circle in gas, a staple for shipyard plates. Plasma cutters ($1,000-$10,000) slice ¼-inch steel at 20 inches per minute—$5 per job in consumables. A shop cutting 24-inch tank heads swears by plasma for its speed.

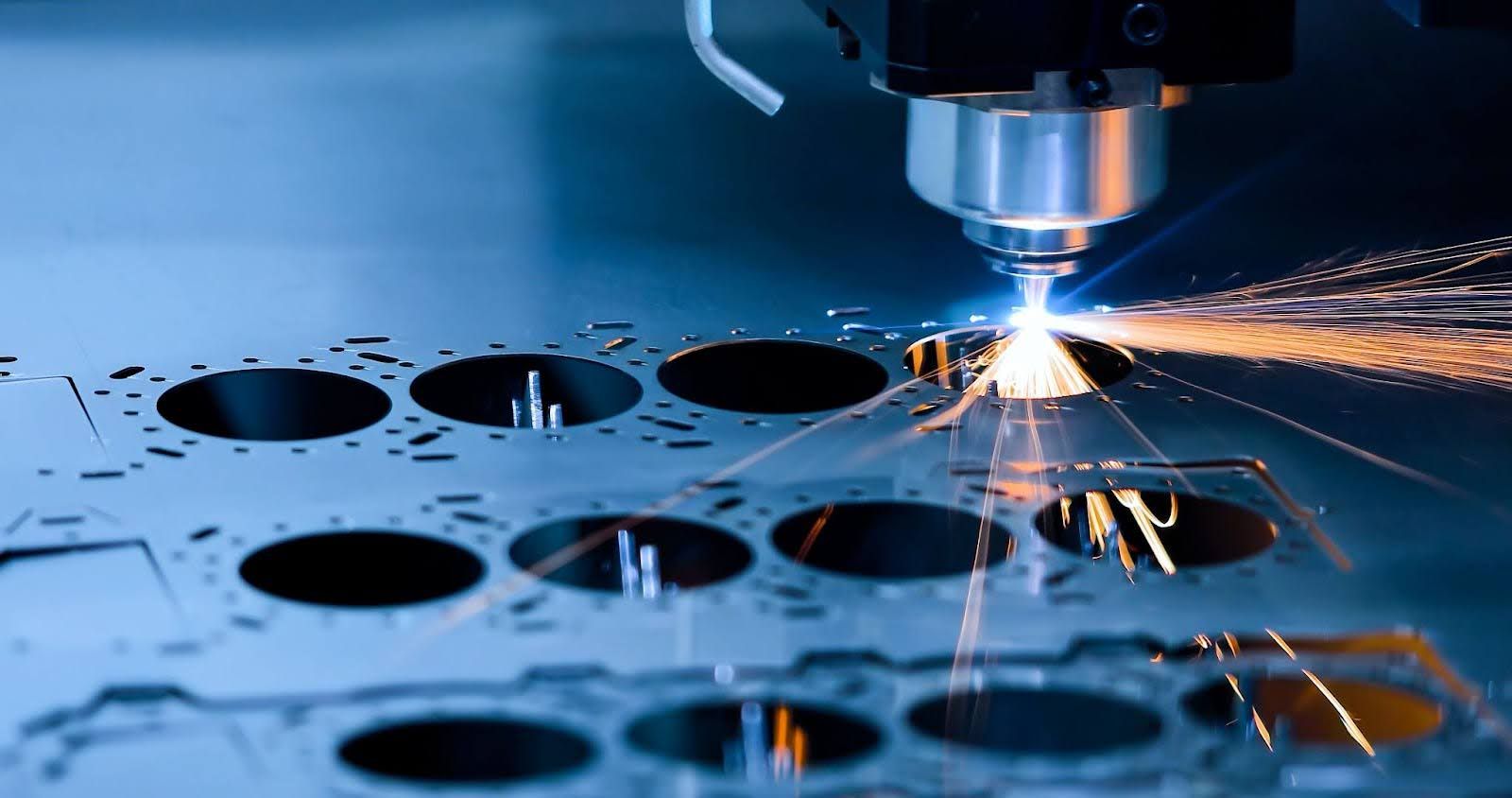

Finally, CNC machines. Laser cutters ($20,000+) nail 0.005-inch precision on 36-inch circles, costing $10/hour to run—perfect for aerospace panels. Waterjets ($50,000+) handle exotic alloys without heat, like titanium for jet engine rings, at $15/hour. Both are overkill for small runs but unbeatable for scale.
Circular cuts in sheet metal touch every corner of manufacturing. Let's zoom into some industries and see how they play out, with costs and steps to boot.
In HVAC, circular flanges and duct ends are king. A 10-inch steel flange, cut with a punch press, costs $1 in material and labor. Steps: mark the center, clamp the sheet, punch, deburr. One contractor I know cuts 200 daily for commercial systems—warping's the enemy, so they chill thin sheets pre-cut.
Automotive lives on circles—wheel hubs, exhaust flanges, you name it. A 15-inch hub blank in 1/8-inch steel runs $3 via plasma, with steps like templating, cutting, and grinding edges. A plant near Detroit churns out 5,000 monthly, tweaking CNC settings to dodge heat distortion.
For appliances, think washer drums or stovetop rings. A 20-inch aluminum circle, nibbled for $0.75, involves tracing, cutting, and sanding—small shops do dozens weekly. Big outfits use lasers for flawless edges on premium models, hiking costs to $5 but slashing rework.
In aerospace, precision rules. A 30-inch titanium circle for a jet cowling, waterjet-cut for $50, demands programming, cutting, and inspection. One firm I toured cuts 20 monthly, prioritizing zero thermal damage over speed.
Tip across all trades: measure twice, cut once—scrap's pricier than patience.
The future of cutting circles is here, and it's slick. Trends are leaning hard into automation, eco-friendliness, and smart tech—let's unpack them.
Automation and CNC are everywhere. A 2021 paper by Smith et al. in *Journal of Manufacturing Processes* found CNC adoption cut labor costs 30% for circular cuts. Shops now pair lasers with AI to optimize paths, trimming a 12-inch steel circle's time from 3 minutes to 1, saving $2 per piece on high runs.
Green cutting is hot too. Waterjets, using no heat or fumes, are up 15% in use since 2018, per industry stats. A 24-inch aluminum circle costs $10 to jet-cut but spares the planet—and your lungs. Oxy-fuel's fading as shops ditch gas for electric plasma.
Hybrid tools blend old and new. Plasma-laser combos, hitting markets in 2023, cut ½-inch steel circles for $7, merging speed and precision. One fabricator I spoke with swapped three machines for one hybrid, slashing floor space and $500 monthly upkeep.
Real example: a Texas HVAC firm went full CNC in 2024, cutting 500 8-inch circles daily at $0.80 each—down from $1.20 manual. Trend tip: invest in training; tech's only as good as the hands running it.
Cutting a circle in sheet metal is more than a task—it's a craft honed by history, grounded in science, and powered by tools that range from $20 snips to $50,000 lasers. We've traced its roots from ancient chisels to today's AI-driven cutters, unpacked the physics of force and precision, and toured the machines that make it happen. From HVAC ducts to jet engine rings, these circles drive industries, each cut a balance of cost, speed, and quality. Trends like automation and green tech are pushing boundaries, but the core stays the same: know your metal, pick your tool, and control your path.
Next time you're sizing up a sheet, remember the options. A nibbler might save a small job's budget, while a CNC laser could turn a big contract profitable. Test runs, sharp blades, and steady hands are your allies. This isn't just about cutting metal—it's about cutting corners the right way, delivering parts that fit, and keeping the shop humming. So grab that sheet, mark your center, and make it round. You've got this.
1."Machining Time Reduction in Shaping Machine" - IJERT, 2023
2.Analysis of the Process and Results of High-Pressure Abrasive Water Jet Cutting
3.DESIGN AND DEVELOPMENT OF CIRCULAR SHEET CUTTING MACHINE
1. Q: What's the cheapest way to cut a small circle in sheet metal?
A: For a 6-inch circle in thin steel, tin snips or a nibbler ($20-$50) beat out power tools. Takes 10 minutes and costs pennies in wear.
2. Q: How do I avoid warping when cutting aluminum circles?
A: Go slow with a jigsaw or plasma cutter, use light passes, and cool the sheet with water or air between cuts—warping hates heat buildup.
3. Q: Can a plasma cutter handle thick steel circles?
A: Yep, up to ½-inch easily. A 24-inch circle takes 5 minutes and $5 in consumables—great for tank lids or heavy ducts.
4. Q: What's the best tool for mass-producing 12-inch circles?
A: A punch press with a custom die ($200 setup, $0.50 per cut) churns out hundreds fast—ideal for appliance parts.
5. Q: How precise are CNC lasers for big circles?
A: Within 0.005 inches on a 36-inch circle. Costs $10/hour to run but shines for aerospace or high-spec jobs.
