Die casting is a highly efficient manufacturing process used to produce metal parts with intricate shapes and high precision. This method is widely utilized in various industries, including automotive, aerospace, and electronics, due to its ability to create complex geometries and maintain tight tolerances. In this article, we will explore the die casting process in detail, covering its types, materials, advantages, and applications.
Die casting involves forcing molten metal into a mold cavity under high pressure. The process is characterized by its ability to produce parts with excellent surface finishes and dimensional accuracy. The molds, known as dies, are typically made from high-strength steel to withstand the high pressures and temperatures involved in the process. The precision of die casting makes it an ideal choice for producing components that require a high degree of detail and consistency, which is essential in industries where performance and reliability are paramount.
Die casting is crucial in modern manufacturing for several reasons:
Precision: The process allows for the production of parts with very tight tolerances, making it ideal for applications where accuracy is critical. This precision is particularly important in sectors like aerospace, where even minor deviations can lead to significant performance issues.
Complex Shapes: Die casting can create intricate designs that would be difficult or impossible to achieve with other manufacturing methods. This capability enables designers to innovate and create products that stand out in the market.
High Production Rates: The speed of the die casting process enables high-volume production, making it cost-effective for large runs of parts. This efficiency is a significant advantage in competitive industries where time-to-market is a critical factor.
The die casting process can be broken down into several key steps, each of which plays a vital role in ensuring the quality of the final product. Understanding these steps helps manufacturers optimize their processes and improve the overall quality of their castings.
Before the die casting process begins, the molds must be prepared. This involves cleaning and applying a release agent to the mold surfaces to ensure that the finished parts can be easily ejected after cooling. The design of the mold is critical, as it must accommodate the flow of molten metal and allow for proper cooling. Additionally, the mold design can include features such as cooling channels to enhance the cooling process, which can significantly affect the cycle time and quality of the final product.
The metal to be cast is melted in a furnace. The choice of metal depends on the application and can include aluminum, zinc, magnesium, and copper alloys. The molten metal must reach a specific temperature to ensure proper flow into the mold. The melting process is carefully monitored to maintain the desired temperature and composition, as impurities or incorrect temperatures can lead to defects in the final casting.

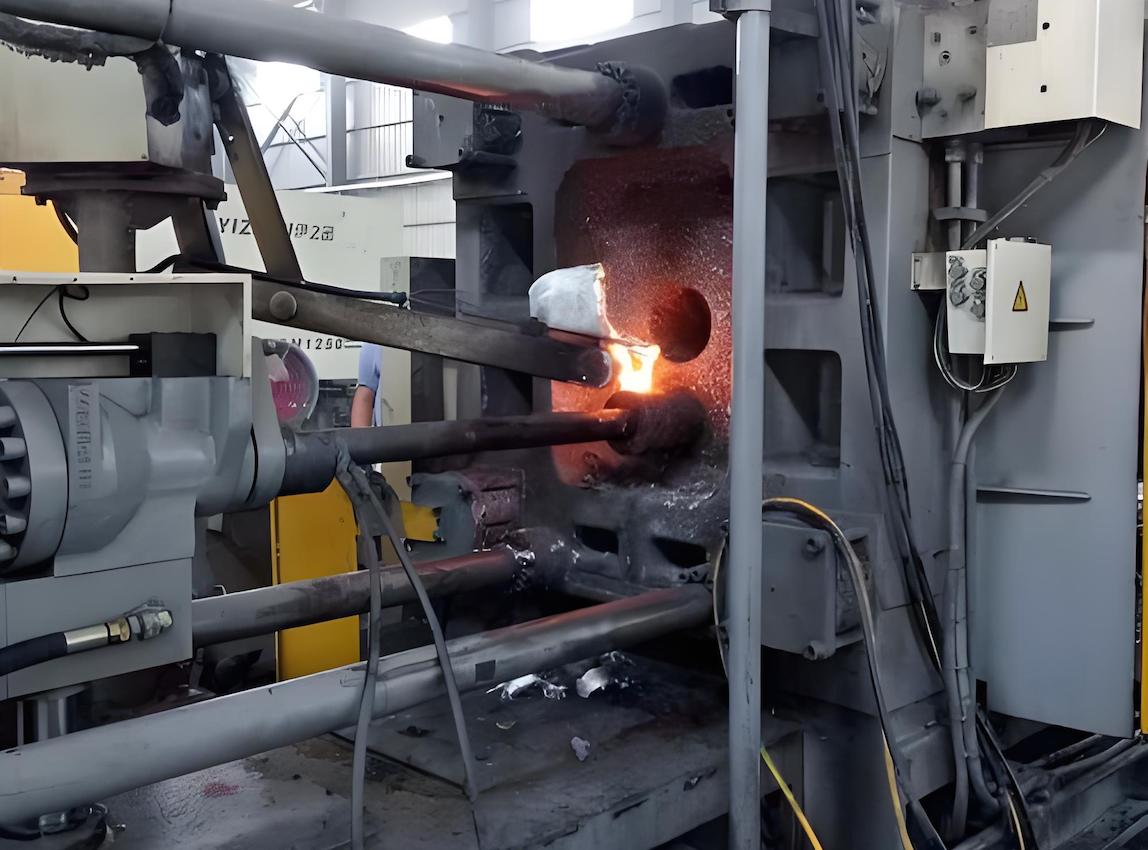

Once the metal is melted, it is injected into the mold under high pressure. This is done using a die casting machine, which can be either a hot chamber or cold chamber machine, depending on the type of metal being used.
Hot Chamber Die Casting: This method is used for metals with low melting points, such as zinc and magnesium. The melting pot is part of the machine, allowing for quick injection of molten metal. This setup minimizes the time between melting and injection, which is crucial for maintaining the quality of the casting.
Cold Chamber Die Casting: This method is used for metals with higher melting points, such as aluminum. The molten metal is poured into the injection chamber before being forced into the mold. This process requires more time and energy but allows for greater flexibility in the choice of materials.
After the molten metal is injected into the mold, it begins to cool and solidify. The cooling time depends on the thickness of the part and the type of metal used. Proper cooling is essential to ensure that the part retains its shape and dimensional accuracy. The cooling process can be optimized by controlling the temperature of the mold and the environment, which can lead to improved mechanical properties in the final product.
Once the metal has solidified, the mold is opened, and the casting is ejected. Ejection pins are often used to push the part out of the mold without damaging it. This step must be carefully controlled to avoid defects in the finished product. The design of the ejection system is critical, as it must provide sufficient force to remove the part while minimizing the risk of damage.
After ejection, the cast parts may require additional finishing operations, such as trimming, machining, or surface treatment. These processes enhance the appearance and functionality of the parts, ensuring they meet the required specifications. Finishing operations can also include processes like anodizing or powder coating, which improve corrosion resistance and aesthetic appeal.
Die casting can be categorized into two main types: hot chamber and cold chamber die casting. Each type has its advantages and is suited for different applications. Understanding these types helps manufacturers choose the right method for their specific needs.
Hot chamber die casting is ideal for metals with low melting points. The process is characterized by:
Efficiency: The molten metal is readily available in the machine, allowing for rapid injection cycles. This efficiency is particularly beneficial for high-volume production runs, where minimizing cycle time is essential.
Cost-Effectiveness: This method is generally less expensive due to lower equipment costs and faster production rates. The reduced cycle time translates to lower labor costs and increased output.
Cold chamber die casting is used for metals with higher melting points. Key features include:
Versatility: This method can accommodate a wider range of metals, including aluminum and copper alloys. This versatility allows manufacturers to select materials based on performance requirements rather than being limited by the die casting process.
Quality: Cold chamber die casting often results in higher-quality parts due to better control over the injection process. The ability to manage the temperature and flow of the molten metal leads to improved mechanical properties and surface finishes.
The choice of material is critical in the die casting process, as it affects the properties of the final product. Common materials used in die casting include:
Aluminum Alloys: Known for their lightweight and corrosion resistance, aluminum alloys are widely used in automotive and aerospace applications. Their excellent strength-to-weight ratio makes them ideal for components that require both durability and reduced weight.
Zinc Alloys: These alloys are favored for their excellent fluidity and ability to produce intricate shapes. Zinc die casting is often used for small, complex parts that require high precision.
Magnesium Alloys: Magnesium is the lightest structural metal, making it ideal for applications where weight reduction is essential. Its high strength and stiffness make it suitable for aerospace and automotive components.
Copper Alloys: Copper offers excellent electrical conductivity and is often used in electrical components. The ability to produce complex shapes with high conductivity makes copper die casting valuable in the electronics industry.
Die casting offers numerous advantages that make it a preferred manufacturing method for many industries:
The die casting process allows for the production of parts with tight tolerances, ensuring that they fit together correctly in assemblies. This precision is crucial in applications where components must work seamlessly together, such as in machinery and automotive systems.
Parts produced through die casting often require minimal finishing, as the process yields smooth surfaces that are aesthetically pleasing. This high-quality surface finish reduces the need for additional processing, saving time and costs in production.
While the initial setup costs for die casting can be high, the ability to produce large quantities of parts quickly makes it cost-effective for high-volume production runs. This cost efficiency is particularly beneficial for manufacturers looking to scale their operations without significantly increasing costs.
Die casting enables the creation of complex shapes and features, allowing designers to innovate without being constrained by manufacturing limitations. This design flexibility encourages creativity and can lead to the development of unique products that meet specific market needs.

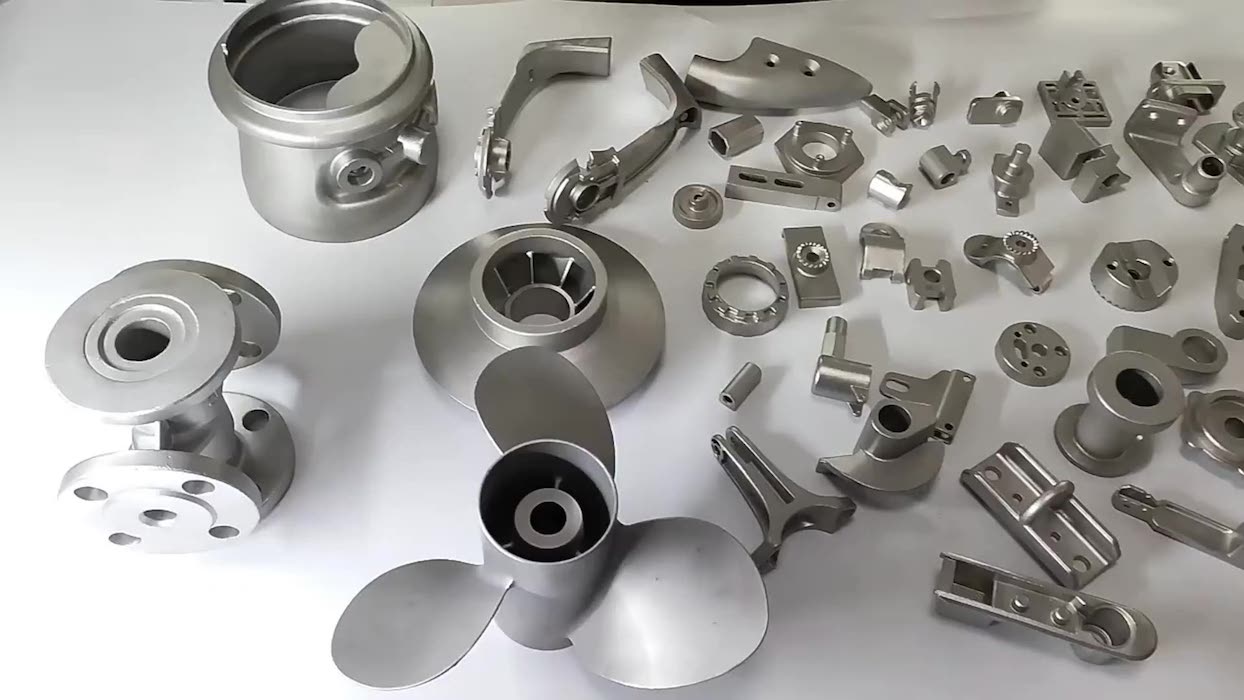

Die casting is used in a wide range of industries, each benefiting from the unique properties of the process:

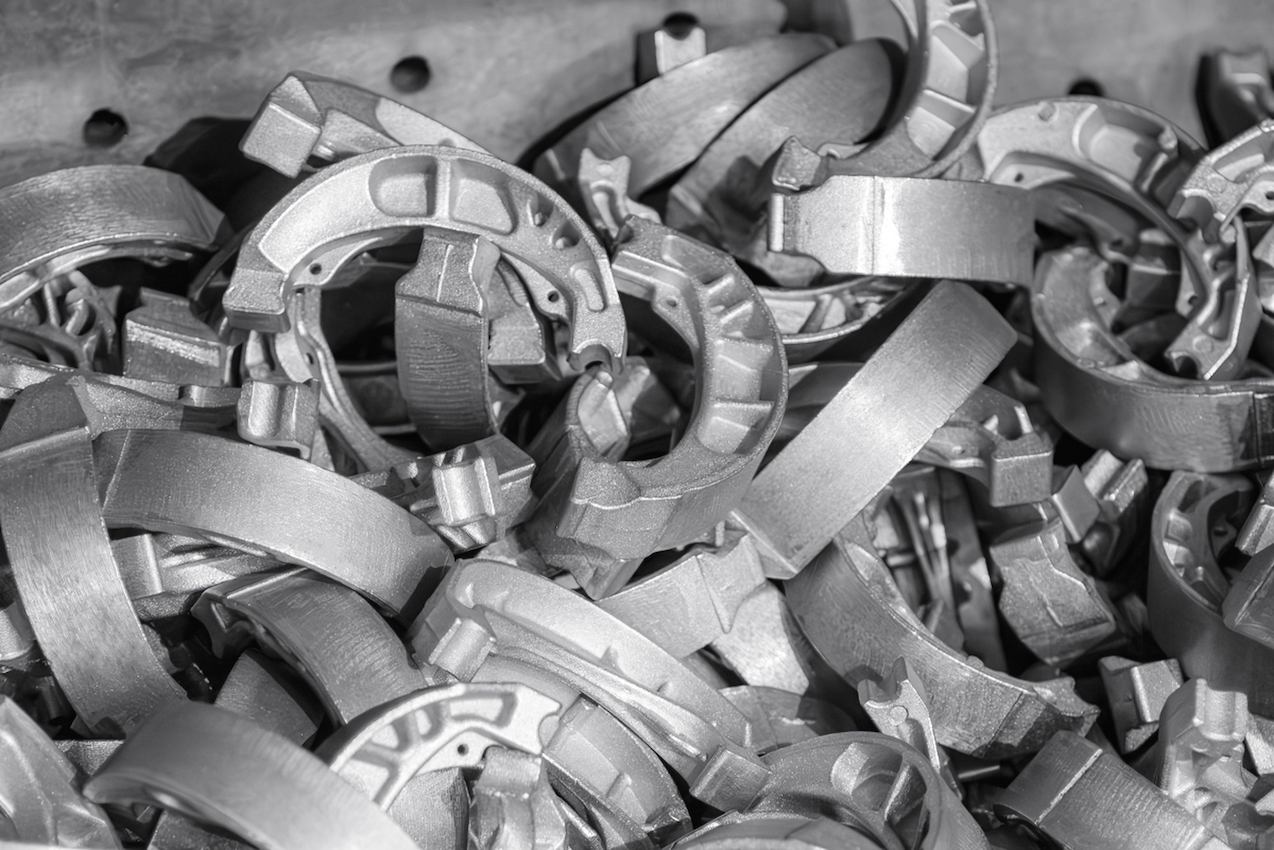

In the automotive sector, die casting is used to produce components such as engine blocks, transmission cases, and structural parts. The lightweight nature of die-cast aluminum and magnesium parts contributes to fuel efficiency and performance. As the automotive industry increasingly focuses on sustainability, the use of lightweight materials through die casting plays a crucial role in reducing emissions and improving overall vehicle efficiency.
The aerospace industry relies on die casting for producing lightweight, high-strength components that can withstand extreme conditions. Parts such as brackets, housings, and structural elements are commonly manufactured using this process. The stringent safety and performance standards in aerospace make die casting an ideal choice for producing reliable components that meet rigorous testing requirements.
Die casting is also prevalent in the electronics industry, where it is used to create housings and components for devices such as smartphones, computers, and appliances. The precision and surface finish of die-cast parts are critical for ensuring proper fit and function. As electronic devices become more compact and complex, the demand for high-quality die-cast components continues to grow.

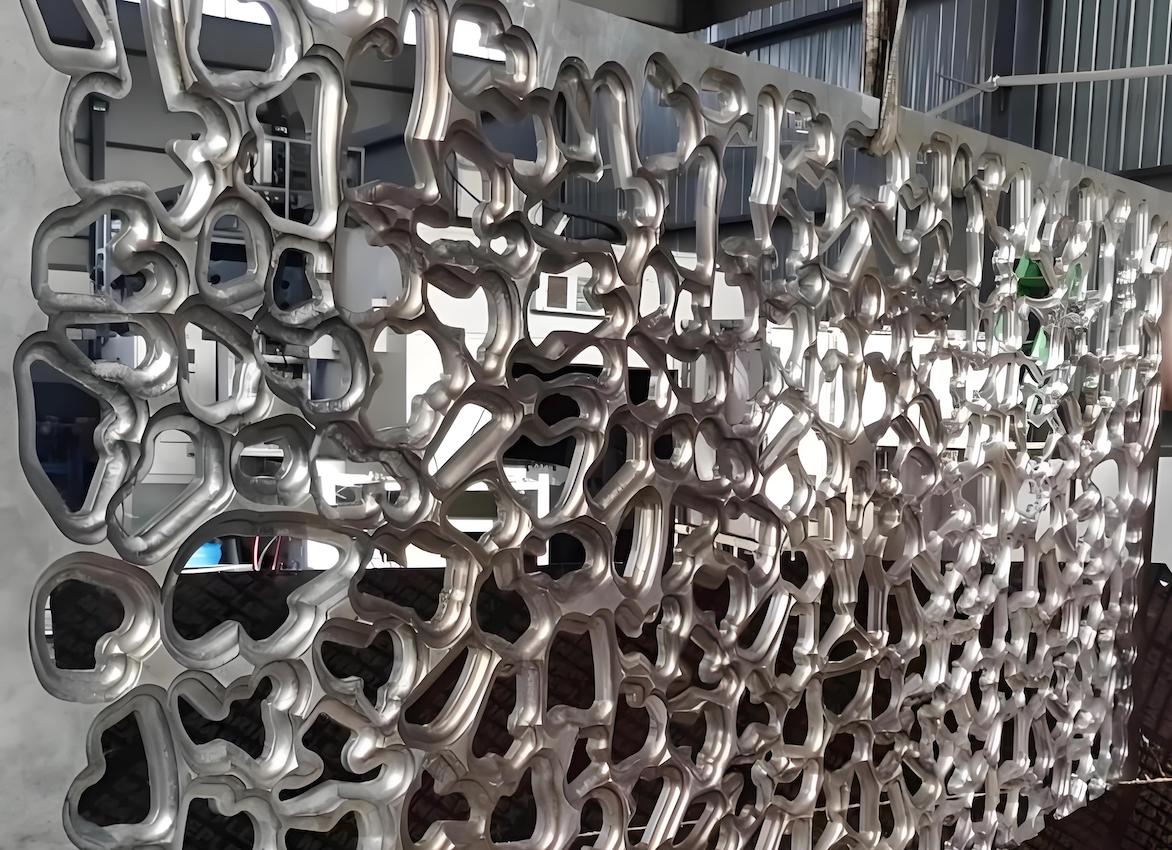

Many consumer products, including kitchen appliances, tools, and decorative items, are produced using die casting. The ability to create intricate designs at a low cost makes it an attractive option for manufacturers. This versatility allows companies to offer a wide range of products that appeal to diverse consumer preferences.
Die casting is a vital manufacturing process that combines efficiency, precision, and versatility. By understanding the intricacies of the die casting process, manufacturers can leverage its advantages to produce high-quality metal parts that meet the demands of various industries. As technology continues to advance, die casting will remain a key player in the evolution of manufacturing, enabling the creation of innovative products that enhance our daily lives. The ongoing development of new materials and techniques will further expand the possibilities of die casting, ensuring its relevance in the future of manufacturing.
Die casting offers several advantages, including high precision and accuracy, excellent surface finish, cost-effectiveness for high-volume production, and the ability to create complex shapes. These benefits make it particularly suitable for industries such as automotive and aerospace, where quality and efficiency are critical.
Common metals used in die casting include aluminum, zinc, magnesium, and copper alloys. Each metal has unique properties that make it suitable for specific applications, such as aluminum's lightweight and corrosion resistance or zinc's excellent fluidity for intricate designs.
In hot chamber die casting, the melting pot is part of the machine, allowing for quick injection of low-melting-point metals like zinc. In contrast, cold chamber die casting requires the molten metal to be poured into the injection chamber before being injected into the mold, making it suitable for higher melting-point metals like aluminum.
Die casting is widely used in the automotive industry for components like engine blocks and transmission cases, in aerospace for lightweight structural parts, in electronics for housings and components, and in consumer products for items like kitchen appliances and tools.
Common finishing operations for die-cast parts include trimming, machining, and surface treatments such as anodizing or powder coating. These processes enhance the appearance, functionality, and durability of the parts, ensuring they meet specific requirements and standards.
