Sheet metal fabrication is a crucial process in various industries, including automotive, aerospace, and construction. Among the various cutting techniques employed in this field, laser cutting and plasma cutting are two of the most popular methods. Each technique has its unique advantages and applications, making them suitable for different types of projects. This article will explore the differences between laser cutting and plasma cutting, focusing on their processes, advantages, disadvantages, and applications in sheet metal fabrication.
Sheet metal fabrication involves the transformation of flat sheets of metal into specific shapes and sizes through various processes, including cutting, bending, and assembling. The choice of cutting method can significantly impact the quality, precision, and cost of the final product.
The cutting technique selected for a project can affect several factors, including:
Material Thickness: Different methods are suited for various thicknesses of metal. For instance, thinner materials may be more effectively cut with laser technology, while thicker materials may require plasma cutting.
Precision: The level of detail required in the cuts can dictate the choice of cutting method. Industries that demand high precision, such as aerospace and electronics, often prefer laser cutting for its ability to create intricate designs.
Cost Efficiency: Budget constraints may influence the selection of a cutting technique. While laser cutting may offer superior precision, the initial investment and operational costs can be higher than those associated with plasma cutting.
Production Speed: The time required to complete the cutting process can impact overall project timelines. In high-volume production environments, the speed of the cutting process can be a critical factor in meeting deadlines.

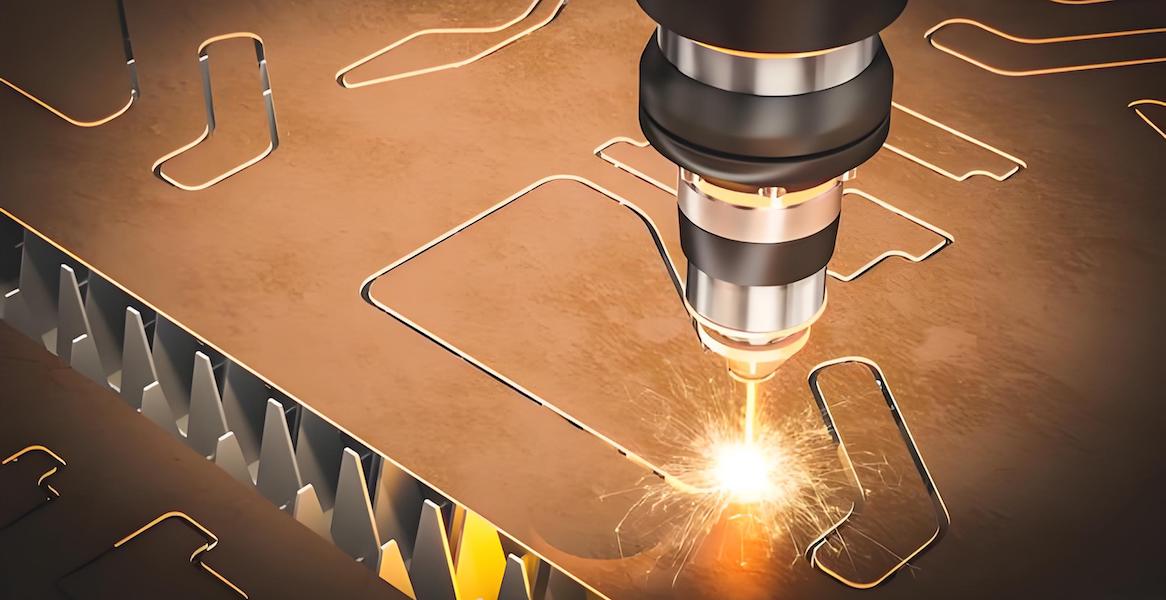

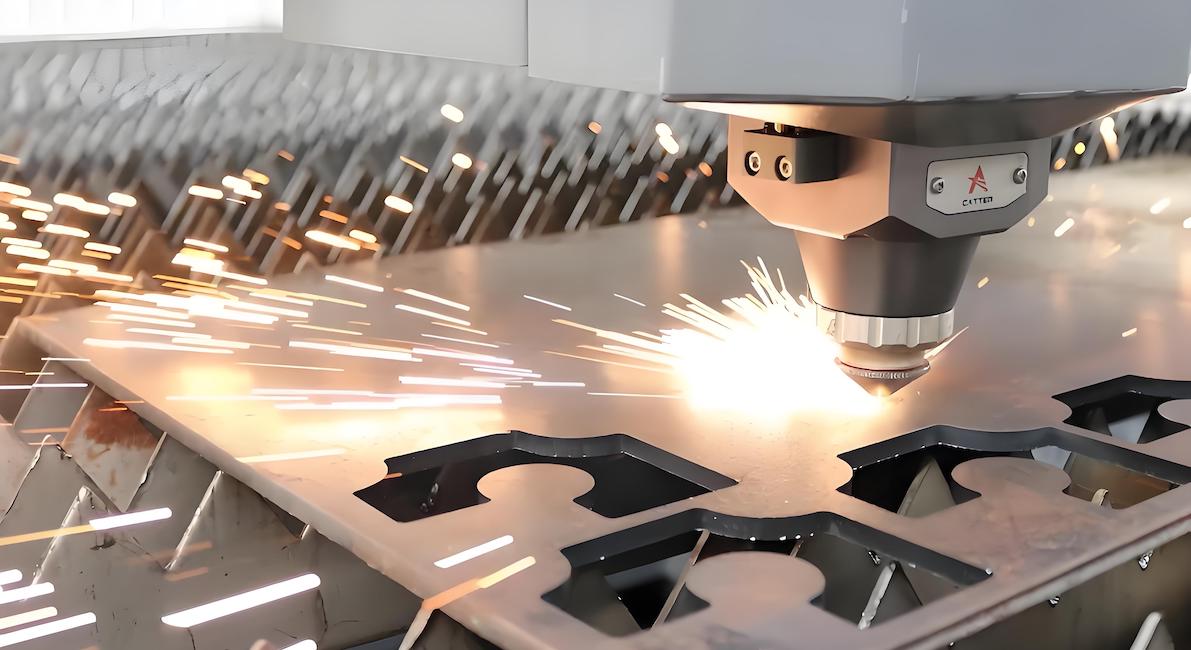

Laser cutting is a technology that uses a focused beam of light to cut through materials. The laser beam is generated by a laser source and directed through optics to focus on a small area of the material, melting or vaporizing it to create a cut. This method is known for its precision and versatility, making it a popular choice in various manufacturing sectors.
The laser cutting process involves several key steps:
Laser Generation: A laser source generates a high-intensity beam of light. This beam can be generated using different types of lasers, such as CO2 lasers or fiber lasers, each suited for specific applications and materials.
Focusing the Beam: The beam is focused through a lens to achieve a small spot size, increasing the energy density. This focused beam allows for precise cuts and intricate designs, which are essential in applications requiring high accuracy.
Material Interaction: The focused beam is directed onto the sheet metal, where it interacts with the material, causing it to melt or vaporize. The interaction is highly controlled, allowing for clean cuts with minimal waste.
Assist Gas: An assist gas, such as oxygen or nitrogen, is often used to blow away the molten material, ensuring a clean cut. The choice of assist gas can also affect the quality of the cut, with oxygen providing a faster cut but potentially leading to oxidation.
Laser cutting offers several benefits, including:
High Precision: Laser cutting can achieve intricate designs and tight tolerances, making it ideal for detailed work. This precision is particularly important in industries where even minor deviations can lead to significant issues.
Versatility: It can cut a wide range of materials, including metals, plastics, and wood. This versatility allows manufacturers to use a single cutting method for various projects, simplifying operations.
Minimal Heat Affected Zone: The focused nature of the laser minimizes the heat affected zone, reducing warping and distortion. This characteristic is crucial for maintaining the integrity of the material, especially in applications where dimensional accuracy is critical.
Automation: Laser cutting systems can be easily integrated into automated production lines, enhancing efficiency. Automation not only speeds up the cutting process but also reduces labor costs and the potential for human error.
Despite its advantages, laser cutting has some limitations:
Cost: The initial investment for laser cutting equipment can be high, making it less accessible for small businesses. Additionally, the maintenance and operational costs can also be significant, particularly for high-powered systems.
Material Limitations: While versatile, laser cutting is less effective on reflective materials, such as copper and aluminum, which can reflect the laser beam. This limitation can restrict the types of projects that can be effectively completed using laser cutting technology.

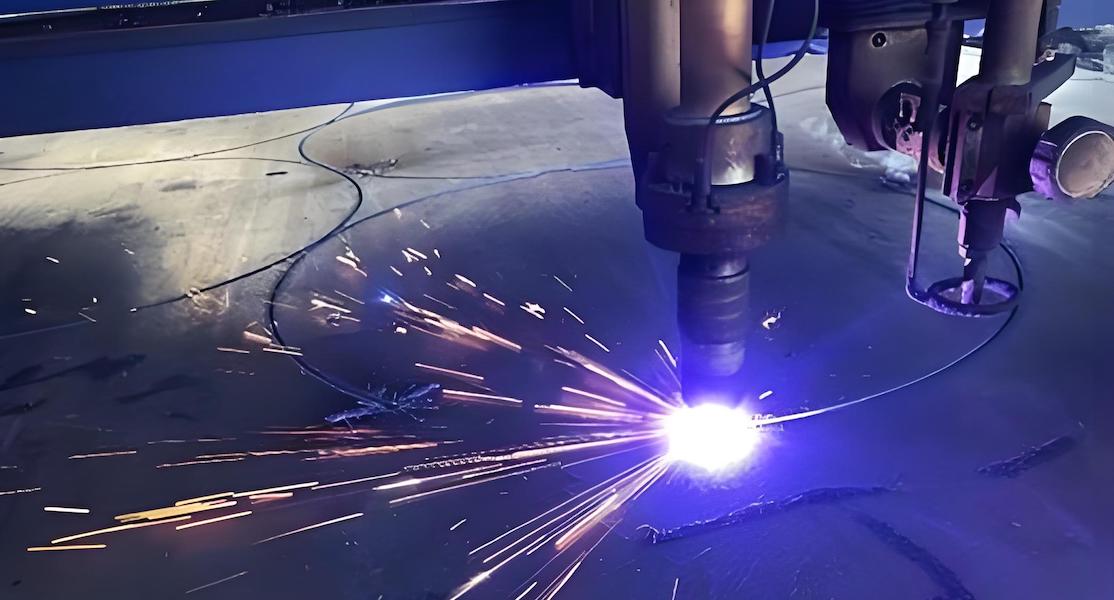

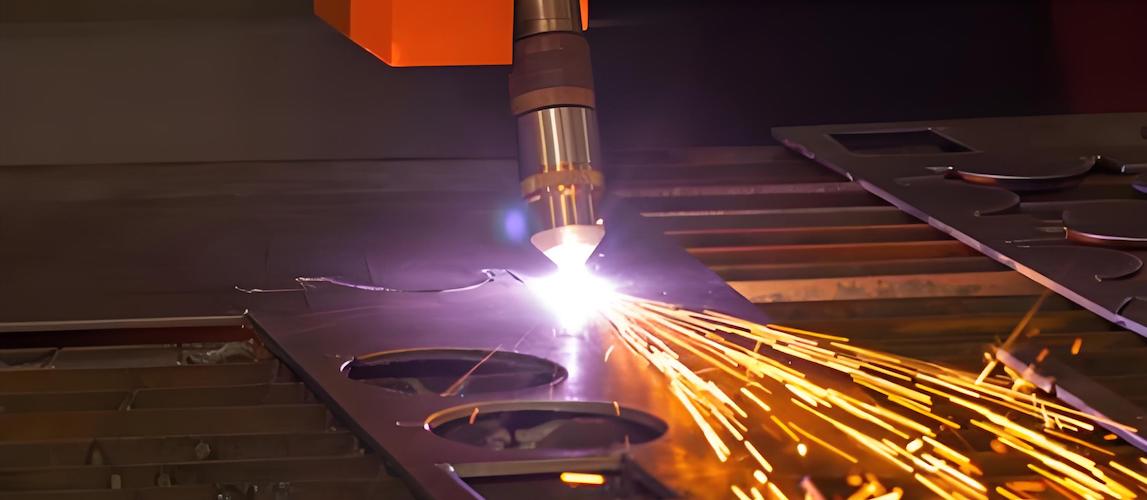

Plasma cutting is a process that uses a high-velocity jet of ionized gas (plasma) to cut through electrically conductive materials. The plasma is created by passing an electric current through a gas, which ionizes it and creates a conductive path. This method is particularly effective for cutting thicker materials and is widely used in various industrial applications.
The plasma cutting process involves the following steps:
Gas Ionization: A gas, typically air, is ionized by an electric arc, creating plasma. The ionization process transforms the gas into a state that can conduct electricity, allowing for the creation of a high-temperature jet.
Jet Formation: The plasma is forced through a nozzle, creating a high-velocity jet. This jet can reach temperatures exceeding 20,000 degrees Fahrenheit, enabling it to cut through thick metal with ease.
Material Cutting: The jet is directed onto the sheet metal, melting the material and blowing it away to create a cut. The speed and force of the plasma jet allow for rapid cutting, making it suitable for high-volume production environments.
Plasma cutting has several notable benefits:
Speed: Plasma cutting is generally faster than laser cutting, making it suitable for high-volume production. The ability to quickly cut through thick materials can significantly enhance productivity in manufacturing settings.
Material Thickness: It can effectively cut through thicker materials, often up to several inches, depending on the equipment. This capability makes plasma cutting a preferred choice for industries that work with heavy metals, such as construction and shipbuilding.
Cost-Effectiveness: Plasma cutting machines are typically less expensive than laser cutting systems, making them more accessible for small to medium-sized operations. The lower initial investment can be a significant advantage for businesses looking to expand their capabilities without incurring substantial costs.
However, plasma cutting also has its drawbacks:
Edge Quality: The cut edges may require additional finishing processes, as plasma cutting can produce a rougher edge compared to laser cutting. This roughness can be problematic in applications where aesthetics or tight tolerances are essential.
Heat Affected Zone: The heat generated during plasma cutting can lead to a larger heat affected zone, potentially causing warping or distortion in the material. This characteristic can be a concern in precision applications where maintaining the original dimensions is critical.
When choosing between laser cutting and plasma cutting for sheet metal fabrication, several factors should be considered.
Laser cutting excels in precision and quality, making it the preferred choice for applications requiring intricate designs and tight tolerances. The minimal heat affected zone also contributes to a cleaner finish, which is essential in industries such as aerospace and electronics. In contrast, plasma cutting may produce rougher edges and a larger heat affected zone, which can necessitate additional finishing work, increasing overall production time and costs.
Plasma cutting is generally faster than laser cutting, particularly for thicker materials. This speed can be advantageous in high-volume production environments where time is a critical factor in meeting deadlines. However, for projects requiring high precision, the slower speed of laser cutting may be justified, as the quality of the cut can reduce the need for subsequent finishing processes.
Laser cutting is versatile and can handle a variety of materials, including non-conductive ones. This capability allows manufacturers to use laser cutting for a broader range of applications. Plasma cutting, on the other hand, is limited to electrically conductive materials, which may restrict its application in certain projects. Understanding the material requirements of a project is essential in selecting the appropriate cutting method.
The initial investment for laser cutting equipment is typically higher than that for plasma cutting machines. However, the long-term operational costs, including maintenance and energy consumption, should also be considered when evaluating the overall cost-effectiveness of each method. Businesses must weigh the benefits of precision and quality against the initial and ongoing costs to determine the best approach for their specific needs.
Both laser cutting and plasma cutting have distinct applications in sheet metal fabrication, depending on the specific requirements of the project.
Laser cutting is commonly used in industries where precision is paramount, such as:
Aerospace: For cutting complex shapes in lightweight materials, laser cutting allows for the creation of intricate components that meet stringent safety and performance standards.
Automotive: For producing intricate components and parts, the automotive industry relies on laser cutting for everything from body panels to engine components, where precision and fit are critical.
Electronics: For creating detailed circuit boards and enclosures, laser cutting enables the production of small, precise parts that are essential for modern electronic devices.
Plasma cutting is often employed in applications where speed and material thickness are critical, such as:
Construction: For cutting structural steel and heavy plates, plasma cutting is widely used in the construction industry to fabricate beams, columns, and other structural elements quickly and efficiently.
Shipbuilding: For fabricating large metal components, plasma cutting is essential in shipbuilding, where thick steel plates must be cut and shaped to create hulls and other structures.
Metal Art: For creating artistic designs and sculptures from thicker materials, plasma cutting allows artists and fabricators to produce unique pieces with intricate designs that would be challenging to achieve with other methods.
Both laser cutting and plasma cutting are valuable techniques in sheet metal fabrication, each with its unique advantages and applications. Laser cutting is ideal for projects requiring high precision and intricate designs, while plasma cutting excels in speed and the ability to handle thicker materials. The choice between these two methods ultimately depends on the specific requirements of the project, including material type, thickness, precision needs, and budget constraints. Understanding the differences between these cutting techniques can help manufacturers make informed decisions that enhance their production processes and product quality. By carefully evaluating the strengths and weaknesses of each method, businesses can optimize their operations and achieve better results in their sheet metal fabrication projects.
Laser cutting can effectively cut a wide range of materials, including metals (such as steel, aluminum, and brass), plastics, wood, and even some fabrics. Plasma cutting, on the other hand, is primarily used for electrically conductive materials, such as steel, stainless steel, and aluminum. It is less effective on non-conductive materials.
Laser cutting typically involves a higher initial investment due to the cost of the equipment and maintenance. However, it offers high precision and lower operational costs in the long run for projects requiring intricate designs. Plasma cutting machines are generally less expensive and have lower initial costs, making them more accessible for small to medium-sized operations, especially for thicker materials.
Laser cutting is widely used in industries such as aerospace, automotive, electronics, and medical device manufacturing, where precision and intricate designs are crucial. Plasma cutting is commonly employed in construction, shipbuilding, and metal art, where speed and the ability to cut thicker materials are more important.
Laser cutting is most effective for materials up to about 1 inch thick, although advancements in technology have allowed for cutting thicker materials in some cases. Plasma cutting can handle much thicker materials, often cutting through steel plates that are several inches thick, depending on the specific plasma cutting equipment used.
Laser cutting generally produces cleaner, more precise cuts with minimal heat affected zones, resulting in less distortion and a smoother finish. Plasma cutting, while faster, can produce rougher edges and a larger heat affected zone, which may require additional finishing processes to achieve the desired quality.
