Sheet metal fabrication is a crucial process in various industries, including automotive, aerospace, and construction. One of the fundamental operations in sheet metal fabrication is bending, which significantly influences the material's properties. This article explores how bending affects sheet metal, focusing on its mechanical properties, the bending process, and the implications for fabrication.
Sheet metal is a flat piece of metal that has been processed into thin, flat pieces. It is available in various materials, including steel, aluminum, copper, and brass. The thickness of sheet metal can vary, typically ranging from 0.006 inches to 0.25 inches. The properties of sheet metal, such as strength, ductility, and malleability, are essential for determining its suitability for specific applications. The versatility of sheet metal allows it to be used in a wide range of products, from simple brackets to complex automotive body panels. Its ability to be easily shaped and formed makes it a preferred choice in manufacturing.
Steel: Known for its strength and durability, steel is widely used in construction and manufacturing. It can be alloyed with other elements to enhance its properties, such as corrosion resistance or weldability, making it suitable for various applications, including structural components and machinery parts.
Aluminum: Lightweight and resistant to corrosion, aluminum is often used in aerospace and automotive applications. Its excellent strength-to-weight ratio allows for the creation of lightweight structures without compromising strength, which is critical in industries where weight savings can lead to improved fuel efficiency.
Copper: Excellent electrical conductivity makes copper ideal for electrical applications. Its malleability allows it to be easily formed into intricate shapes, making it a popular choice for wiring and electronic components.
Brass: Known for its machinability and corrosion resistance, brass is commonly used in plumbing and electrical fittings. Its aesthetic appeal and ability to resist tarnishing make it a favored material for decorative applications as well.

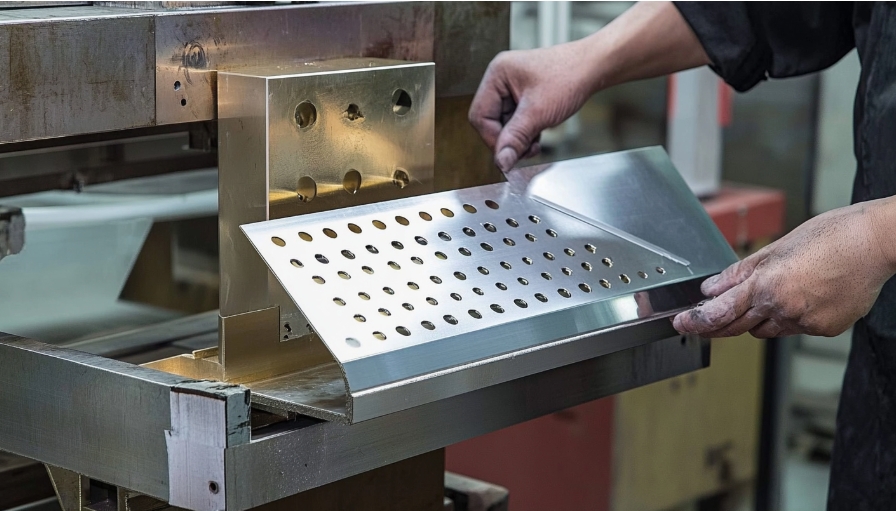

Bending is a manufacturing process that involves deforming sheet metal along a straight axis. This process can create various shapes, including angles, channels, and flanges. Bending can be performed using different methods, such as air bending, bottoming, and coining, each affecting the material properties differently. The choice of bending method can significantly impact the final product's quality and performance, making it essential for fabricators to select the appropriate technique based on the specific requirements of the project.
Air Bending: This method uses a punch and die to create a bend without forcing the material against the die. It allows for greater flexibility in the bending angle and is often used for producing parts with varying angles. The ability to adjust the bend angle during the process can lead to increased efficiency and reduced waste.
Bottoming: In this technique, the material is pressed against the die, creating a more precise bend but requiring more force. Bottoming is often used when tight tolerances are necessary, as it can produce sharper bends with minimal springback, ensuring that the final product meets exact specifications.
Coining: This is a more aggressive method where the material is forced into the die, resulting in a very accurate bend but potentially leading to more significant material thinning. Coining is typically used for applications where high precision is required, such as in the production of intricate components or when working with harder materials.
Bending affects several mechanical properties of sheet metal, including:
Bending can increase the strength of sheet metal due to the work hardening effect. As the material is deformed, dislocations within the metal's crystal structure increase, leading to higher yield strength. However, excessive bending can lead to material failure. Understanding the balance between achieving the desired shape and maintaining the material's integrity is crucial for successful fabrication.
Ductility refers to the ability of a material to deform under tensile stress. Bending can reduce ductility, especially if the bend radius is too small. This reduction occurs because the material experiences both tensile and compressive stresses, which can lead to cracking. It is essential for fabricators to consider the material's ductility when designing parts to ensure they can withstand the bending process without failure.
Repeated bending can lead to fatigue failure, where the material weakens over time due to cyclic loading. Understanding the fatigue properties of the material is crucial for applications where the sheet metal will undergo repeated bending. Engineers must account for the expected loading conditions and design components that can endure these stresses over their intended lifespan.
During the bending process, the material experiences changes in thickness. The outer side of the bend undergoes tension, leading to thinning, while the inner side experiences compression, which can cause thickening. This phenomenon is critical in determining the final properties of the bent sheet metal. Fabricators must carefully calculate the bend allowance and consider the effects of thinning and thickening to ensure that the final product meets the required specifications.
The inherent properties of the sheet metal, such as its composition, thickness, and grain structure, significantly influence how it behaves during bending. For instance, metals with a fine grain structure tend to bend more easily and uniformly than those with a coarse grain structure. Additionally, the presence of impurities or variations in the material can lead to inconsistencies in the bending process, affecting the overall quality of the final product.
The radius of the bend is a crucial factor. A smaller bend radius increases the likelihood of cracking and reduces the material's overall strength. Conversely, a larger bend radius can enhance the material's durability and performance. Selecting the appropriate bend radius is essential for achieving the desired shape while maintaining the integrity of the material.
Temperature can also affect the bending process. Heating the metal can increase its ductility, allowing for more complex shapes to be formed without cracking. However, excessive heat can lead to other issues, such as loss of strength. Understanding the thermal properties of the material and the effects of temperature on its behavior during bending is vital for successful fabrication.
In the automotive sector, bending is used to create various components, including chassis parts, brackets, and body panels. The ability to bend sheet metal allows for lightweight designs that maintain structural integrity. Innovations in bending techniques have enabled manufacturers to produce more complex shapes, contributing to improved aerodynamics and fuel efficiency in modern vehicles.
Bending is critical in aerospace applications, where precision and weight reduction are paramount. Components such as wing structures and fuselage sections often require intricate bending processes to achieve the desired shapes. The aerospace industry demands high-quality standards, and advancements in bending technology have allowed for the production of lightweight yet strong components that meet stringent safety and performance requirements.
Bending is used to fabricate structural elements like beams and columns. The bending process allows for the creation of strong, lightweight components that can support significant loads. As construction techniques evolve, the demand for innovative bending solutions continues to grow, enabling the development of more efficient and sustainable building practices.
Bending is a vital process in sheet metal fabrication that significantly affects the material's properties. Understanding how bending influences strength, ductility, and fatigue resistance is essential for engineers and fabricators. By considering factors such as material properties, bending radius, and temperature, manufacturers can optimize the bending process to achieve the desired outcomes in various applications. As technology advances, the techniques and tools used in sheet metal bending will continue to evolve, enhancing the capabilities of this essential manufacturing process. The future of sheet metal fabrication will likely see even more innovative approaches to bending, further expanding the possibilities for design and functionality in numerous industries.
The primary purpose of bending in sheet metal fabrication is to create specific shapes and angles in the material, allowing it to fit into various applications, such as structural components, enclosures, and brackets. Bending enables manufacturers to produce complex geometries that enhance the functionality and aesthetics of the final product.
The bending radius significantly affects the quality of the bend. A smaller bending radius can lead to increased stress concentrations, resulting in cracking or failure of the material. Conversely, a larger bending radius reduces the risk of cracking and maintains the material's integrity, leading to a smoother and more uniform bend.
Common methods for bending sheet metal include air bending, bottoming, and coining. Air bending allows for flexibility in the bending angle, bottoming provides precise bends with minimal springback, and coining offers high accuracy for intricate shapes but may cause more significant material thinning.
Bending can negatively impact the fatigue resistance of sheet metal, especially if the material is subjected to repeated bending cycles. Over time, the material may develop micro-cracks due to cyclic loading, leading to fatigue failure. Understanding the fatigue properties of the material is essential for applications where repeated bending occurs.
When selecting sheet metal for bending, factors to consider include the material's composition, thickness, ductility, and grain structure. Additionally, the intended application, required bend radius, and the specific bending method to be used should also be taken into account to ensure optimal performance and quality of the final product.
