3D printing, also known as additive manufacturing, has revolutionized the way we create objects, from prototypes to final products. The technology encompasses various methods, each with its unique characteristics that significantly influence print quality. This article explores the different 3D printing technologies, their impact on print quality, and the factors that contribute to the overall effectiveness of each method.
3D printing technologies can be broadly categorized into several types, including Fused Deposition Modeling (FDM), Stereolithography (SLA), and Selective Laser Sintering (SLS). Each of these methods employs different techniques to build objects layer by layer, leading to variations in print quality. Understanding these technologies is crucial for selecting the right method for specific applications, whether for rapid prototyping, manufacturing, or artistic endeavors.

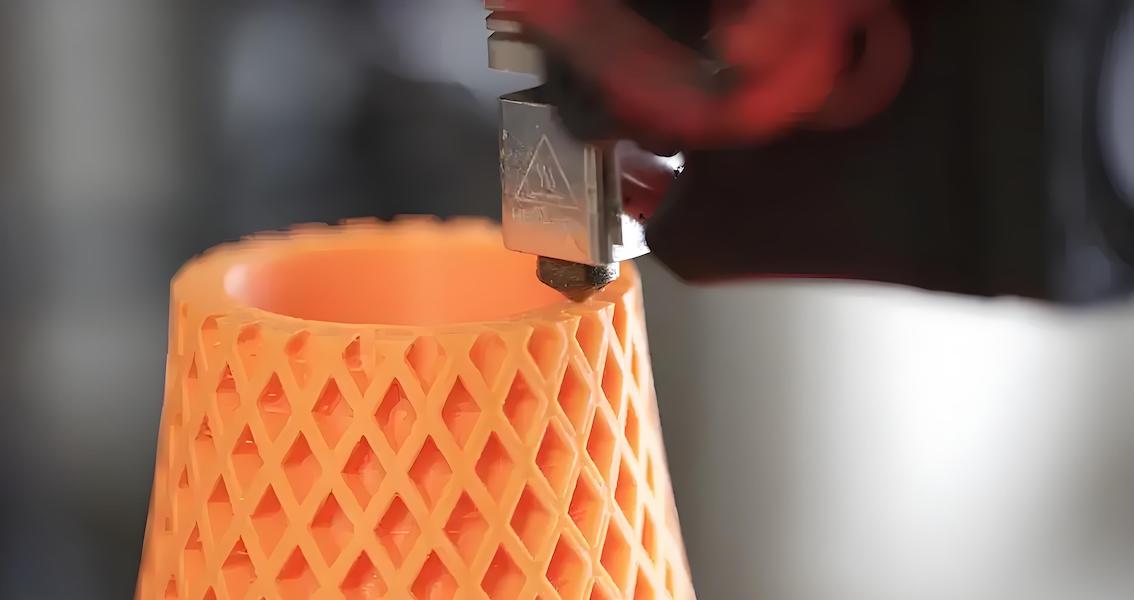

FDM is one of the most common 3D printing technologies. It works by extruding thermoplastic filament through a heated nozzle, which melts the material and deposits it layer by layer to form the desired object. This method is widely used in both industrial and consumer applications due to its accessibility and ease of use.
Cost-Effective: FDM printers are generally more affordable than other types, making them accessible for hobbyists and small businesses. The lower initial investment allows users to experiment with 3D printing without significant financial risk.
Material Variety: A wide range of thermoplastic materials can be used, including PLA, ABS, and PETG, each offering different properties. This versatility enables users to select materials based on specific requirements, such as strength, flexibility, or heat resistance.
Surface Finish: FDM prints often exhibit visible layer lines, which can affect the aesthetic quality of the final product. This characteristic may not be suitable for applications where a smooth finish is essential, such as in consumer products or artistic pieces.
Dimensional Accuracy: The accuracy of FDM prints can be influenced by factors such as nozzle diameter, layer height, and print speed, leading to potential discrepancies in the final dimensions. Users must carefully calibrate their printers and choose appropriate settings to minimize these issues.

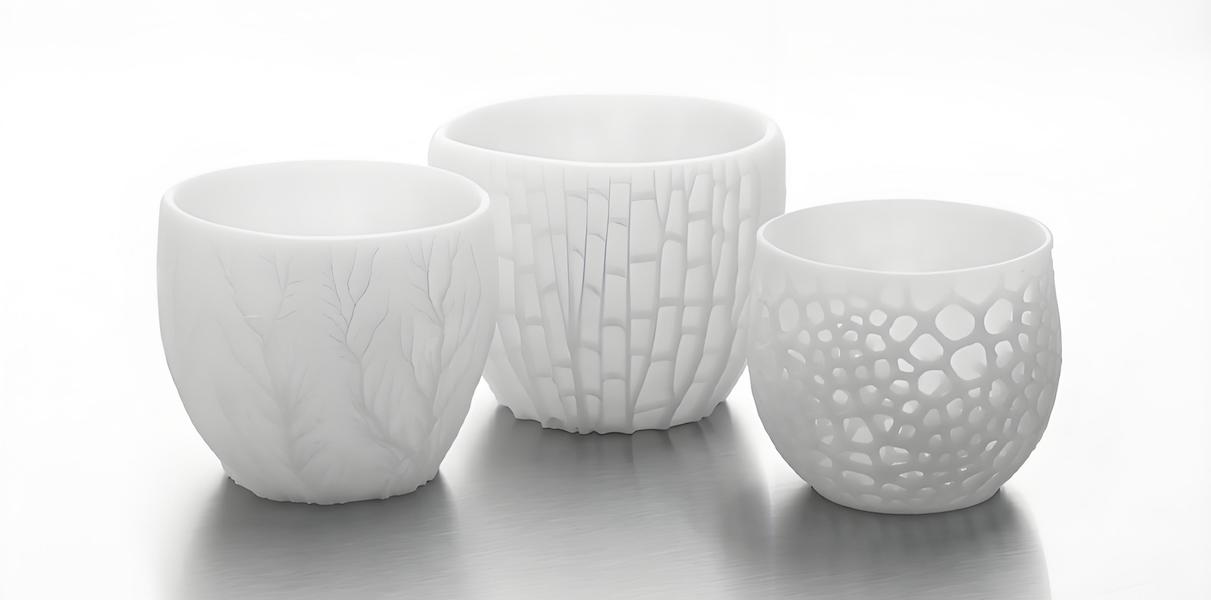

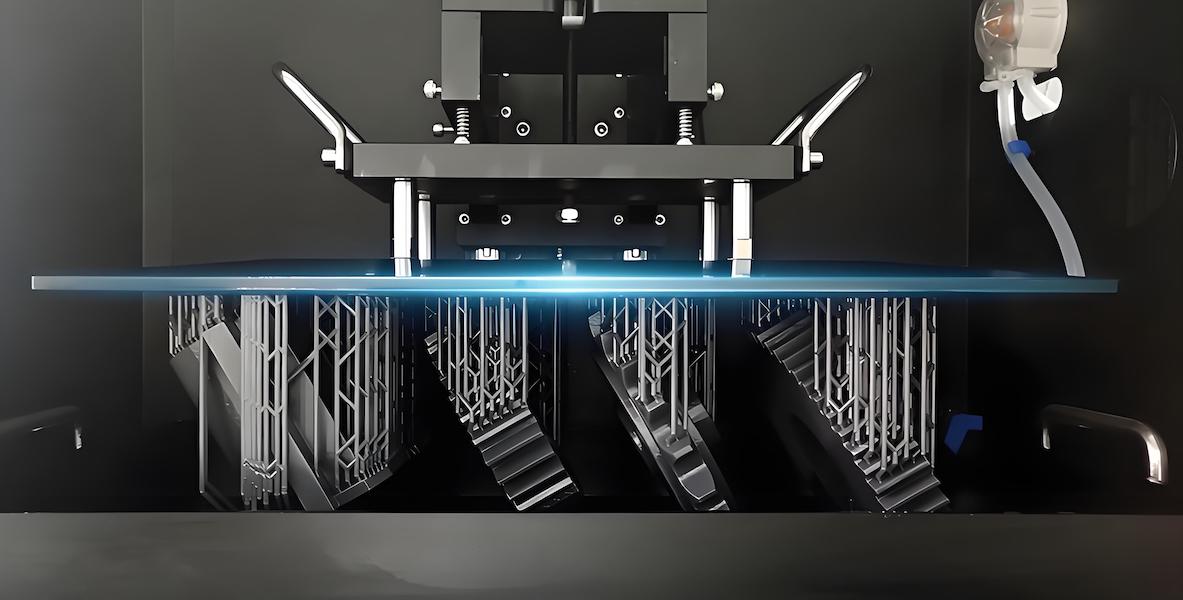

SLA is a resin-based 3D printing technology that uses a laser to cure liquid resin into solid layers. This method is known for producing high-resolution prints with smooth surfaces, making it a popular choice for industries that require intricate designs and fine details.
High Detail: SLA can achieve finer details and smoother finishes compared to FDM, making it ideal for applications requiring intricate designs. This capability is particularly beneficial in fields such as jewelry design, dental applications, and prototyping for consumer electronics.
Dimensional Precision: SLA prints typically have better dimensional accuracy, which is crucial for parts that need to fit together precisely. This precision is essential in industries like aerospace and automotive, where even minor deviations can lead to significant issues.
Material Limitations: The range of materials available for SLA is more limited compared to FDM, and the resins can be more expensive. Additionally, some resins may have specific handling requirements, such as being sensitive to light or requiring special storage conditions.
Post-Processing: SLA prints often require extensive post-processing, including washing and curing, which can add to the overall production time. This additional step can be a drawback for users looking for a quick turnaround on their projects.

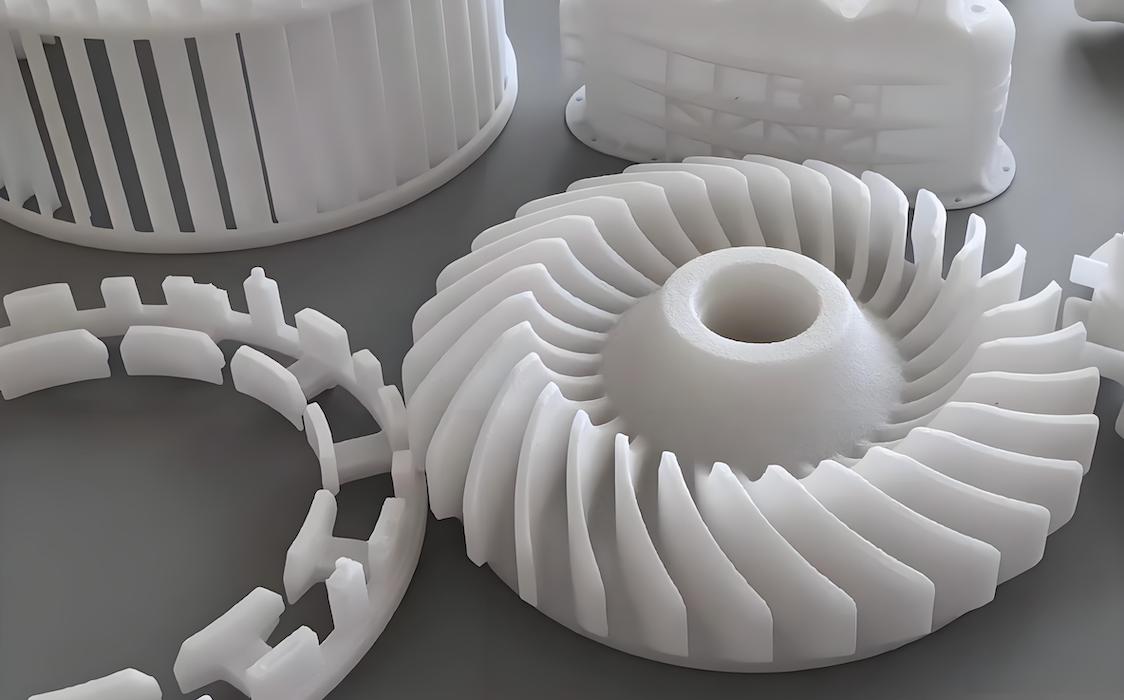

SLS is a powder-based 3D printing technology that uses a laser to fuse powdered material, layer by layer, into a solid object. This method is particularly popular in industrial applications due to its ability to produce strong and complex parts.
Complex Geometries: SLS can create complex shapes and internal structures that are difficult or impossible to achieve with other methods. This capability allows for innovative designs that can enhance functionality and reduce material waste.
Material Strength: Parts produced with SLS are often stronger and more durable, making them suitable for functional prototypes and end-use parts. The ability to use materials like nylon and other polymers further enhances the mechanical properties of the final 3D printing products.
Cost: SLS printers and materials tend to be more expensive, which can be a barrier for smaller operations. The higher costs may limit accessibility for hobbyists or small businesses looking to enter the 3D printing market.
Surface Finish: While SLS can produce strong parts, the surface finish may not be as smooth as SLA, often requiring additional finishing processes. This can add time and cost to the production process, especially for applications where aesthetics are important.
The quality of 3D prints is influenced by several factors, regardless of the technology used. Understanding these factors can help users optimize their printing processes and achieve the best possible results.
The choice of material plays a crucial role in determining print quality. Different materials have varying properties, such as strength, flexibility, and thermal resistance. For instance, PLA is easy to print and provides good surface quality, while ABS offers better durability but can be more challenging to work with due to warping. Users must consider the specific requirements of their projects when selecting materials, as this decision can significantly impact the final product's performance and appearance.
Proper calibration of the 3D printer is essential for achieving high-quality prints. This includes setting the correct nozzle height, temperature, and print speed. Inaccurate calibration can lead to issues such as poor adhesion, layer separation, and dimensional inaccuracies. Regular maintenance and calibration checks can help ensure consistent print quality over time, allowing users to produce reliable results with each print.
The environment in which the 3D printer operates can also affect print quality. Factors such as temperature, humidity, and airflow can influence the behavior of the printing material. For example, drafts can cause warping in prints, while high humidity can affect the moisture content of filament. Users should strive to maintain a stable environment for their printers, which may involve using enclosures or climate control measures to mitigate external influences.
The slicing software used to prepare the 3D model for printing has a significant impact on the final output. Settings such as layer height, infill density, and print speed can be adjusted to optimize print quality. For instance, a lower layer height can improve detail but may increase print time. Users should experiment with different settings to find the optimal balance between print speed and quality, tailoring their approach to the specific requirements of each project.
The impact of different 3D printing technologies on print quality is significant and multifaceted. FDM, SLA, and SLS each offer unique advantages and limitations that cater to various applications and user needs. By understanding the characteristics of each technology and the factors influencing print quality, users can make informed decisions to achieve the best possible results in their 3D printing endeavors. As the technology continues to evolve, advancements in materials and processes will further enhance the capabilities and quality of 3D printing, opening new possibilities for innovation across industries. The future of 3D printing holds exciting potential, with ongoing research and development paving the way for even more sophisticated applications and improved print quality.
The primary difference lies in the materials and processes used. FDM (Fused Deposition Modeling) uses thermoplastic filaments that are melted and extruded layer by layer, while SLA (Stereolithography) uses liquid resin that is cured by a laser to form solid layers. This results in SLA typically achieving higher detail and smoother finishes compared to FDM.
Material choice significantly impacts print quality as different materials have varying properties such as strength, flexibility, and thermal resistance. For example, PLA is easy to print and provides good surface quality, while ABS is more durable but can warp during printing. Selecting the right material based on the application requirements is crucial for achieving optimal results.
Improper printer calibration can lead to several issues, including poor adhesion of layers, layer separation, dimensional inaccuracies, and inconsistent surface finishes. Regular calibration and maintenance are essential to ensure that the printer operates correctly and produces high-quality prints.
Post-processing is important because SLA prints often require additional steps such as washing and curing to remove excess resin and ensure the final product achieves its intended strength and finish. This process can enhance the aesthetic quality and mechanical properties of the print, making it suitable for its intended use.
Environmental conditions such as temperature, humidity, and airflow can significantly influence 3D printing outcomes. For instance, high humidity can affect filament moisture content, leading to poor print quality, while drafts can cause warping. Maintaining a stable environment for the printer can help mitigate these issues and improve print consistency.
